IEI Technology WSB-9454 User Manual

WSB-9454 CPU Card
Page 73

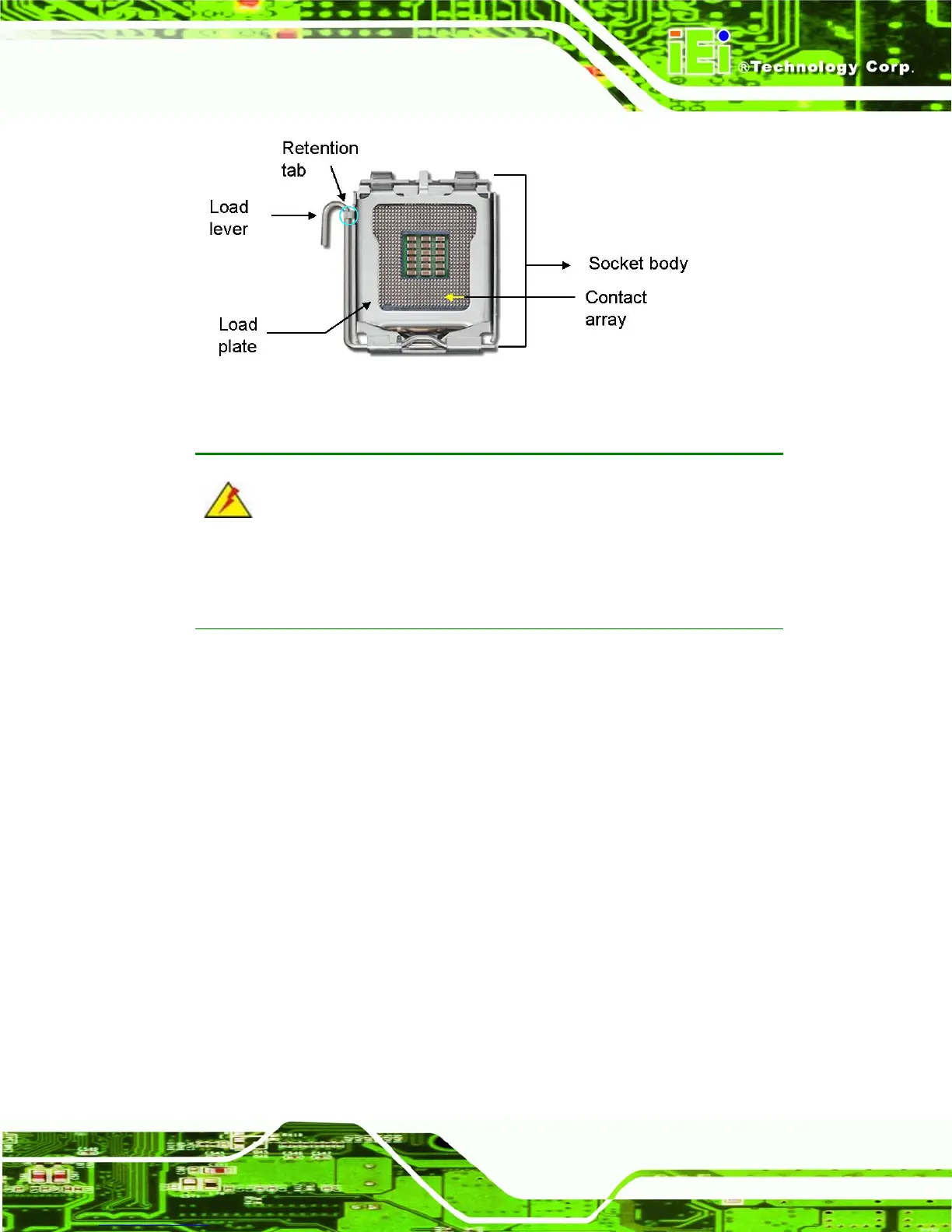

Figure 4-1: Intel
®
LGA775 Socket
WARNING:
When handling the CPU, only hold it on the sides. DO NOT touch the pins
at the bottom of the CPU.
To install Socket LGA775 CPU onto the WSB-9454, follow the steps below:
Step 1: Remove the protective cover. Remove the black protective cover by prying it
off the load plate. To remove the protective cover, locate the “REMOVE” sign
and use the fingernail to pry the protective cover off. (See Figure 4-2)
