WSB-9454 CPU Card
Page 91
4.6.1 Clear CMOS Jumper
Jumper Label: J_CMOS1
Jumper Type:
3-pin header
Jumper Settings: See Table 4-3
Jumper Location: See Figure 4-14
If the CPU card fails to boot due to improper BIOS settings, use this jumper to clear the
CMOS data and reset the system BIOS information. To do this, use the jumper cap to
close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1 and 2.
If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault
may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the
following:
Enter the correct CMOS setting
Load Optimal Defaults
Load Failsafe Defaults.
After having done one of the above, save the changes and exit the CMOS Setup menu.

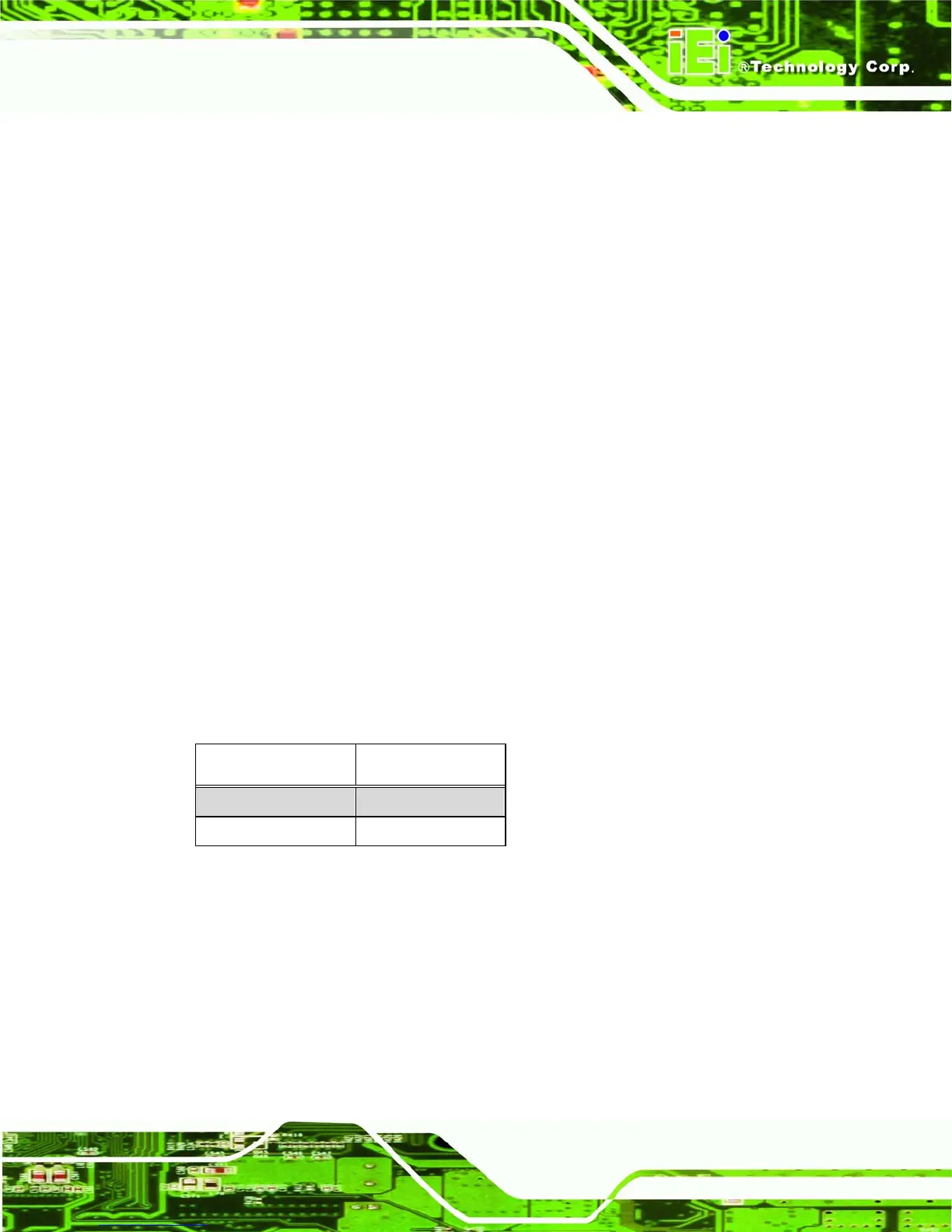

J_CMOS1 DESCRIPTION
Short 1-2 (Default) Normal Operation
Short 2-3 Clear CMOS Setup
Table 4-3: Clear CMOS Jumper Settings
