IEI Technology WSB-9454 User Manual

WSB-9454 CPU Card
Page 66
3.3.4 VGA connector
CN Label: VGA1
CN Type:
HD-D-sub 15 female connector
CN Location: See Figure 3-17 (labeled number 4)
CN Pinouts: See Table 3-23
A 15-pin VGA connector connects to standard displays.

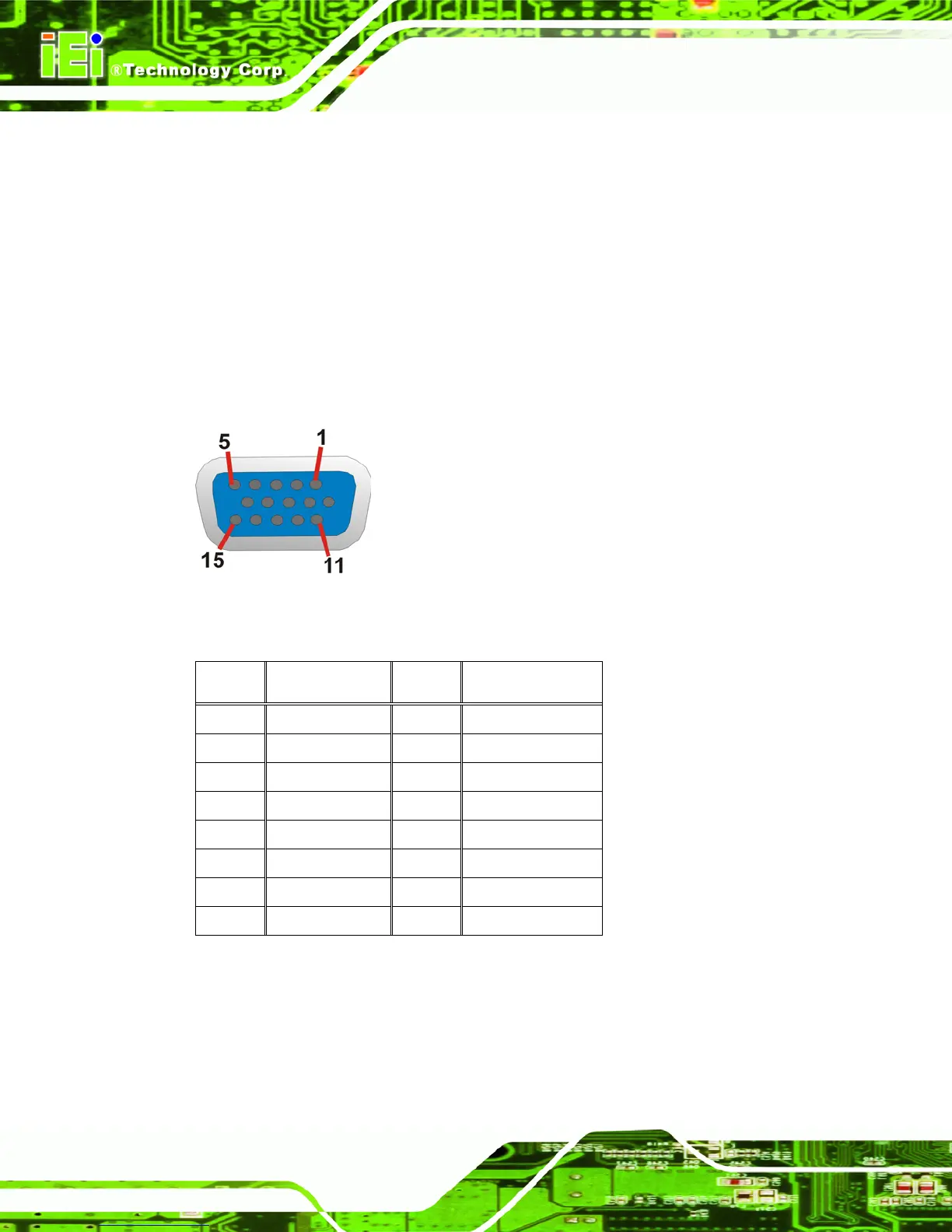

Figure 3-20: VGA Connector
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 RED 2 GREEN
3 BLUE 4 NC
5 GND 6 GND
7 GND 8 GND
9 VCC 10 GND
11 NC 12 DDCDAT
13 HSYNC 14 VSYNC
15 DDCCLK
Table 3-23: VGA Connector Pinouts
