WSB-9454 CPU Card
Page 200
E.2 Physical Connection

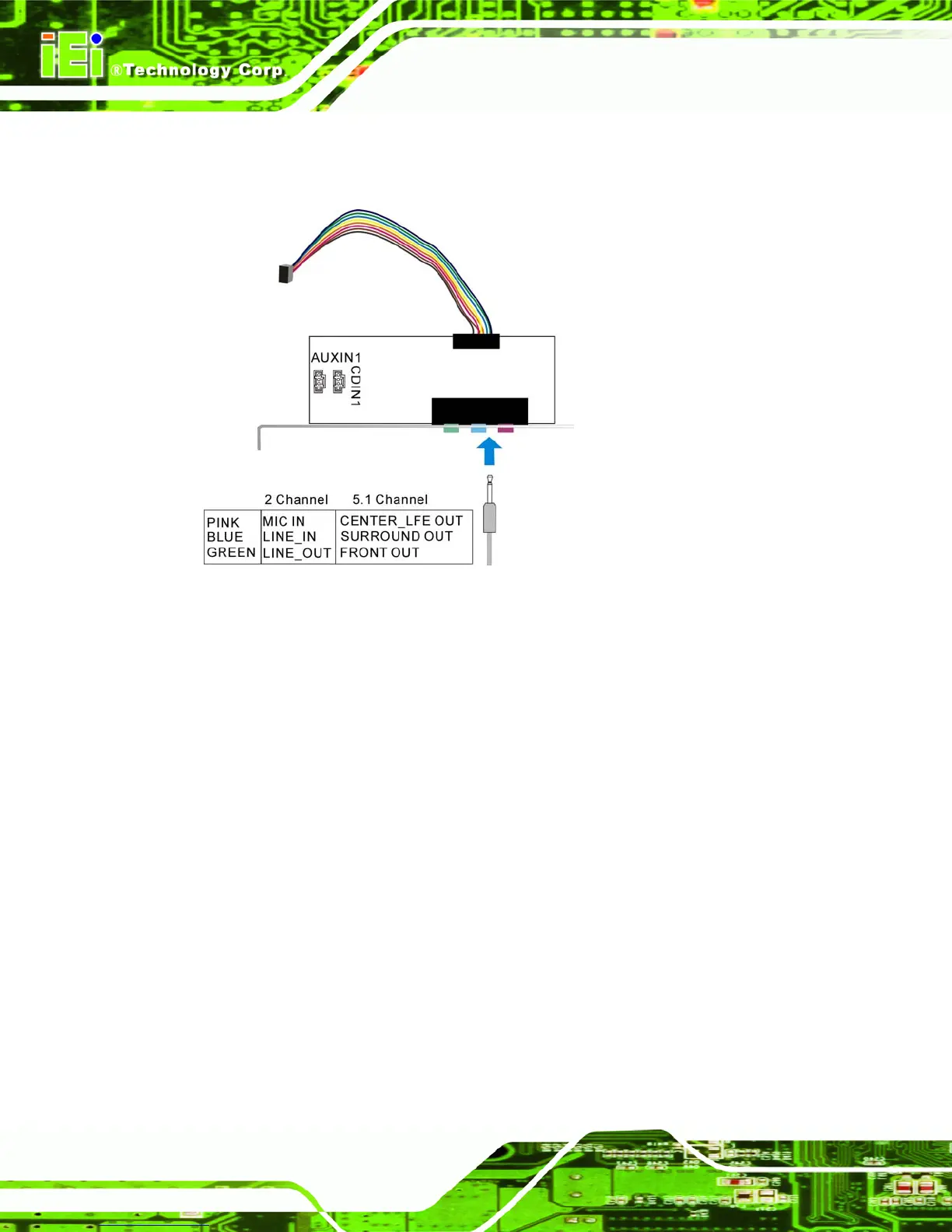

Figure E-2: Audio Kit Connectors
The audio kit comes with a PCI slot bracket for the installation into a PC case or
rackmount chassis. Connect the 10-pin header to the J_AUDIO1 header as shown
above, and if necessary, connect the CDIN1 and AUXIN1 to optical drives or other audio
sources, e.g., an MPEG card, using a 4-pin cable. Note that depending on the devices
you connect to, the phone jacks have different functions with different audio installation
modes (2 channel or 5.1 channel modes).
E.3 Driver Installation
The driver installation has been described in Chapter 6.
After reboot, you should be able to find the sound effect configuration utility in Windows
Control Panel (see Figure E-3); and if peripheral speakers have been properly connected,
hear the sound effects.
