IEI Technology WSB-9454 User Manual

WSB-9454 CPU Card
Page 78

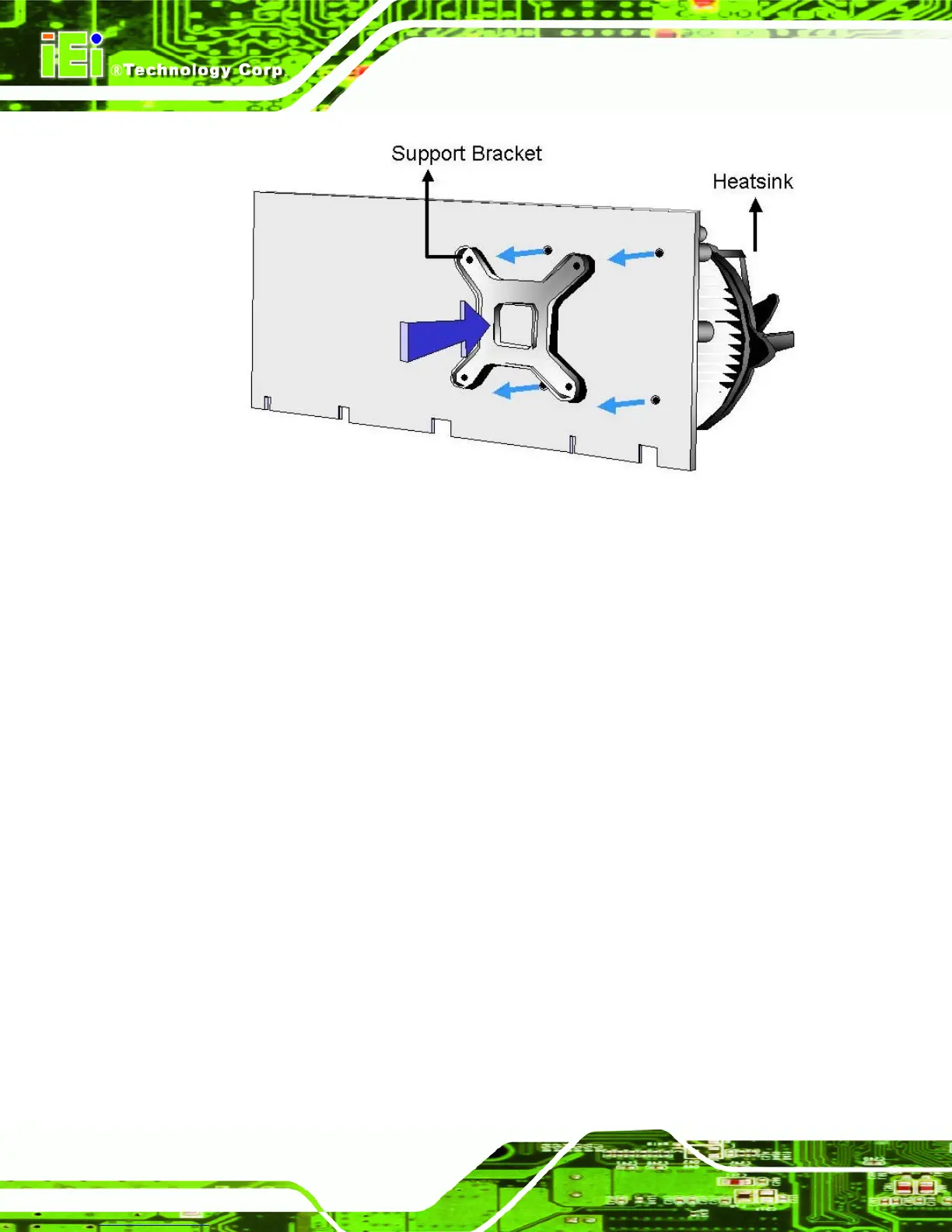

Figure 4-6: Securing the Heat sink to the PCB
Step 5: Tighten the screws. Use a screwdriver to tighten the four screws. Tighten each
nut a few turns at a time and do not over-tighten the screws.
Step 6: Connect the fan cable. Connect the cooling kit fan cable to the fan connector
on the WSB-9454. Carefully route the cable and avoid heat generating chips
and fan blades.Step 0:
