WSB-9454 CPU Card
Page 41

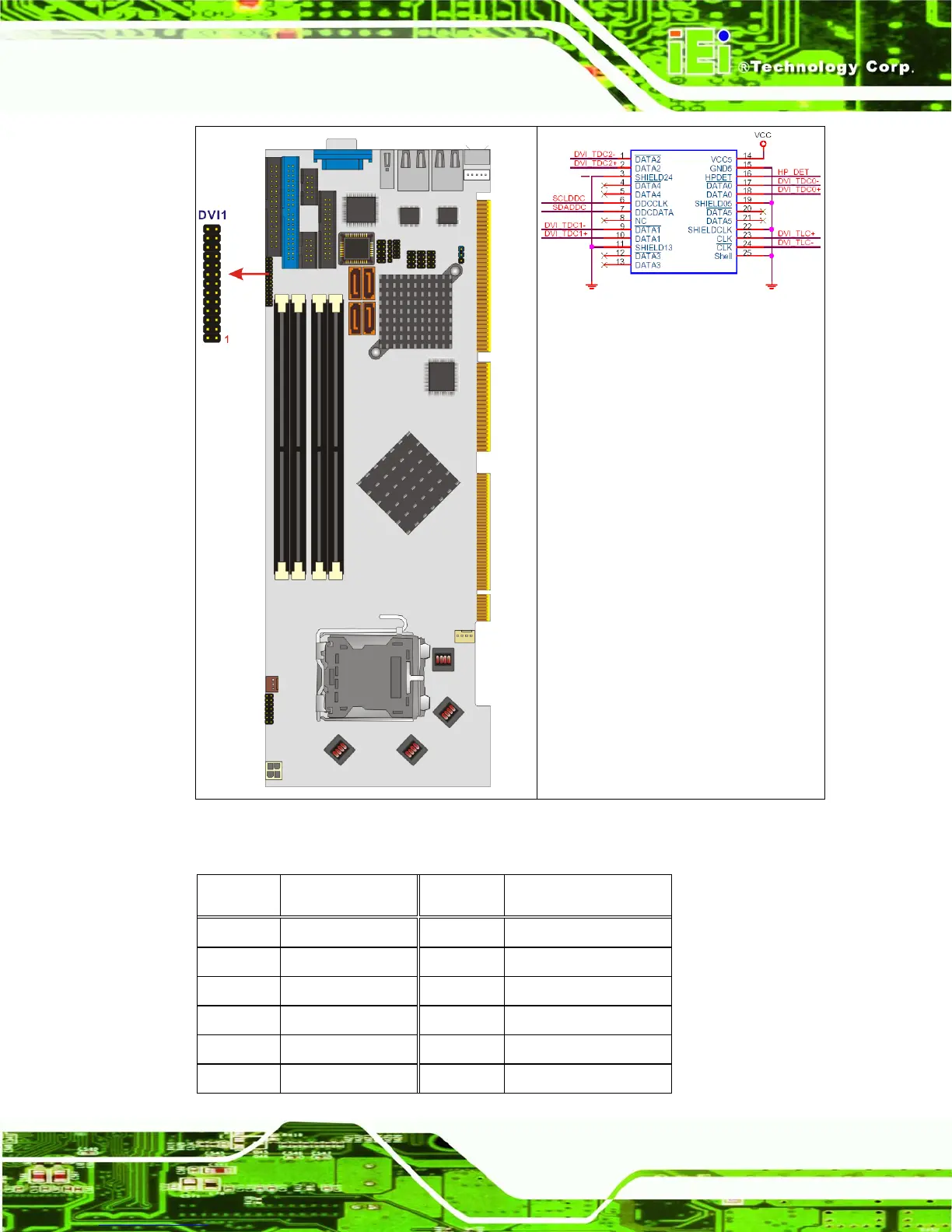

Figure 3-7: DVI Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 Data 2- 14 VCC
2 Data 2+ 15 GND
3 GND 16 Hot Plug Detect.
4 N/C 17 Data 0-
5 N/C 18 Data 0+
6 DDC Clock 19 GND
