WSB-9454 CPU Card
Page 64
STATUS DESCRIPTION STATUS DESCRIPTION
GREEN Activity YELLOW Linked
Table 3-20: RJ-45 Ethernet Connector LEDs
3.3.2 Mini-DIN 6 PS/2 Connector
CN Label: KB_MS1
CN Type:
Mini-DIN 6 PS/2
CN Location: See Figure 3-17 (labeled number 1)
CN Pinouts: See Table 3-21
The WSB-9454CPU card has a mini-DIN 6 PS/2 connector on the mounting bracket for
easy connection to a PS/2 keyboard or PS/2 mouse. The card comes with a cable to
convert the mini-DIN 6 PS/2 into two mini-DIN 6 PS/2 connectors for keyboard and mouse
connection.

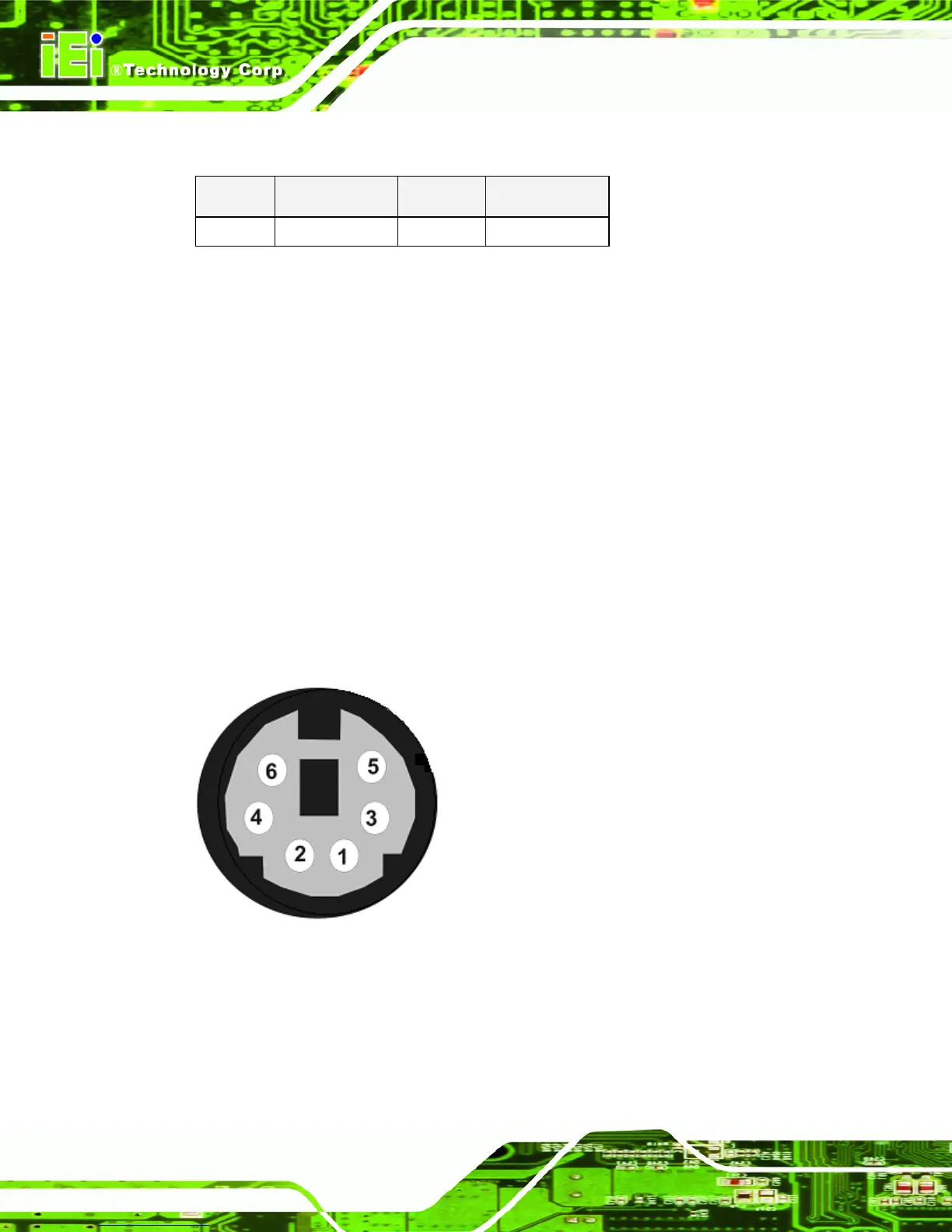

Figure 3-19: Mini-DIN 6 PS/2 Connector
