WSB-9454 CPU Card
Page 58

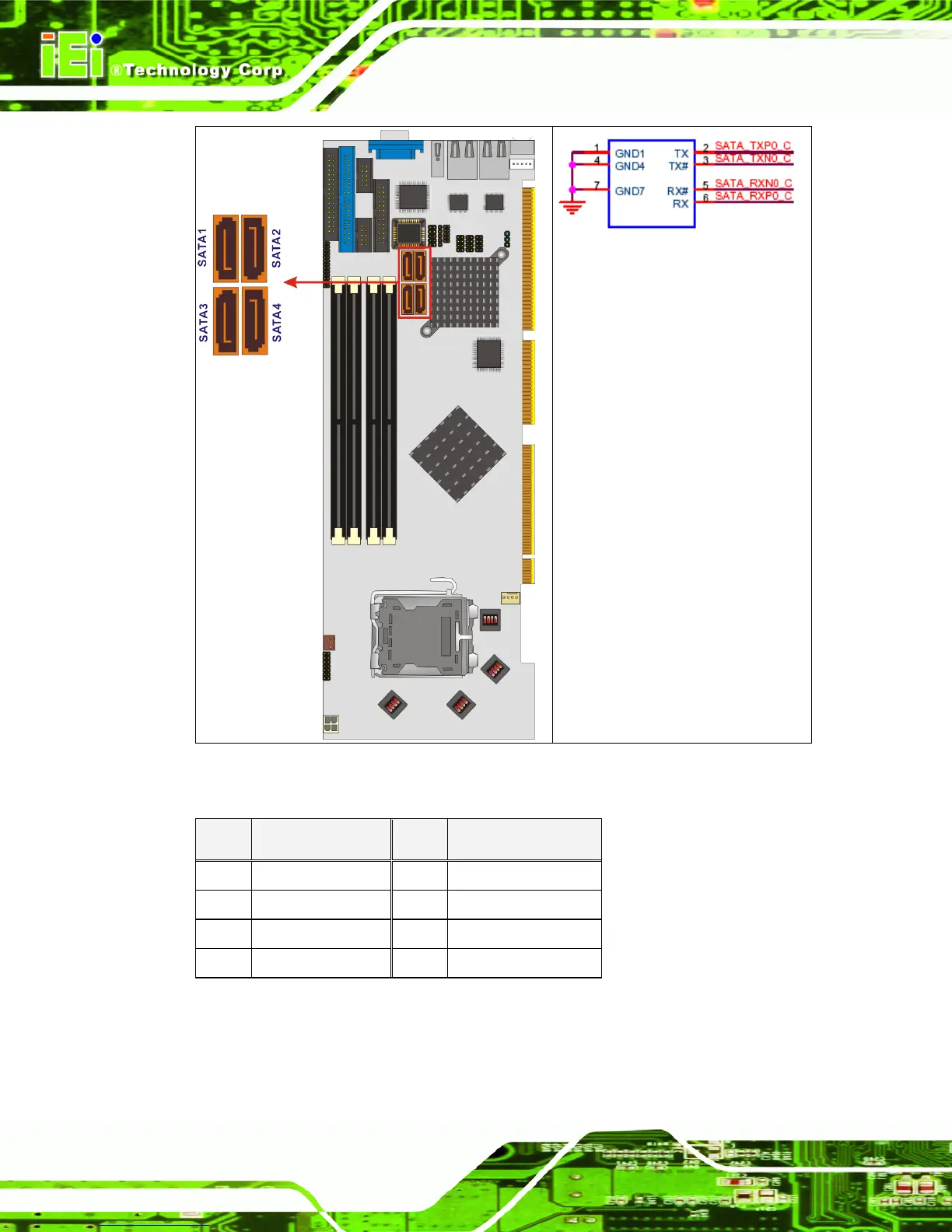

Figure 3-15: SATA Connectors Location
PIN DESCRIPTION PIN DESCRIPTION
1 GND 5 RX-
2 TX+ 6 RX+
3 TX- 7 GND
4 GND 8 N/C
Table 3-17: SATA Connectors Pinouts
