WSB-9454 CPU Card

Page 211

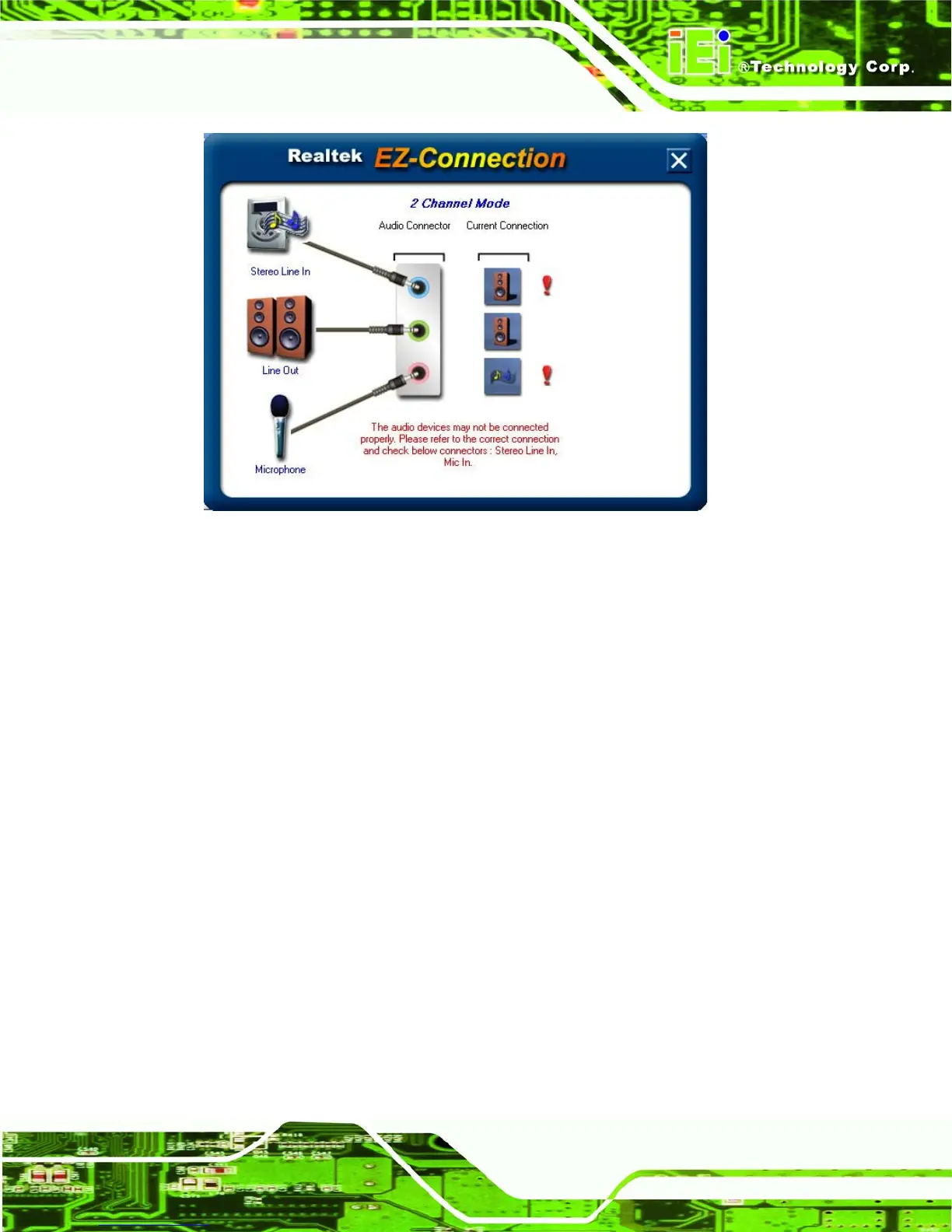

Figure E-13: EX Connection

The “Audio Connector” column shows the settings used in the “Speaker Configuration”

window.

The “Current Connection” column shows the types of devices detected during test. If the

result does not match the physical connection, an exclamation mark will appear. (See

Figure E-14)
