IEMCA VIP 80 - Page 89

27
2
INSTALLATION PROCEDURE
302.061

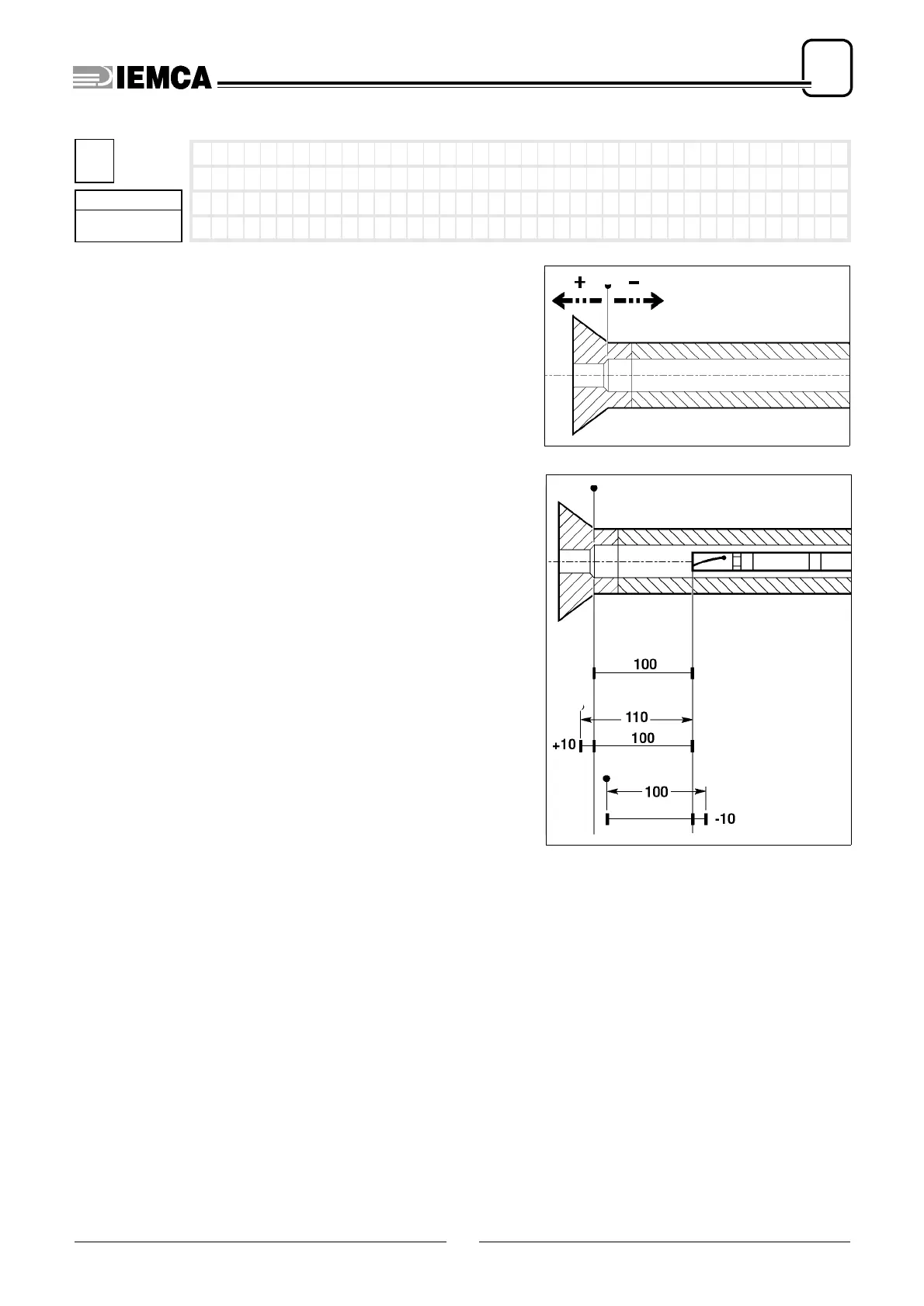

Defines the positive or negative corrections of point
F
(max. bar
pusher feed point).
Application examples:
- it is required when ejecting with the bar pusher (point b,
para-
meter 21
);
- it is required when the lathe collet is replaced with one having
different dimensions.
When the operator corrects the
F
point,
parameter 1
is modified
as shown in the picture; it is then necessary to check and, if re-
quired, correct the value of
parameter 1
.
29
Phase
machining
:>0 (mm)
( inches )
no.29 Max. feeding p
os i t ion modi f icat ion
F
IDM - 61.017 Ec.0
No adjustment
With adjustment +
for ex. +10
With adjustment -
for ex. -10
F
F
IDM - 61.018 Ec.0
F
