Inficon Cygnus 2 User Manual

7 - 1
Cygnus 2 Operating Manual
Chapter 7
Digital I/O
7.1 Digital I/O Screen
The Digital I/O screen is selected by moving the cursor on the Main Menu screen
to Digital I/O and pressing Menu. The I/O Map display for board 1 is shown in
Figure 7-3 on page 7-3. Upon entry the cursor will be placed at the last referenced
output or input number.
7.2 All Input Page

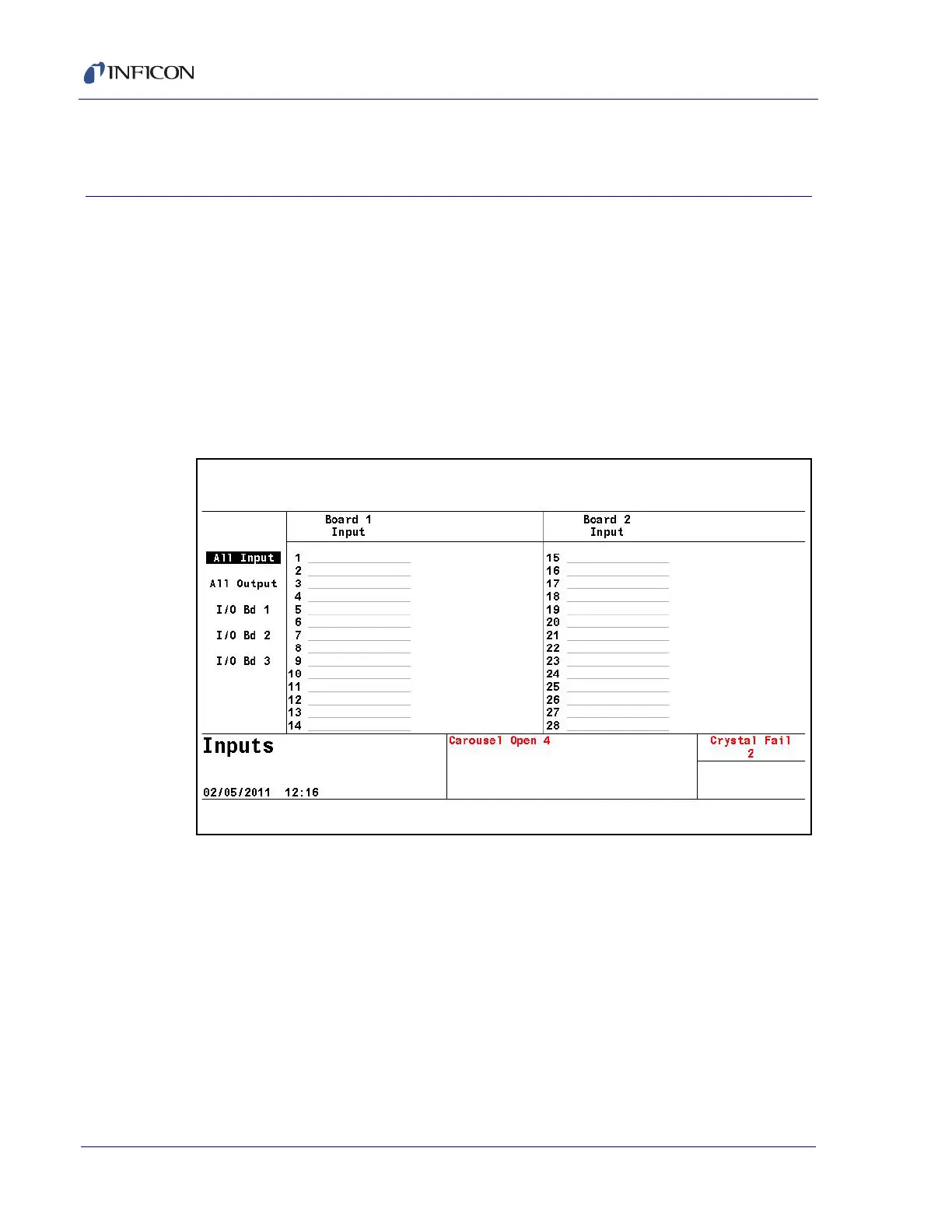

Figure 7-1 All input page
All input names assigned by Cygnus 2 or by the user are shown to facilitate system
diagnosis. Darker font color designates inputs that are currently active.
