Inficon Cygnus 2 User Manual

7 - 3
Cygnus 2 Operating Manual
7.4 I/O Board Page

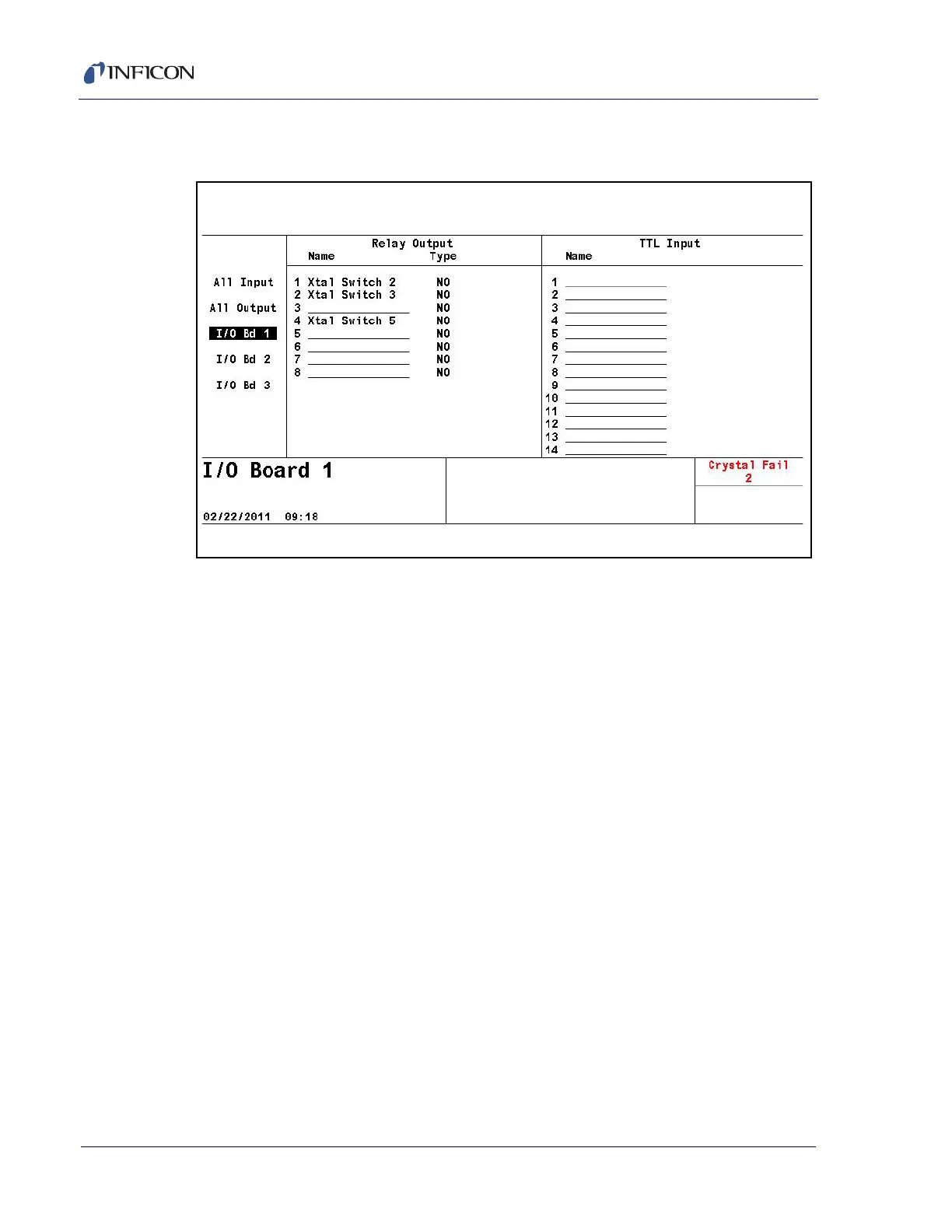

Figure 7-3 I/O map board 1 page
Names, up to 15 characters in length, can be entered by the user for any input or
output unless Cygnus 2 has automatically assigned a name. Names created by
Cygnus 2 cannot be edited. To enter or edit a user name, move the cursor onto the
appropriate input or output and use the keyboard in cell phone fashion to create or
edit the name.
7.4.1 Output Type
Output Types may be defined as normally open (NO) or normally closed (NC).
Relay and TTL output types are changed by positioning the cursor on an output
type and pressing the TOGL key followed by the ENTER key.
