8 - 6
Cygnus 2 Operating Manual

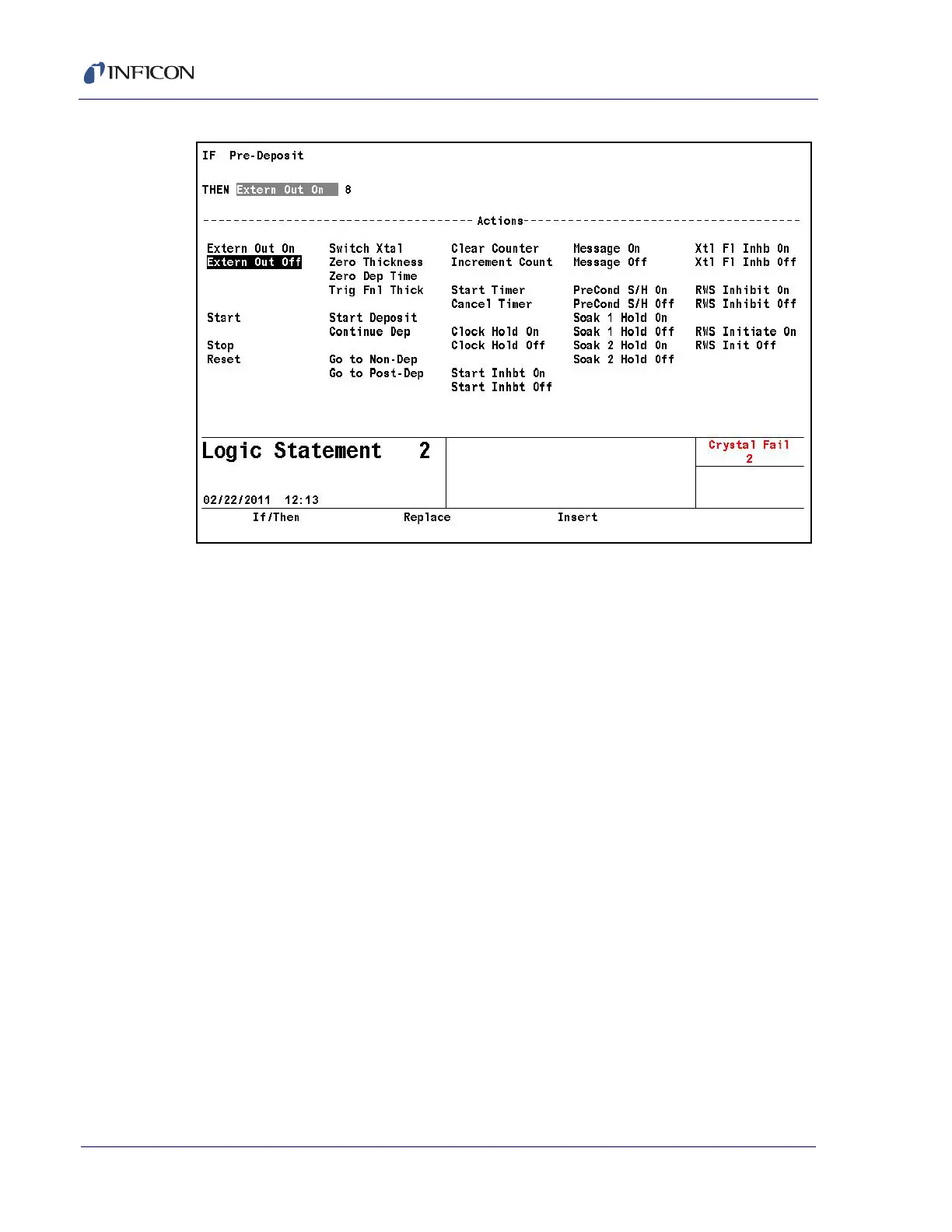

Figure 8-5 Function Keys IF/THEN, REPLACE, INSERT
With the cursor in the lower half of the Event page, the F4 key will carry the Negate
function in addition to the first three shown above.
When moving the cursor from an event or action, the next element is a numeric
field, if required.
A connector field is required between events. The Toggle key is used to select the
connector in the statement.
8.2.3 AND/OR and ON Logic Connectors
If the cursor is on a connector designated by ccc, pressing TOGL will toggle the ccc
between a logical AND and a logical OR.
For those Events which are Material specific an additional operator can be
selected. This is the ON operator and pressing the TOGL key will now toggle
between AND, OR, and ON.
8.2.3.1 ON Operator
The ON operator is designed for use in multi-Material applications to link an event
to a particular Material.
The only Event allowed following the ON connector is Material ###. Only the events
that can be associated with Material can precede the ON operator. This includes
all States, Pre-Deposit, Deposit, Post-Deposit, Non-Deposit, Final Thickness,
