6.7 TEST Page Set Up

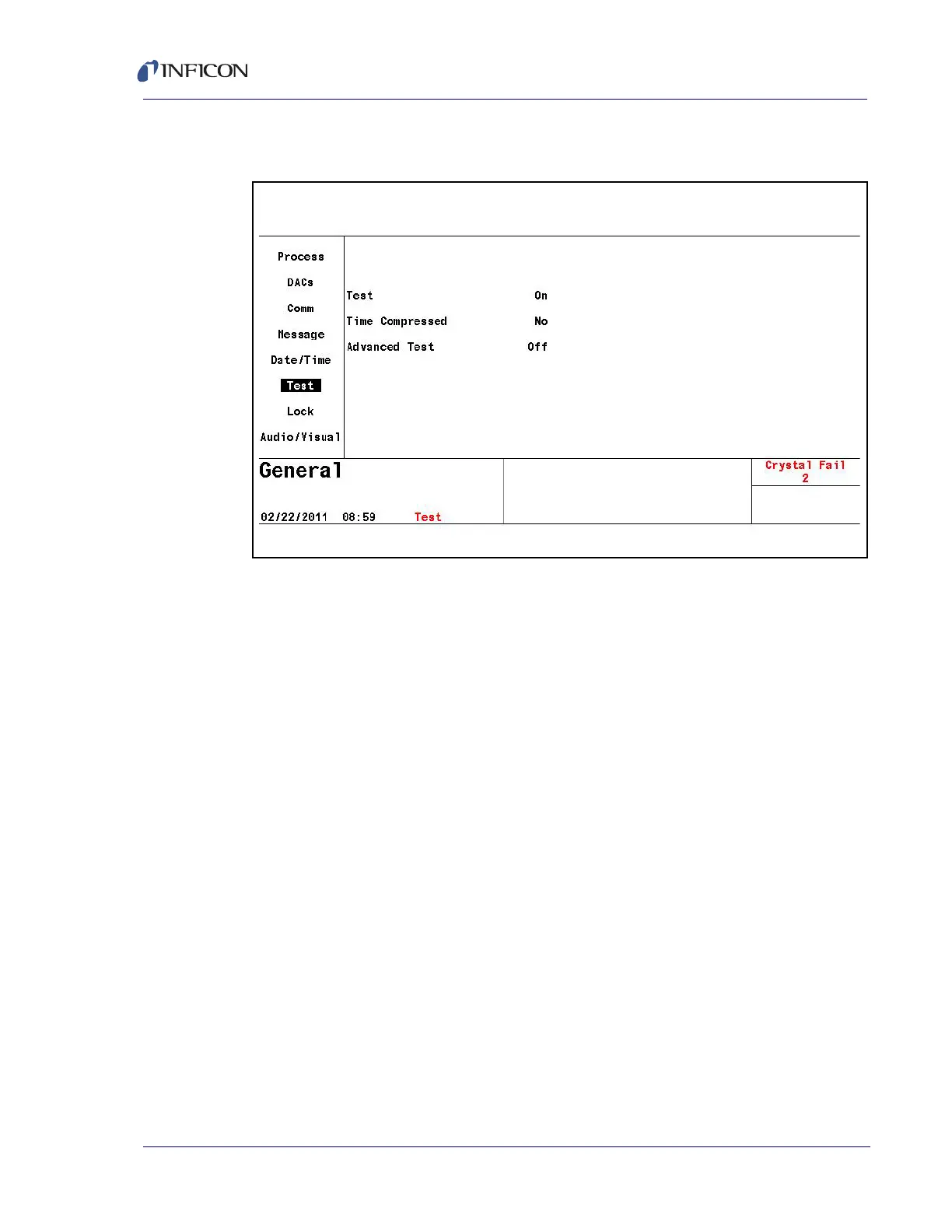

Figure 6-6 General test page
TEST . . . . . . . . . . . . . . . . . . . . . . . . On (1), Off (0)
Press the TOGL key to move through the choices. The default is Off. Cygnus 2
contains a software controlled Test Mode which simulates actual operation. The
purpose of the Test Mode is to verify basic operation and for demonstrating
typical operation to the technician. The word "TEST" will be displayed when
TEST is on.
The Rate displayed during Test Mode operation is determined as shown in
equation [1].
[1]
Relays, inputs, Source and recorder outputs operate normally during Test
Mode but Crystal fails are ignored unless Advanced Test is set to On.
TIME COMPRESSED . . . . . . . . . . . Yes (1), No (0)
When in TEST mode, TIME COMPRESSED allows a faster than real time
execution of the Process. This is useful when testing a long Process. A value
of Yes increases the speed of execution 10 to 1. The default value is No.
ADVANCED TEST . . . . . . . . . . . . . . On (1), Off (0)
If set to On, Cygnus 2 will respond to crystal fails and switch to backup crystal
positions. The text "A TEST" will be displayed when the Advanced Test is On.
The default value is Off.
Displayed Rate
40
DENSITY (g/cc)
------------------------------------------
TOOLING (%)
100%
---------------------------------------
ï‚´
·
Ã…/sec=
To Next Page
