3.1 Front Panel Controls

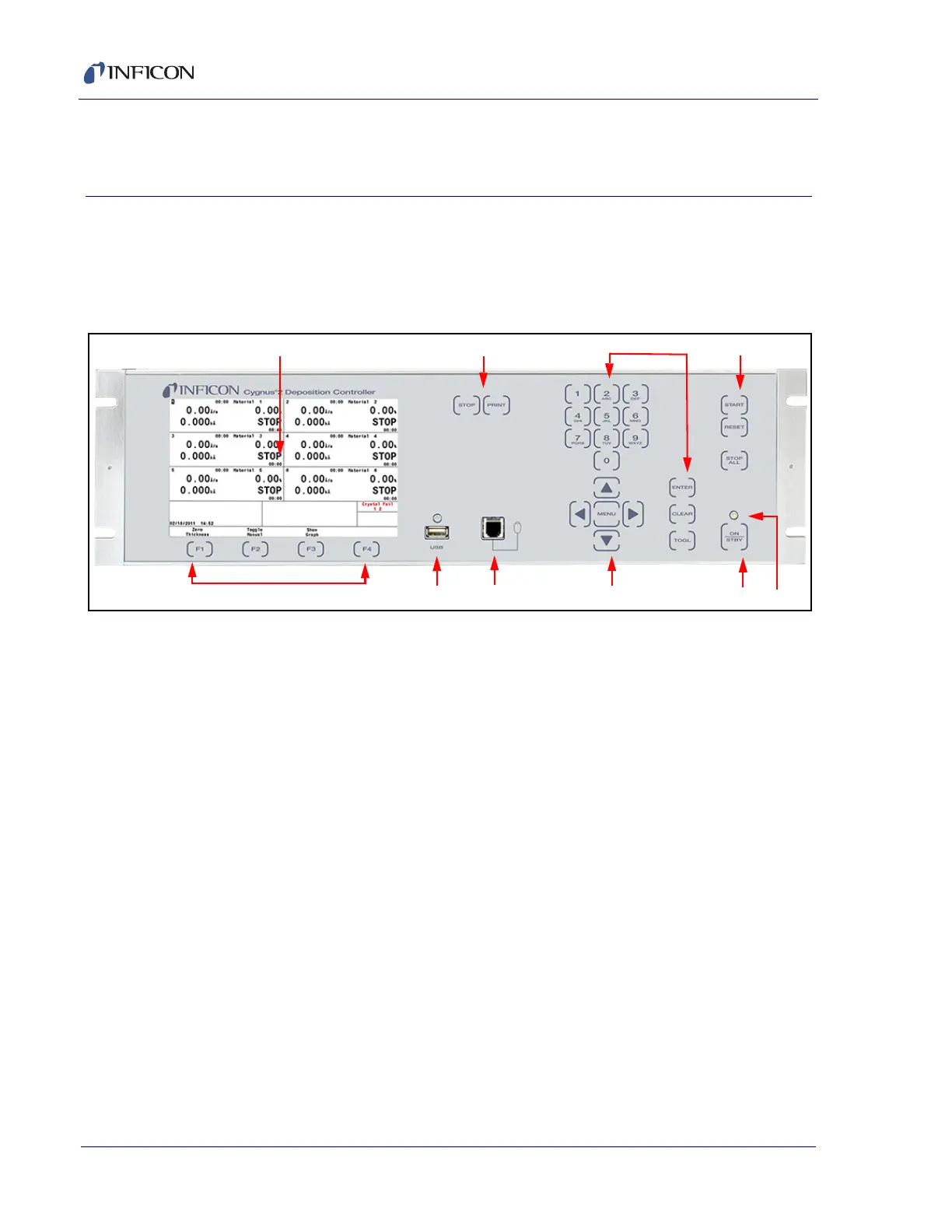

Operational controls for Cygnus 2 are located on the front panel, see Figure 3-1.
Figure 3-1 Cygnus 2 front panel
1 LCD Screen
Provides graphical displays, set-up menus, status and error messages.
2 STOP and PRINT Function Keys
The STOP key places an individual Material into the Stop state. The Material
stopped is designated by the screen cursor position. The PRINT key sends the
LCD screen content to the USB storage device.
3 Data Entry Keys
A keypad array with numerics 0 through 9 with telephone-style assigned letters
for parameter entry. All numeric entries need to be followed by ENTER.
CLEAR is used to erase data entry errors. If an illegal value has been entered,
CLEAR will erase the error message and re-display the last valid data. Pressing
CLEAR on power-up clears any Lock codes. If no Lock codes are present, all
user parameters will be cleared to their default values.
Pressing TOGL moves through selection options such as Yes or No or others
such as Sensor types. Pressing ENTER continues with the selected choice.
