Intel Core 2 Duo Processor - Development Board Physical Reference; Board Components

Document Number: 320249-001
4 Development Board Physical
Reference
4.1 Board Components

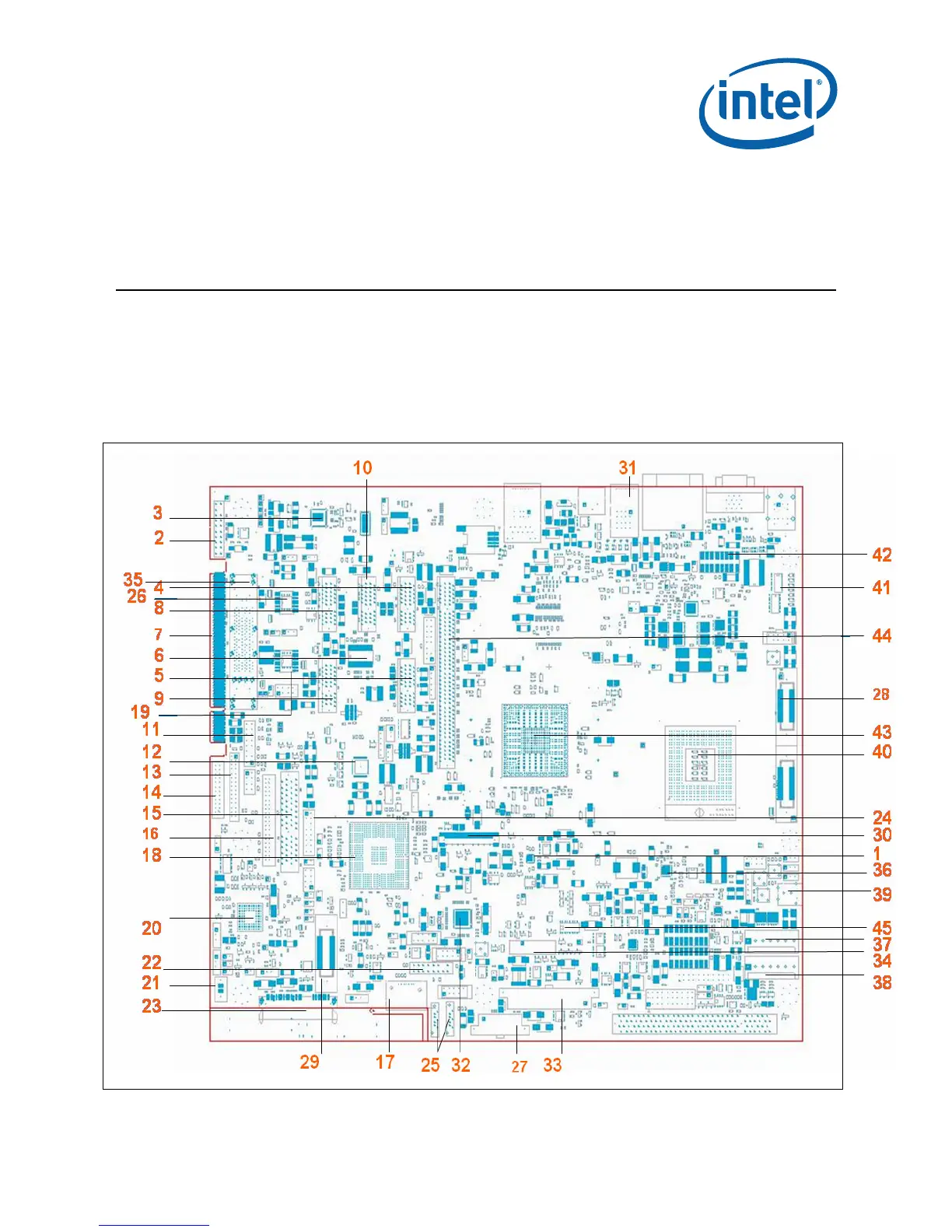

The following figure shows the major components of the Silver Cascade development
board, and Table 16 gives a brief description of each component.
Figure 2. Silver Cascade D
evelopment Board Components
