Intel Core 2 Duo Processor User Manual

Document Number: 320249-001
Appendix D CPU Thermal Solution
(Heatsink) Installation
It is necessary for the Intel
®
Core™ 2 Duo processor to have a thermal solution
attached to it in order to keep it within its operating temperature.
Caution: An ESD wrist strap must be used when handling the board and installing the
heatsink/fan assembly.
A heatsink is included in the kit. To install the heatsink:
1. If not done already, attach the CPU fan to the top of the CPU heatsink with 4
screws. The label on the fan should face down.
2. Remove the heatsink from its package and separate the fan heatsink portion from
the heatsink backplate. (See the figure below.)

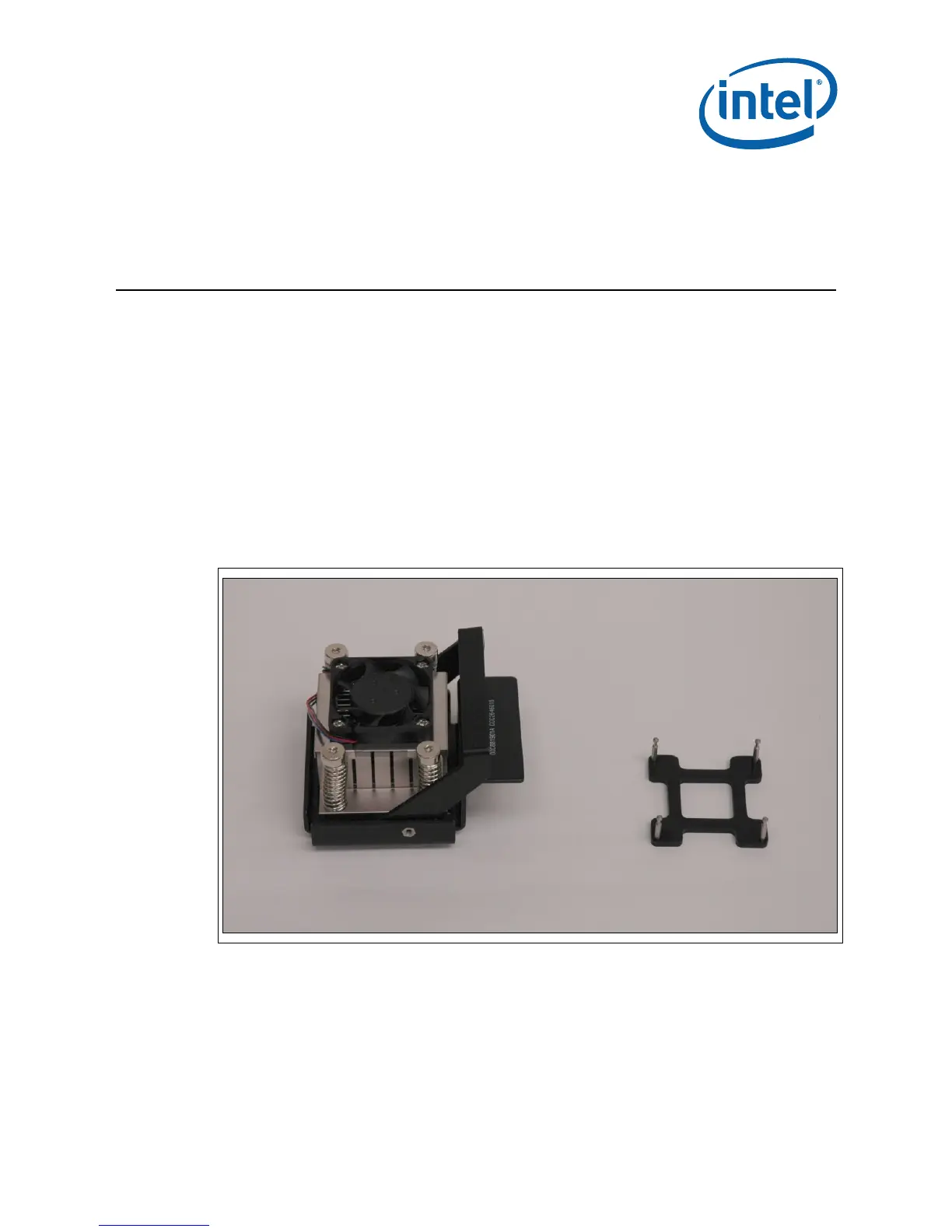

Figure 25. Step 2 - Heatsink and Backplate
3. Examine the base of the heatsink, where contact with the processor die is made.
This surface should be clean of all materials and greases. Wipe the bottom surface
clean with isopropyl alcohol.

Intel Core 2 Duo Processor Specifications

General

Number of Cores	2
Manufacturing Process	65nm or 45nm (depending on model)
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
L2 Cache	2MB, 4MB, or 6MB (depending on model)
Front Side Bus	1066 MHz
Thermal Design Power (TDP)	35W - 65W (depending on model)
Socket Type	LGA775
Clock Speed	1.6 GHz - 3.33 GHz (depending on model)
Instruction Set	x86, x86-64
Virtualization Technology	Yes (depending on model)
Architecture	Intel Core Microarchitecture
