Add-In Cards
62 Development Kit User’s Manual

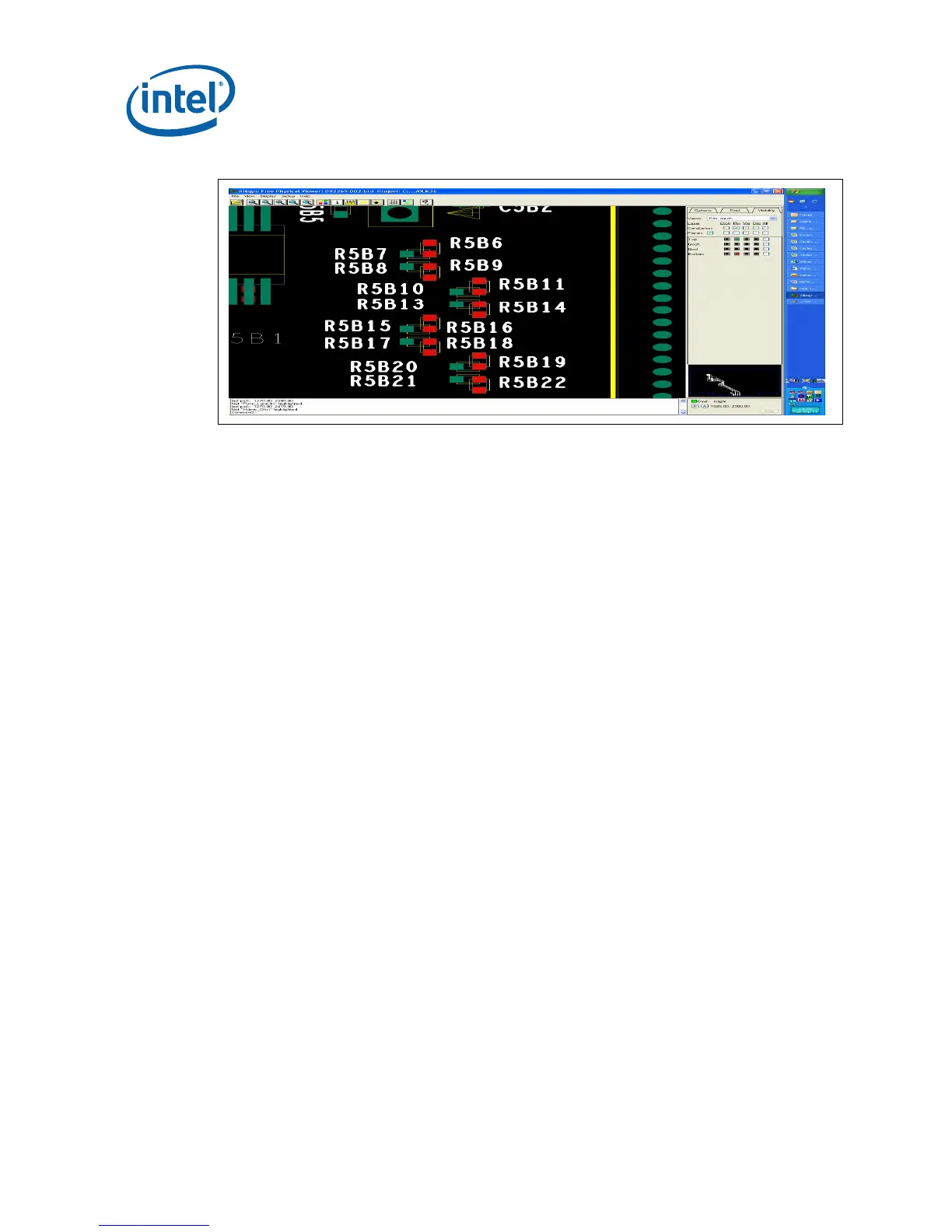

Figure 15. Location of Resistors for Rework
A.3.2 AUX Pull Down Rework.
All Eaglemont cards (both Fab1 and Fab2) as delivered from the factory have 100 kΩ
pull-up resistors on AUXP and AUXN. These cards should be re-worked so that there
are 100 kΩ pull-downs on all AUXP and AUXN signals. There are only pull-downs on
AUX.
Eaglemont cards that are to be used for Display Port require this re-work. This is
independent of any other re-works required.
In the figure below, the resistors are incorrectly pulling up to 3.3V when they should
be pulling to GROUND.
Note: All rework should use lead-free solder in order to keep the board RoHS compliant.

Intel Core 2 Duo Processor Specifications

General

Number of Cores	2
Manufacturing Process	65nm or 45nm (depending on model)
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
L2 Cache	2MB, 4MB, or 6MB (depending on model)
Front Side Bus	1066 MHz
Thermal Design Power (TDP)	35W - 65W (depending on model)
Socket Type	LGA775
Clock Speed	1.6 GHz - 3.33 GHz (depending on model)
Instruction Set	x86, x86-64
Virtualization Technology	Yes (depending on model)
Architecture	Intel Core Microarchitecture
