Intel Core 2 Duo Processor User Manual

Document Number: 320249-001
Appendix A Add-In Cards
Of the add-in cards described in this appendix, only the Port 80-83 Card, PCI
Expansion Card (Thimble Peak 2) and the HDMI and Display Port Video Interface Card
(Eaglemont) are included in the development kit. Contact your Intel Representative to
obtain cards not included in the kit.
A.1 Port 80-83 Add-in Card (Included)
Port 80-83 Add-in card plugs to the CRB through TPM header. It also provides an
additional 10 pin LPC header for LPC supported interfaces. Port 80-83 card decodes
the LPC bus BIOS POST codes and displays on four 7-segment display. It also has
optional Intel® 82802 Firmware Hub Device footprint for BIOS support.

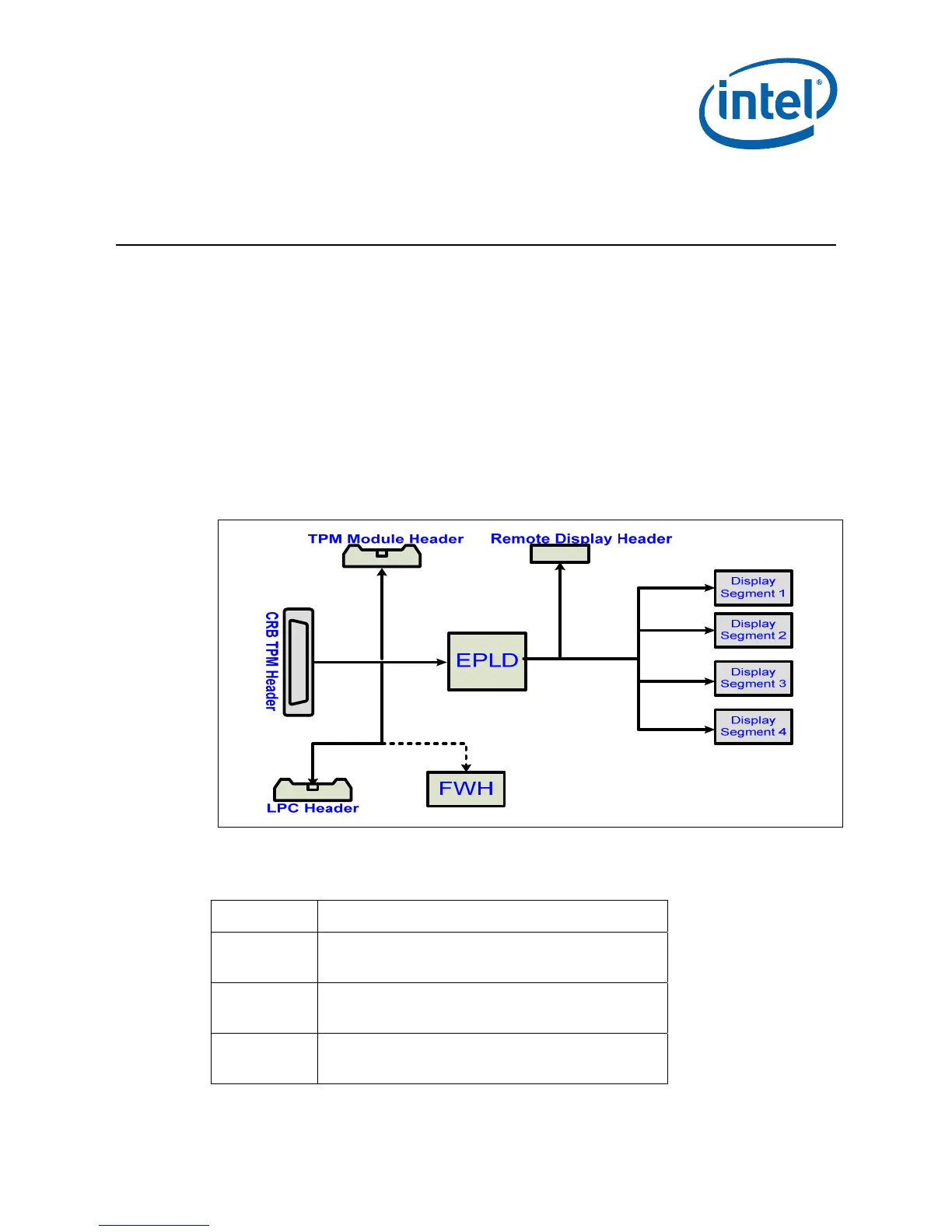

Figure 10. Port 80-83 Interposer Card
Jumper J1 is used for the configurations shown in the following table:
Table 23. Port 80-83 Display Configurations
Jumper J1 Description
Open (None) AIC Intel® 82802 Firmware Hub Device Disabled
Display Ports 81-80
1-2 AIC Intel® 82802 Firmware Hub Device enabled
Display Ports 81-80
2-3 AIC Intel® 82802 Firmware Hub Device Disabled
Display Ports 83-82

Intel Core 2 Duo Processor Specifications

General

Number of Cores	2
Manufacturing Process	65nm or 45nm (depending on model)
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
L2 Cache	2MB, 4MB, or 6MB (depending on model)
Front Side Bus	1066 MHz
Thermal Design Power (TDP)	35W - 65W (depending on model)
Socket Type	LGA775
Clock Speed	1.6 GHz - 3.33 GHz (depending on model)
Instruction Set	x86, x86-64
Virtualization Technology	Yes (depending on model)
Architecture	Intel Core Microarchitecture
