A.5 ExpressCard Module Interposer
(Duck Bay 3) (Not Included)
The Duck Bay 3 Interposer Card is a modular add-in card based on the PCI Express
and USB interfaces. Duck Bay 3 is provided to enable both 34 mm and 54 mm
ExpressCard functionality on the Silver Cascade development board. To support the
PCI Express interface, Duck Bay 3 plugs into PCI Express slot 0 (J8C1) and PCI
Express slot 2 (J8D1) on the board. To support the USB interface Duck Bay 3 plugs
into the USB front panel header (J6H4). Please refer to Figure 18
for a pictorial
representation of how Duck Bay 3 attaches to the development board.

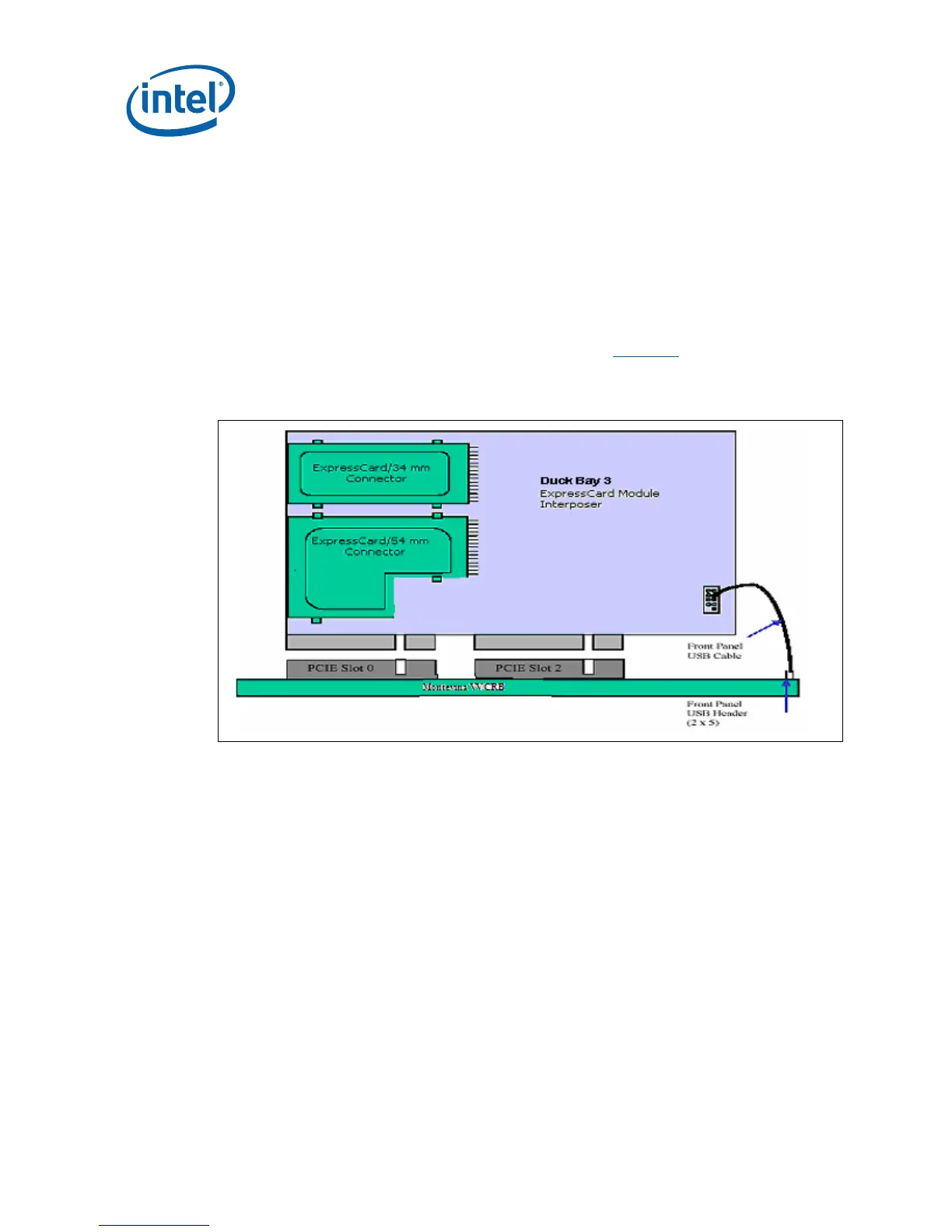

Figure 18. Duck Bay 3 Interposer Card

Intel Core 2 Duo Processor Specifications

General

Number of Cores	2
Manufacturing Process	65nm or 45nm (depending on model)
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
L2 Cache	2MB, 4MB, or 6MB (depending on model)
Front Side Bus	1066 MHz
Thermal Design Power (TDP)	35W - 65W (depending on model)
Socket Type	LGA775
Clock Speed	1.6 GHz - 3.33 GHz (depending on model)
Instruction Set	x86, x86-64
Virtualization Technology	Yes (depending on model)
Architecture	Intel Core Microarchitecture
