4.2 Connectors
Caution: Many of the connectors provide operating voltage (+5V DC and +12V DC, for
example) to devices inside the computer chassis, such as fans and internal peripherals.
Most of these connectors are not over-current protected. Do not use these connectors for
powering devices external to the computer chassis. A fault in the load presented by the
external devices could cause damage to the computer, the interconnecting cable, and the
external devices themselves. This section describes the board’s connectors.
4.2.1 Back Panel Connectors

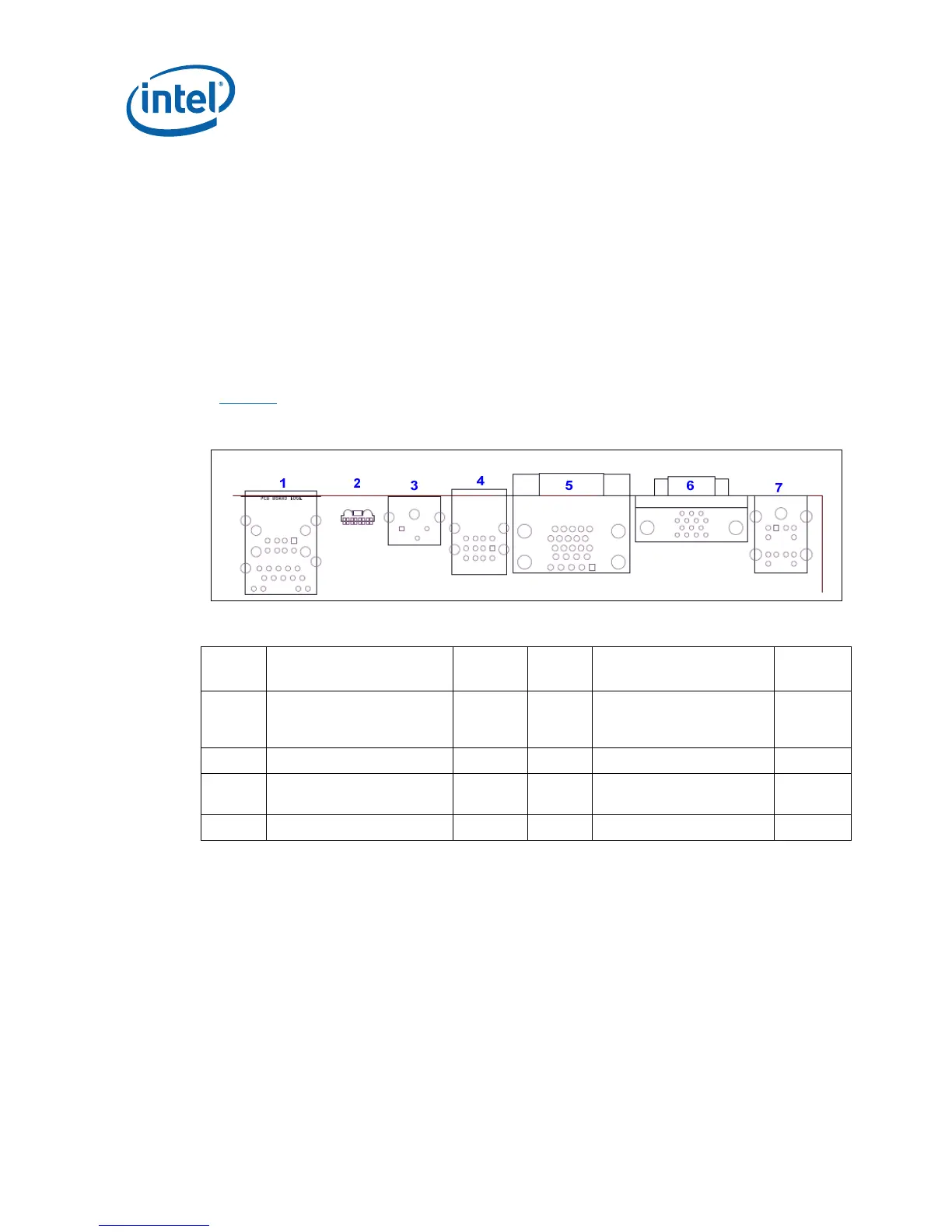

Figure 3 shows the back panel connectors on the board.
Figure 3. Back Panel Connectors
Table 17. Description of Back Panel Connectors
Item Description Ref
Des
Item Description Ref Des
1 RJ-45 LAN + 2 USB Ports
J5A1
5
VGA (Bottom Side
Connector) + Serial Port
(Top Side Connector)
J2A2
2 IrDA Transceiver U4A1 6 D-connector J2A1
3 Thermal Diode (no stuff)
J4A1
7
PS/2 (Keyboard bottom –
Mouse Top)
J1A1
4 4 USB Ports J3A1
Note: The on-board 14 pin D-Connector J2A1 (#6) supplies the necessary signals to support
the Composite, S-Video, and Component TV standards. Component video and
composite video are connected to the development board using a D-connector to
component video cable (with three RCA receptacles at one end and D-mating
connector on other end) (not included in the kit). S-video is connected to the board
using a D-connector to S-Video cable (with 4-pin DIN connector one end and
D-mating connector on other end) (not included in the kit).
