A.7 Docking Connector Card (Saddlestring II)
(Not Included)
Saddlestring II is a docking station connector card. Saddlestring II plugs into the
development board by means of a docking connector. This add-in card has been
redesigned to add support for the iAMPS solution supported on the Silver Cascade
development board. Also Display Port and HDMI features are added from Saddlestring.
It also retains all the supported features of the original Saddlestring design.

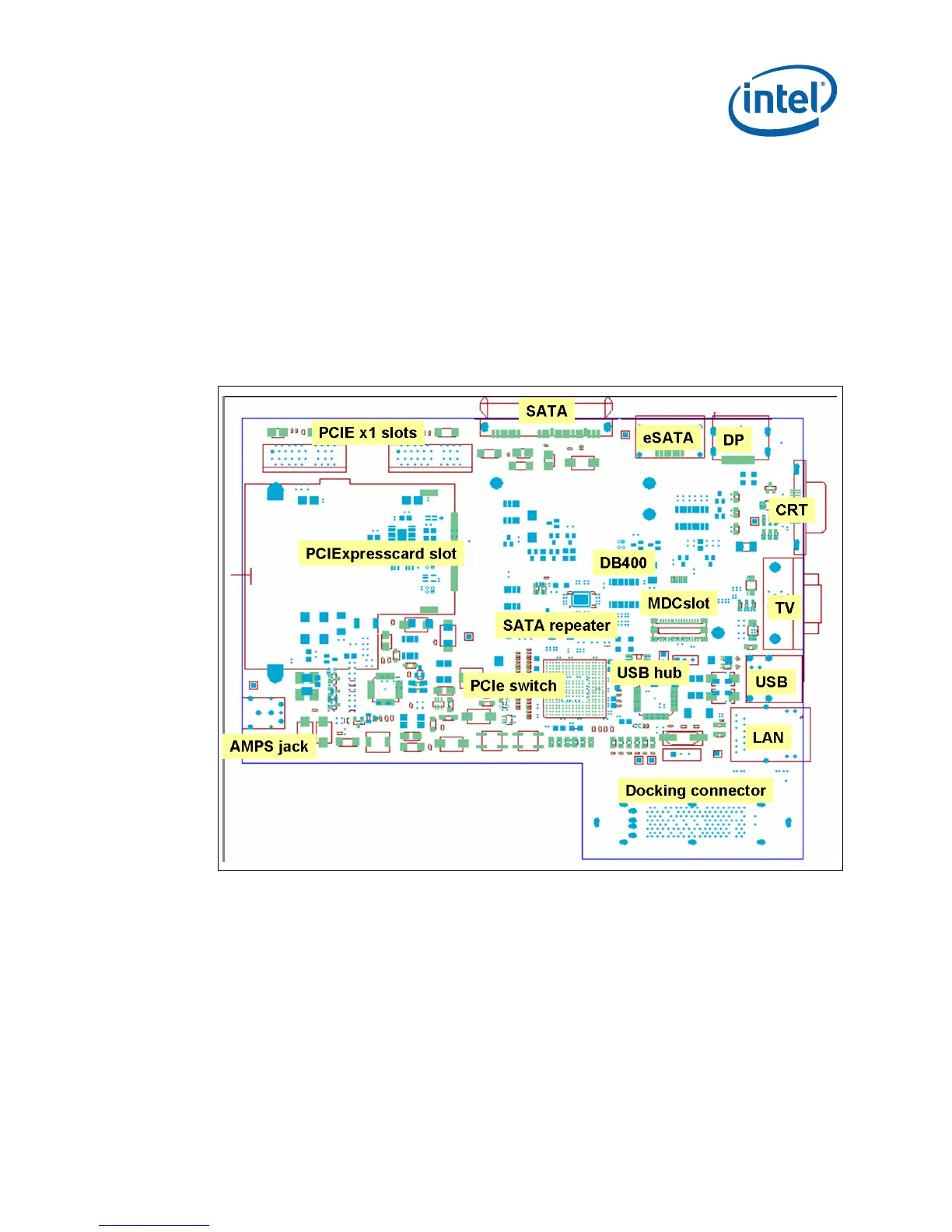

Figure 20. Saddlestring II Docking Connector
Please refer to the Saddlestring II Fab 1 Users Guide for details on using each of these
interfaces and reworks that may be required on the board.
The table below describes the reworks required for routing Display Port to the Docking
station.
Note: All rework should use lead-free solder in order to keep the board RoHS compliant.

Intel Core 2 Duo Processor Specifications

General

Number of Cores	2
Manufacturing Process	65nm or 45nm (depending on model)
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
L2 Cache	2MB, 4MB, or 6MB (depending on model)
Front Side Bus	1066 MHz
Thermal Design Power (TDP)	35W - 65W (depending on model)
Socket Type	LGA775
Clock Speed	1.6 GHz - 3.33 GHz (depending on model)
Instruction Set	x86, x86-64
Virtualization Technology	Yes (depending on model)
Architecture	Intel Core Microarchitecture
