Development Board Features
Development Kit User’s Manual 25
3 Development Board Features
3.1 Block Diagram

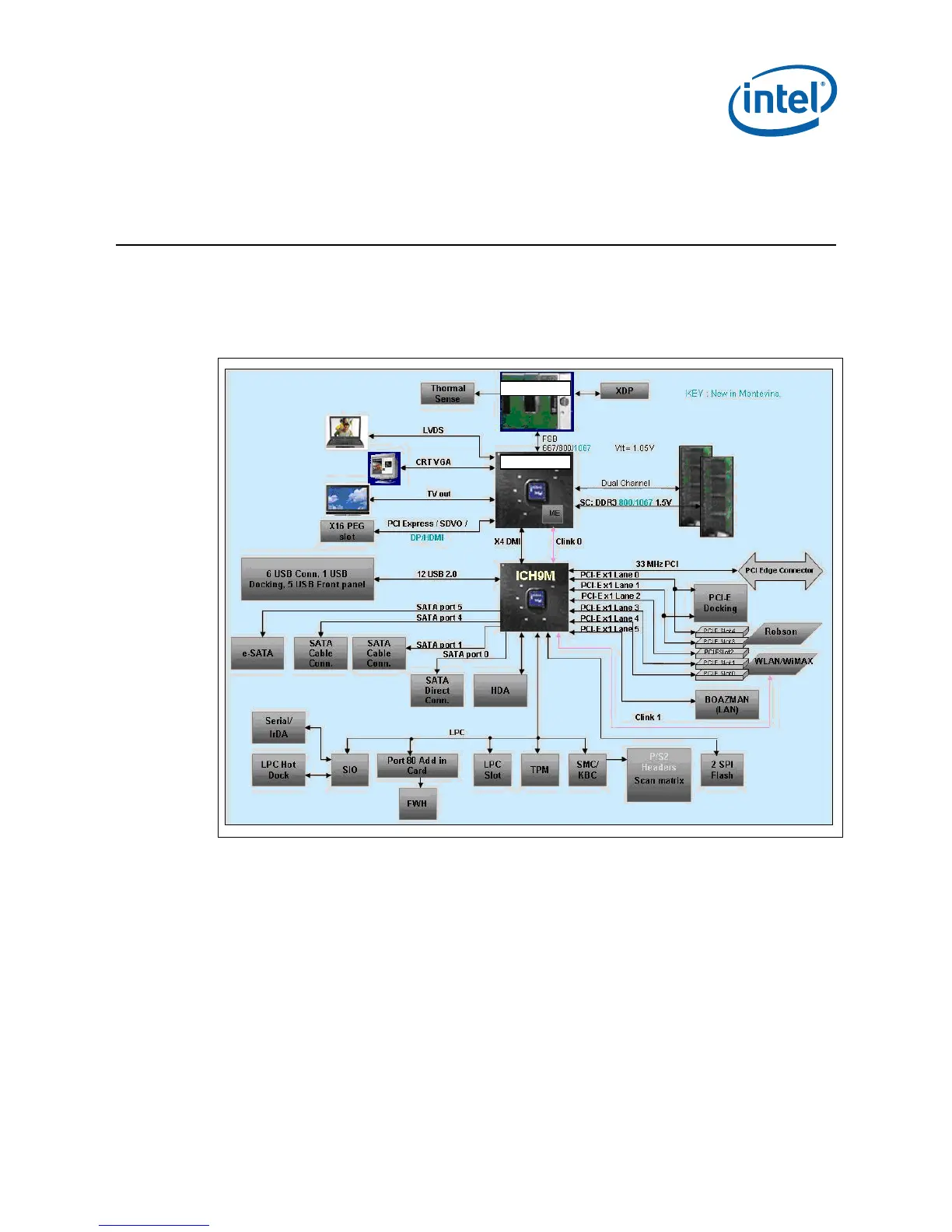

Figure 1. Development Board Block Diagram
3.2 Mechanical Form Factor
The development board conforms to the ATX form factor. The development board will
fit in most standard ATX chassis. A list of add-in card connector and slot locations is
provided in Section 4.1 Internal and rear panel system I/O connectors are described in
Se
ction 4.2.
CPU
GM45 GMCH
To Next Page
