Intel Core 2 Duo Processor User Manual

CPU Thermal Solution (Heatsink) Installation
Development Kit User’s Manual 79
8. While keeping the activation arm compressed, place the heatsink over the pins of
the heatsink backplate. Lower the heatsink until the lugs have inserted into the
base of the heatsink. Slide the heatsink over the lugs on the backplate pins so
that the base is directly over the processor die and the pins on the backplate have
travelled the entire length of the channel in the heatsink base. Slowly let go of the
activation arm until the base of the heatsink makes contact with the processor die.
The heatsink base should be flat on top of the processor die.

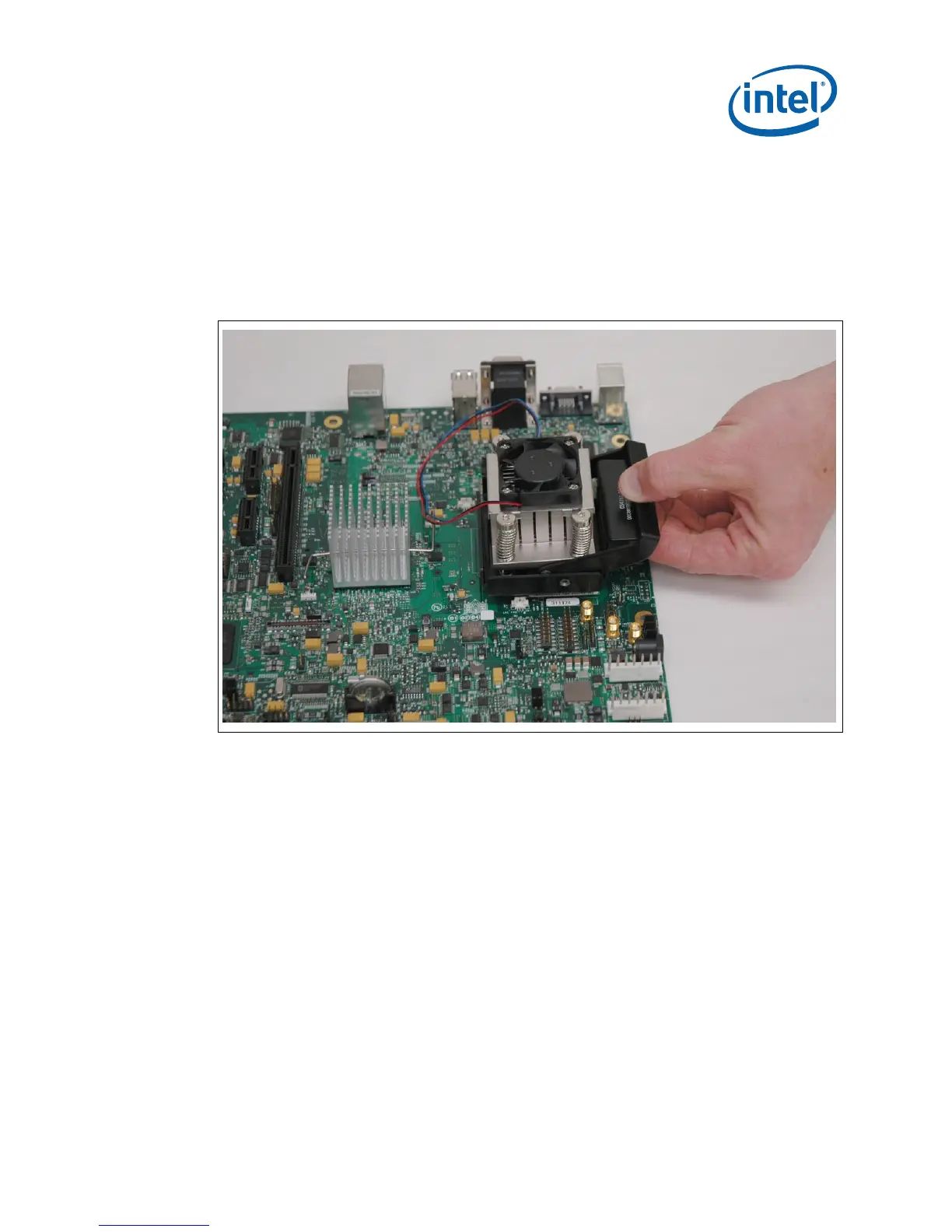

Figure 29. Step 8 - Installing the Heatsink

Intel Core 2 Duo Processor Specifications

General

Number of Cores	2
Manufacturing Process	65nm or 45nm (depending on model)
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
L2 Cache	2MB, 4MB, or 6MB (depending on model)
Front Side Bus	1066 MHz
Thermal Design Power (TDP)	35W - 65W (depending on model)
Socket Type	LGA775
Clock Speed	1.6 GHz - 3.33 GHz (depending on model)
Instruction Set	x86, x86-64
Virtualization Technology	Yes (depending on model)
Architecture	Intel Core Microarchitecture
