CPU Thermal Solution (Heatsink) Installation
80 Development Kit User’s Manual
9. Plug the fan connector for the heatsink onto the CPU fan header (J2B3) on the
motherboard. (See the figure below.) The CPU fan header (J2B3) is a 3-pin
connector with the words CPU Fan printed beside it.

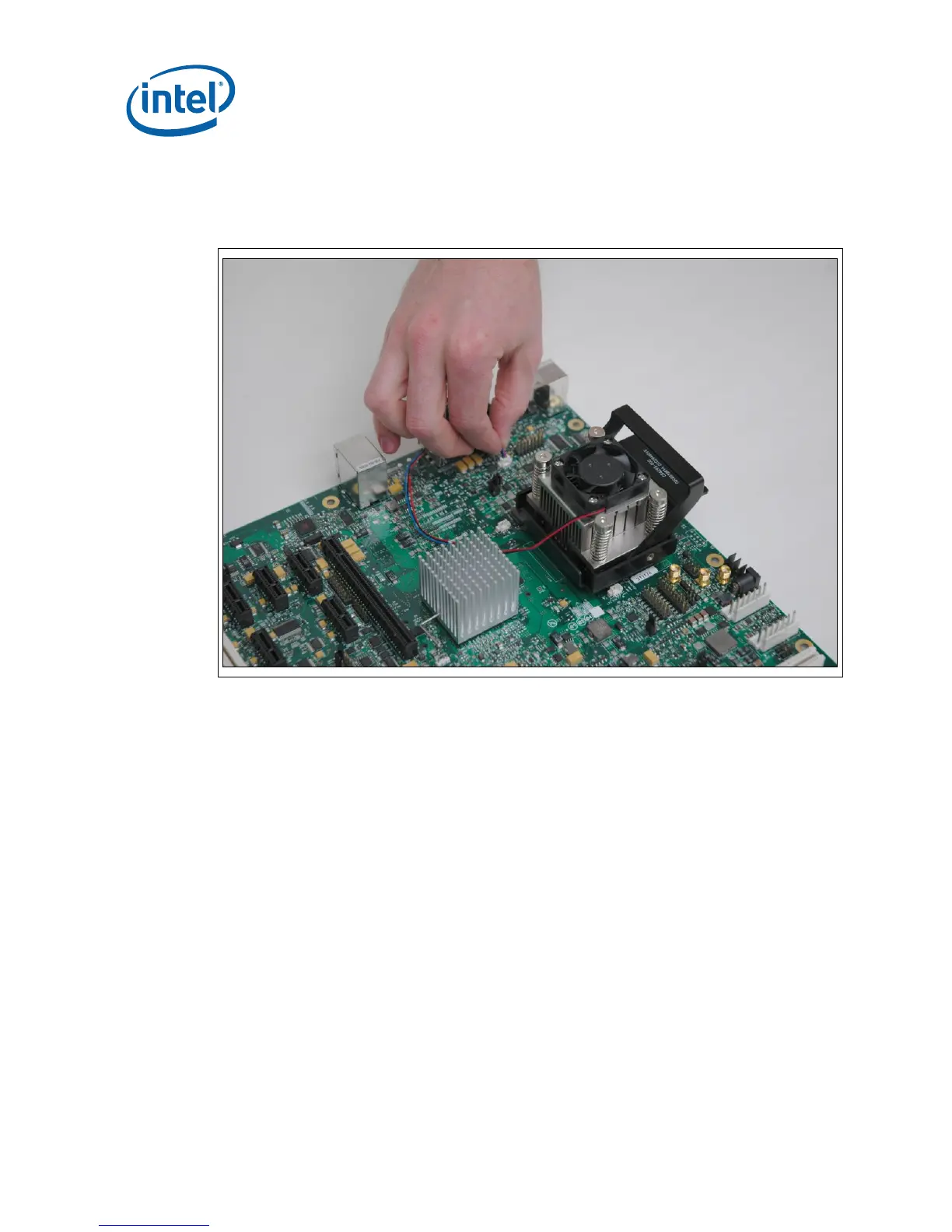

Figure 30. Step 9 - Plugging in the Fan
Once the thermal solution is in-place, the development kit is ready to use.
