4.3 Configuration Settings
4.3.1 Configuration Jumpers/Switches
Caution: Do not move jumpers with the power on. Always turn off the power and unplug the
power cord from the computer before changing jumper settings. Else, it may damage the
board.
Note: Some jumpers may fall off during shipment. Jumpers that are only attached to one pin
(noted as 1-x) are more prone to becoming detached. Replacing detached 1-x
jumpers is not required for proper board operation.
Figure 7
shows the location of the configuration jumpers and switches. 2Table 18
summarizes the jumpers and switches and gives their default and optional settings.
The board is shipped with the jumpers and switches shunted in the default locations.

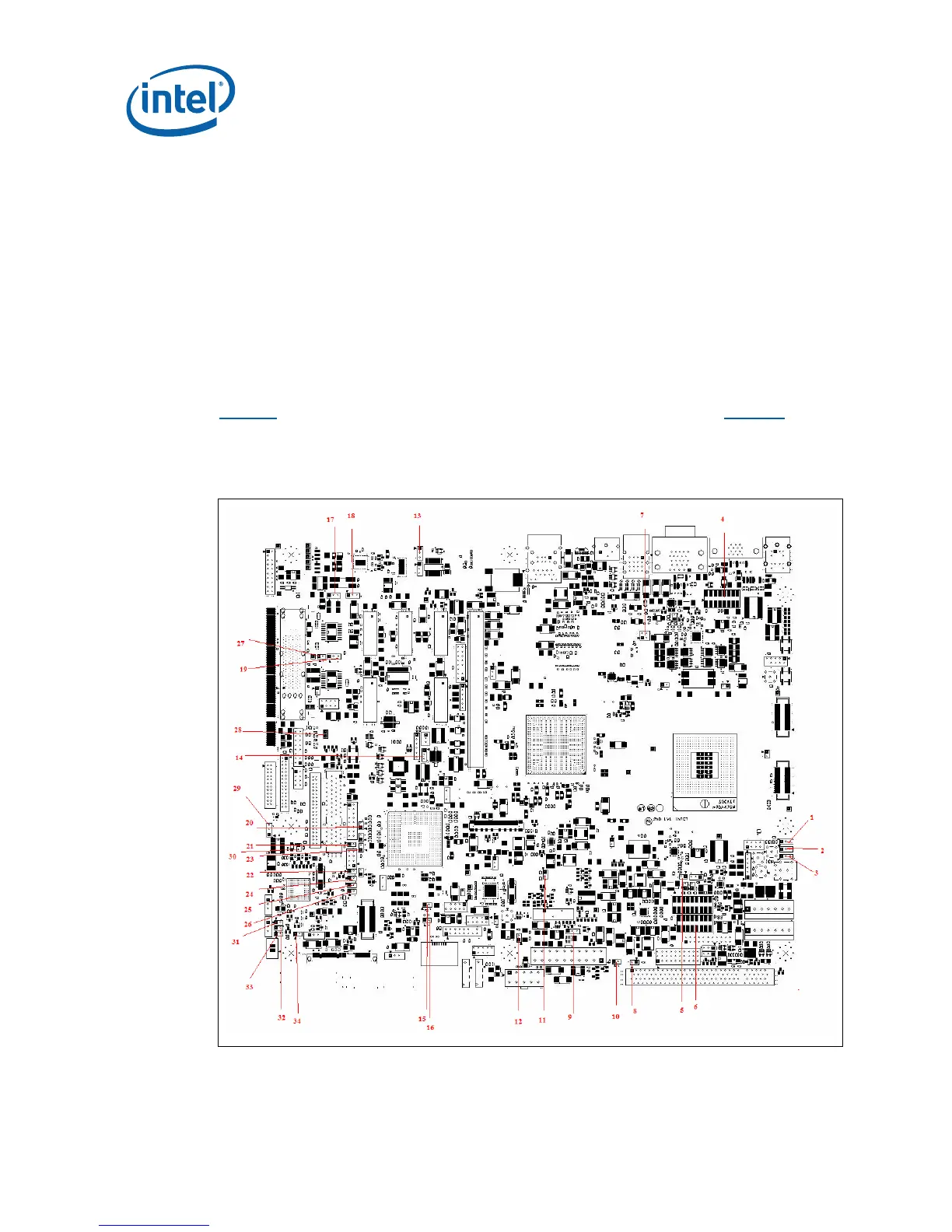

Figure 7. Location of the Configuration Jumpers/Switches

Intel Core 2 Duo Processor Specifications

General

Number of Cores	2
Manufacturing Process	65nm or 45nm (depending on model)
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
L2 Cache	2MB, 4MB, or 6MB (depending on model)
Front Side Bus	1066 MHz
Thermal Design Power (TDP)	35W - 65W (depending on model)
Socket Type	LGA775
Clock Speed	1.6 GHz - 3.33 GHz (depending on model)
Instruction Set	x86, x86-64
Virtualization Technology	Yes (depending on model)
Architecture	Intel Core Microarchitecture
