A.6 PCI Express Mini Card Interposer
(Upham IV) (Not Included)
The Upham IV board plugs into the PCI Express slots on The development board. It
supports the attachment of two independent PCI Express mini cards (Complied with
Express mini card specification Rev1.0) with USB connection enabled for each. The
USB interface is implemented using a separate cabling scheme. The interposer
supports a Bluetooth module and allows the concurrent usage of Bluetooth and PCI
Express mini cards. The interposer supports any specific feature that may be required
for the PCI Express mini card WLAN product.
This interposer supports the SIM card functionality for the purpose of testing WWAN
modules.

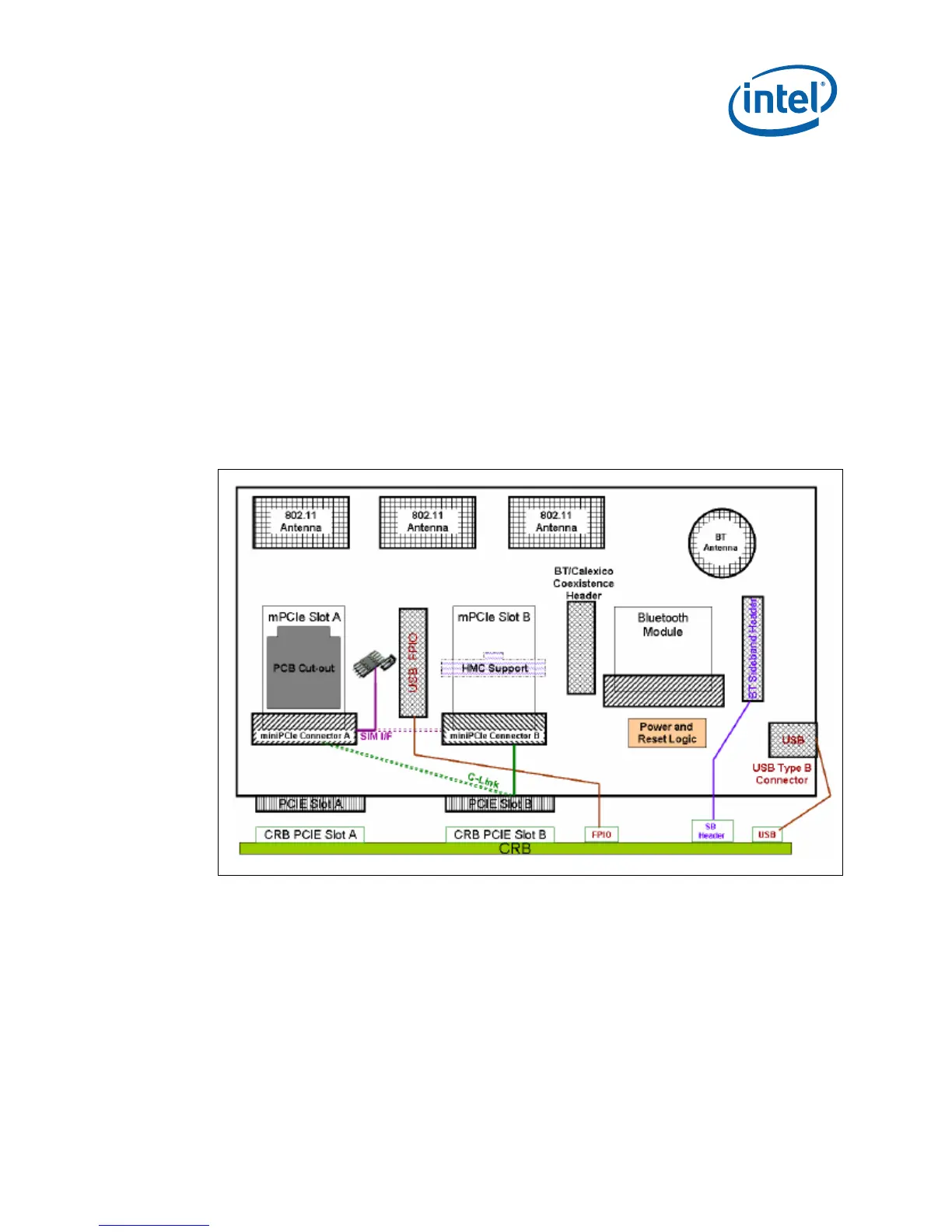

Figure 19. Upham IV Interposer Card

Intel Core 2 Duo Processor Specifications

General

Number of Cores	2
Manufacturing Process	65nm or 45nm (depending on model)
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
L2 Cache	2MB, 4MB, or 6MB (depending on model)
Front Side Bus	1066 MHz
Thermal Design Power (TDP)	35W - 65W (depending on model)
Socket Type	LGA775
Clock Speed	1.6 GHz - 3.33 GHz (depending on model)
Instruction Set	x86, x86-64
Virtualization Technology	Yes (depending on model)
Architecture	Intel Core Microarchitecture
