Add-In Cards
60 Development Kit User’s Manual

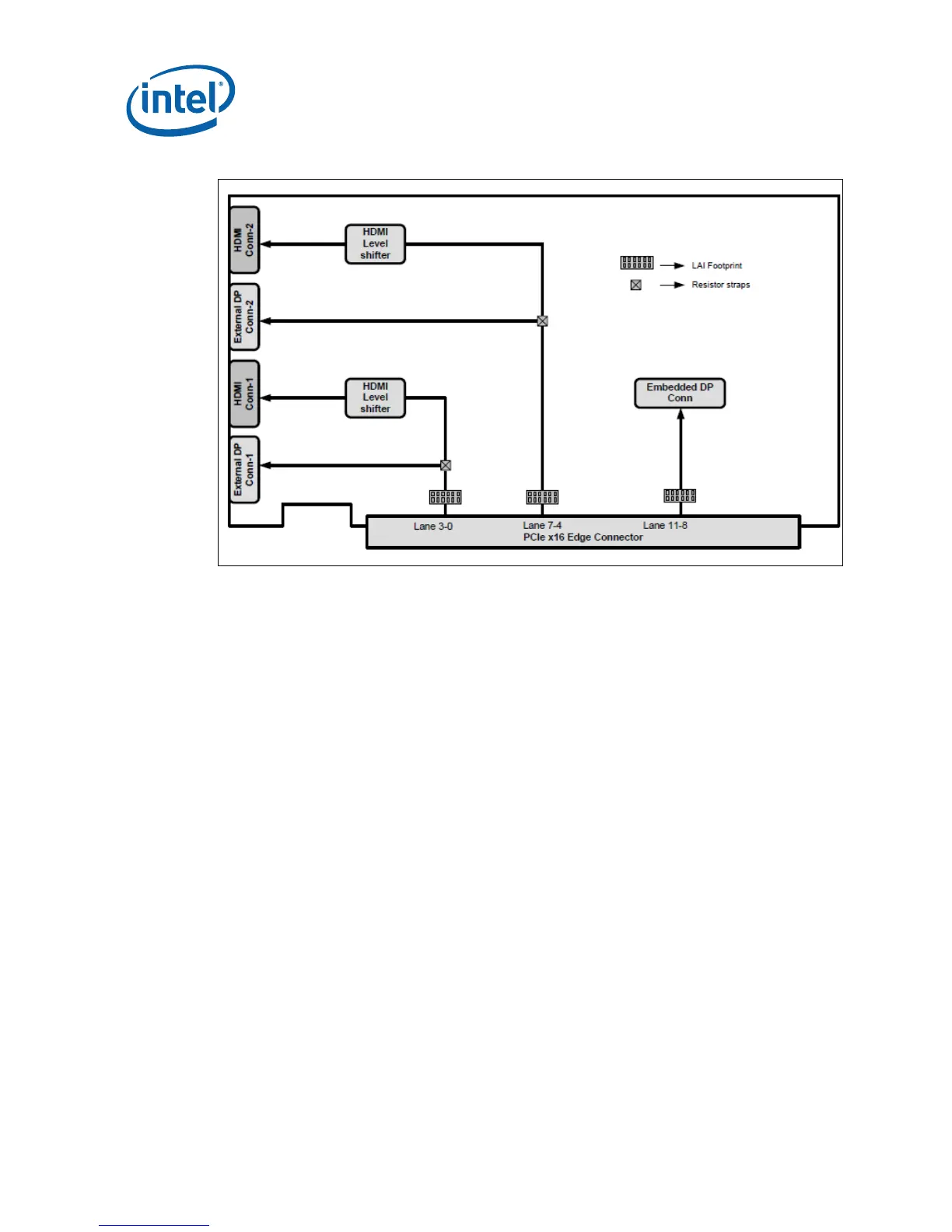

Figure 12. Eaglemont Add-in Card
A.3.1 Rework to Change Eaglemont Card from HDMI to
Display Port
Note: All rework should use lead-free solder in order to keep the board RoHS compliant.
1. Resistors R5D7, R5D5, R5D3, R5C19, R5C16, R5C12, and R5C11 need to be
taken off and placed in the ref des. R5D6, R5D4, R5D, R5C18, R5C17, R5C14,
R5C13, and R5C10. In the picture below the highlighted areas show where the
resistors should end up. Move the vertically-mounted resistors horizontally.

Intel Core 2 Duo Processor Specifications

General

Number of Cores	2
Manufacturing Process	65nm or 45nm (depending on model)
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
L2 Cache	2MB, 4MB, or 6MB (depending on model)
Front Side Bus	1066 MHz
Thermal Design Power (TDP)	35W - 65W (depending on model)
Socket Type	LGA775
Clock Speed	1.6 GHz - 3.33 GHz (depending on model)
Instruction Set	x86, x86-64
Virtualization Technology	Yes (depending on model)
Architecture	Intel Core Microarchitecture
