Intel® Server System M50CYP1UR Family System Integration and Service Guide
21
2.2.2 System Cover Installation

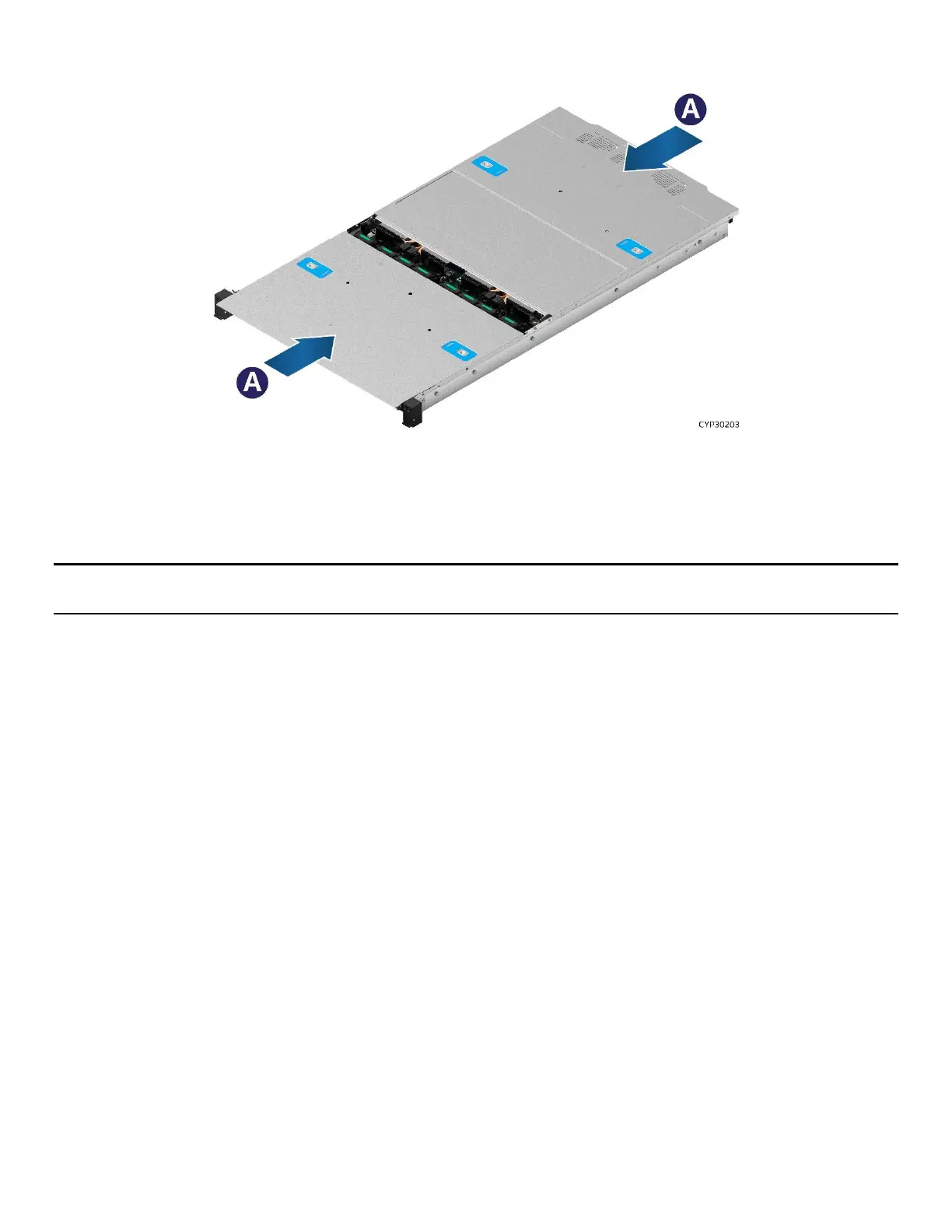

Figure 4. System Cover Installation
For each top cover panel:
1. Carefully align and set the top cover panel on top of the chassis. Then, slide it inwards until it locks into
place (see Letter A).
Shipping Note: When transporting the server system, Intel recommends installing the four top cover screws
before shipping.
2.3 Processor Assembly and Installation
Components Required:
• 3
rd
Gen Intel® Xeon® Scalable processors
• Processor carrier clip
• 1U standard heat sink or 1U Enhanced Volume Air Cooling (EVAC) heat sink
• Processor tray (comes with the processor)
Required Tools and Supplies
• Anti-static wrist strap and conductive workbench pad (recommended)
• T-30 Torx* screwdriver
• ESD Gloves
• Phillips* head screwdriver #2
The Intel® Server System M50CYP1UR family includes two Socket-P4 LGA4189 processor sockets
compatible with the 3
rd
Gen Intel® Xeon® Scalable processor family.
The Intel® Server System M50CYP1UR family supports two types of heat sinks as shown in the following
figure: The standard 1U heat sink and Enhanced Volume Air Cooling (EVAC) heat sink. The type of heat sink
used depends on the system thermal requirements. The 2.5” x4 front drive system must use the EVAC heat
sink on both processors. The 2.5” x12 front drive system must use the standard 1U heat sink on both
processors. For more information, refer to the Intel® Server System M50CYP1UR Family Technical Product
Specification (TPS) and Intel® Server M50CYP Family Configuration Guide.
