Intel® Server System M50CYP1UR Family System Integration and Service Guide
45
3.4.1 OCP* Adapter Bay Filler Removal / Installation
The OCP* adapter bay has a filler that needs to be removed before installing any of the OCP* adapter
configurations.
Caution: If the OCP* adapter is removed and the bay becomes empty again, this filler needs to be reinstalled.
The following steps show how to remove and install OCP* adapter bay filler.

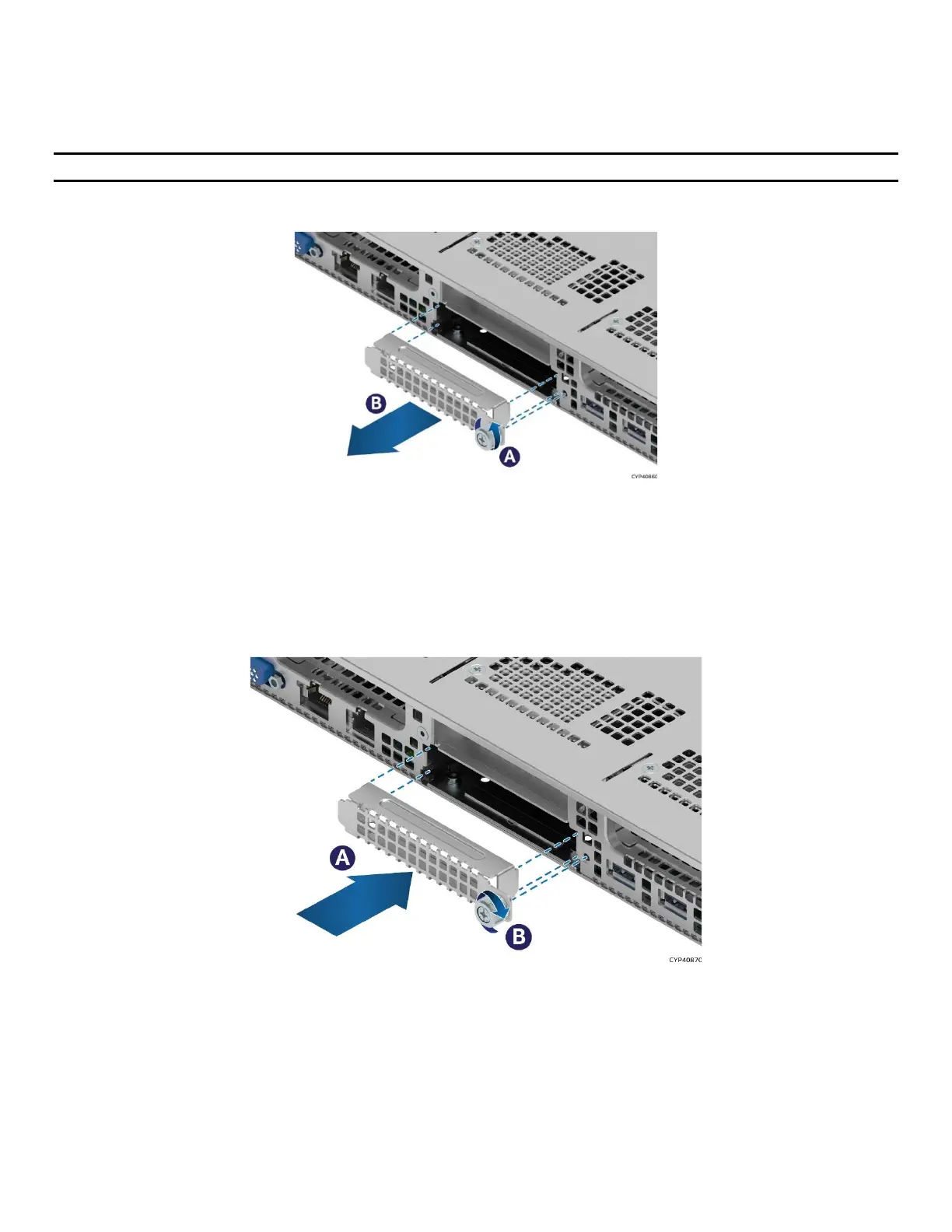

Figure 40. OCP* Adapter Bay Filler Removal
To remove the filler:
1. Loosen the thumb screw on the right side of the filler (see Letter A).
2. Pull out the right side of the filler first and move the filler slightly to the right, ensuring the left end of the
filler is out of the slot.
3. Pull the filler away from the chassis (see Letter B).
Figure 41. OCP* Adapter Bay Filler Installation
To install the filler:
1. Insert the left side of the filler on the slot.
2. Push the filler until the mounting screw goes into the mounting hole on the right side (see Letter A).
3. Tighten the thumb screw (see Letter B).
