Intel® Server System M50CYP1UR Family System Integration and Service Guide
28
2.4 Memory Module Installation
Required Tools and Supplies
• Anti-static wrist strap and conductive workbench pad (recommended)
Only standard DDR4 DIMMs are shown in the following figures, but the steps of DDR4 DIMM installation and
replacement are the same for standard DDR4 DIMMs and Intel® Optane™ DC persistent memory 200 series
modules.
DDR4 DIMM and Intel® Optane™ PMem will be commonly referred to as “Memory module” in the following
instructions.
Note: See Appendix C for general memory population rules.
2.4.1 DIMM Installation

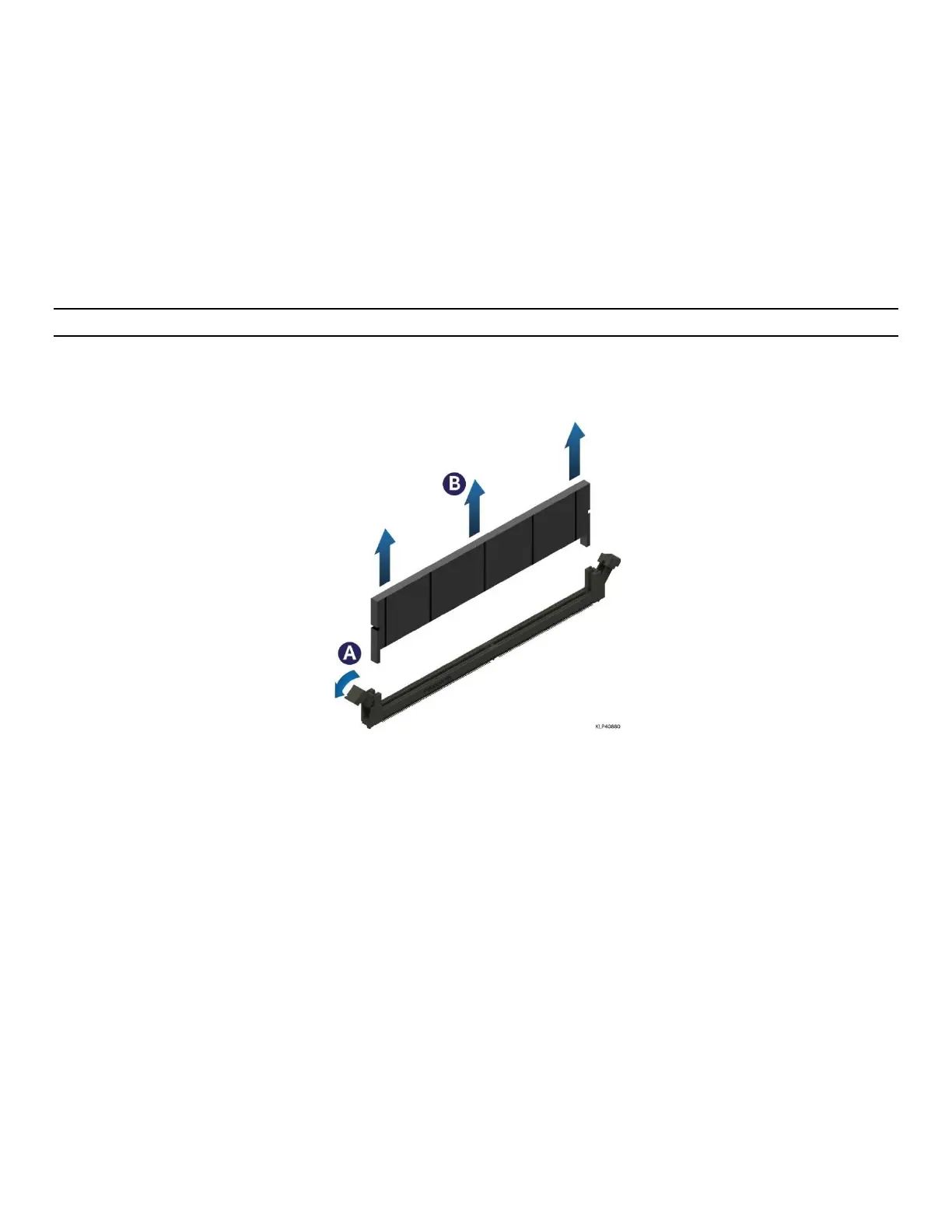

Figure 16. DIMM Blank Removal
1. Remove the DIMM blank from the desired memory slot
• Open the ejection tabs at both ends of the selected memory slot to lift the DIMM blank from the slot
(see Letter A).
• Carefully remove the DIMM Blank from the system (see Letter B).
