9. If not replacing the processor, reinstall the socket cover.
•

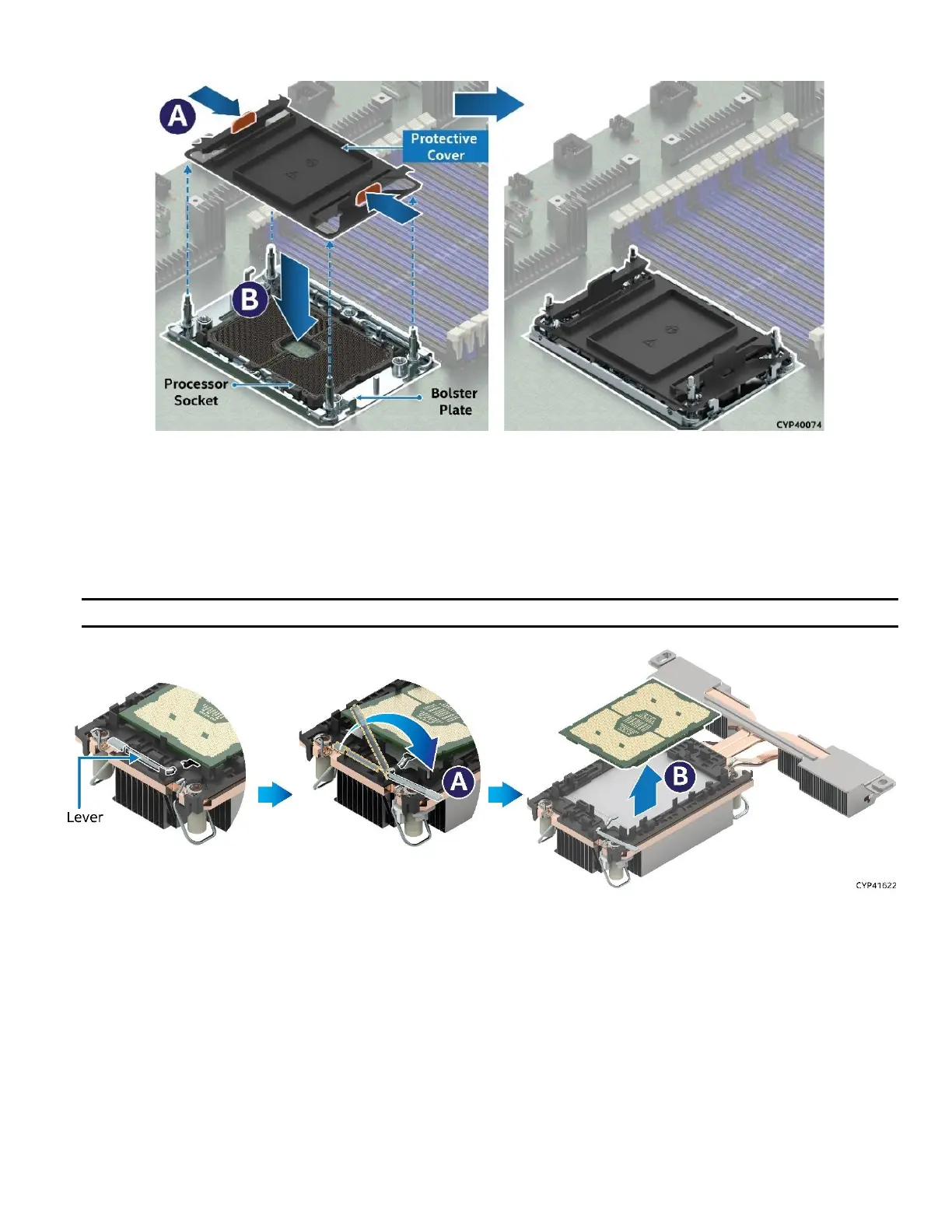

Figure 84. Reinstall the Socket Cover
a. Squeeze the finger grips at each end of the cover (see Letter A in above figure) and carefully
lower the cover on the socket (see Letter B), then release finger grips.
b. Ensure socket cover is locked in place.
Caution: Do not press the center of the socket cover.
Figure 85. Processor Removal from PHM Assembly
10. Place the PHM, bottom side up, on a flat surface.
11. While holding down the PHM, rotate the lever (see Letter A) from left to right until the processor lifts
from the processor carrier clip.
12. While holding the processor carrier clip, carefully lift the processor and slide it out of the processor
carrier clip (see Letter B).
