2.3.2 Processor Installation
Caution: Do not touch the socket pins. The pins inside the processor socket are extremely sensitive. A
damaged processor socket may produce unpredictable system errors.

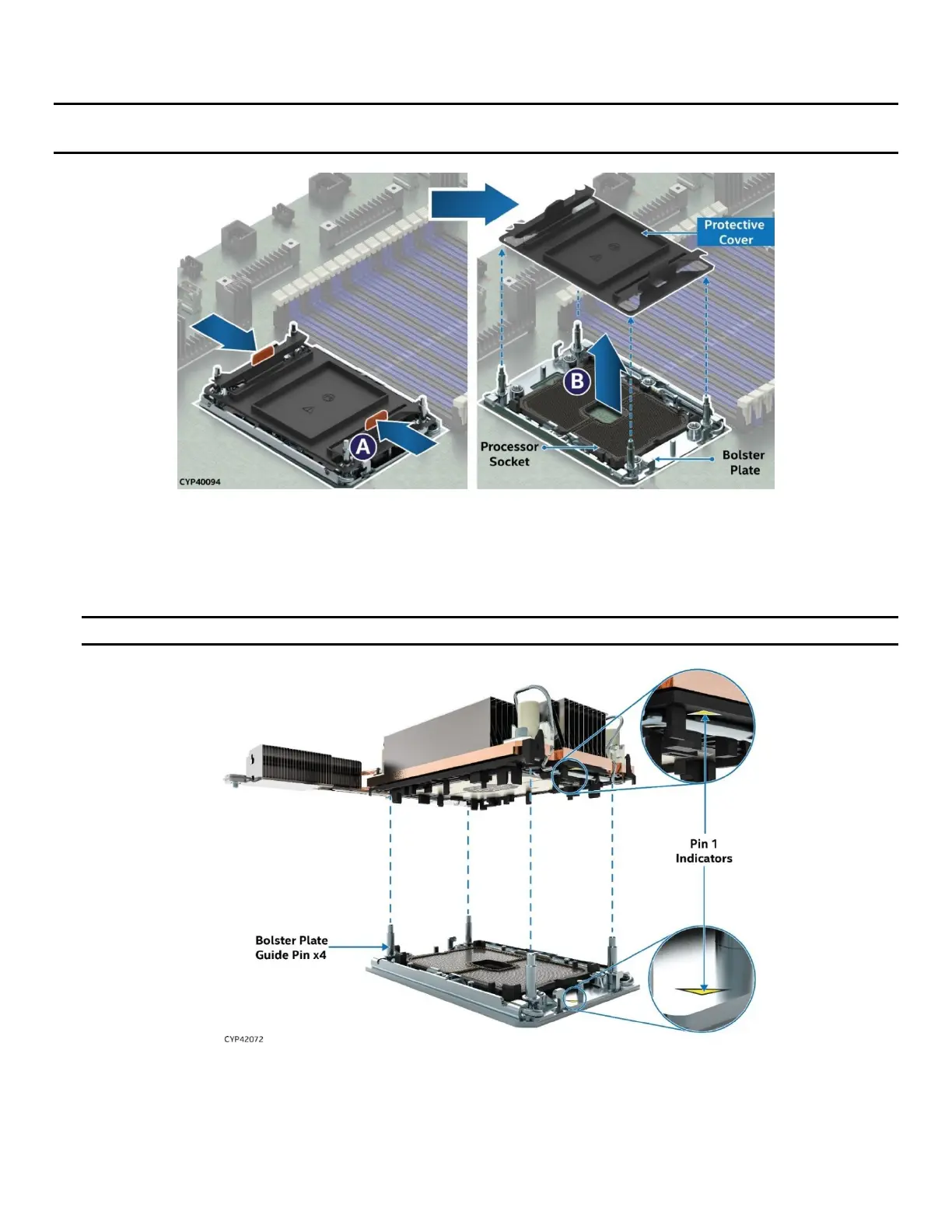

Figure 12. Socket Protective Cover Removal
1. Remove the protective cover by squeezing the finger grips (see Letter A) and pulling the cover up (see
Letter B).
2. Ensure the socket is free of damage or contamination before installing the PHM.
Caution: If debris is observed, blow it away gently. Do not remove it manually, such as with tweezers.
•
Figure 13. PHM Alignment with Socket Assembly
3. Align the pin 1 indicators of the processor carrier clip and processor with the pin 1 indicator on the
bolster plate.
