3.2.3 PCIe* Add-in Card Installation
The add-in card connected to the PCIe* interposer riser card or the riser card in Riser Slot #1 must be
oriented with component side up as shown in the following figure. The add-in card connected to the riser
card in Riser Slot #2 must be oriented with component side down as shown in Figure 29.

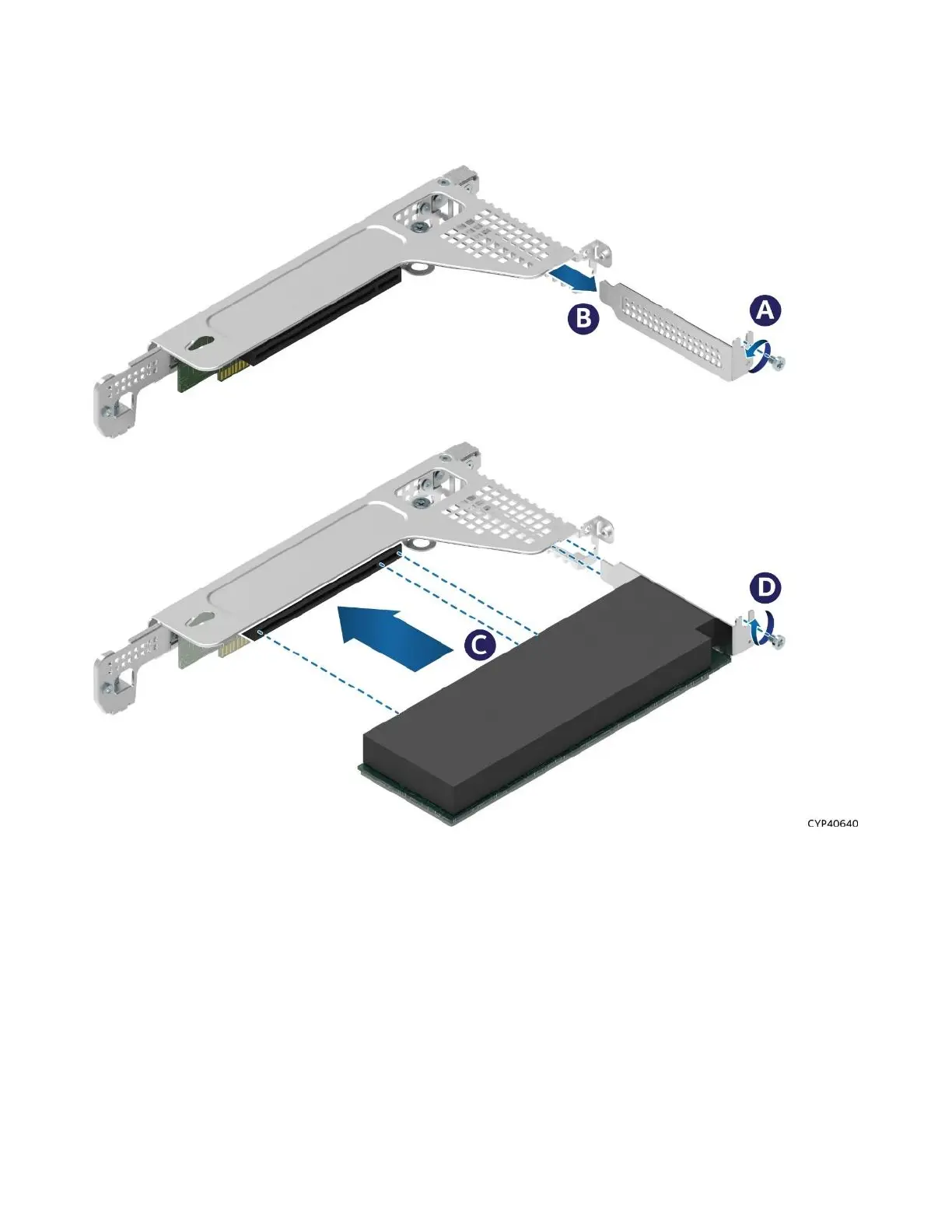

Figure 28. PCIe* Add-in Card Installation for Riser Card on Riser Slot #1 or PCIe* Interposer Riser Card
