3.6 Trusted Platform Module (TPM) Installation
This section provides instructions to install a Trusted Platform Module (TPM) in the system. Refer to the
Intel® Server M50CYP Family Configuration Guide for available options.
Required Tools and Supplies
• Anti-static wrist strap and conductive workbench pad (recommended)

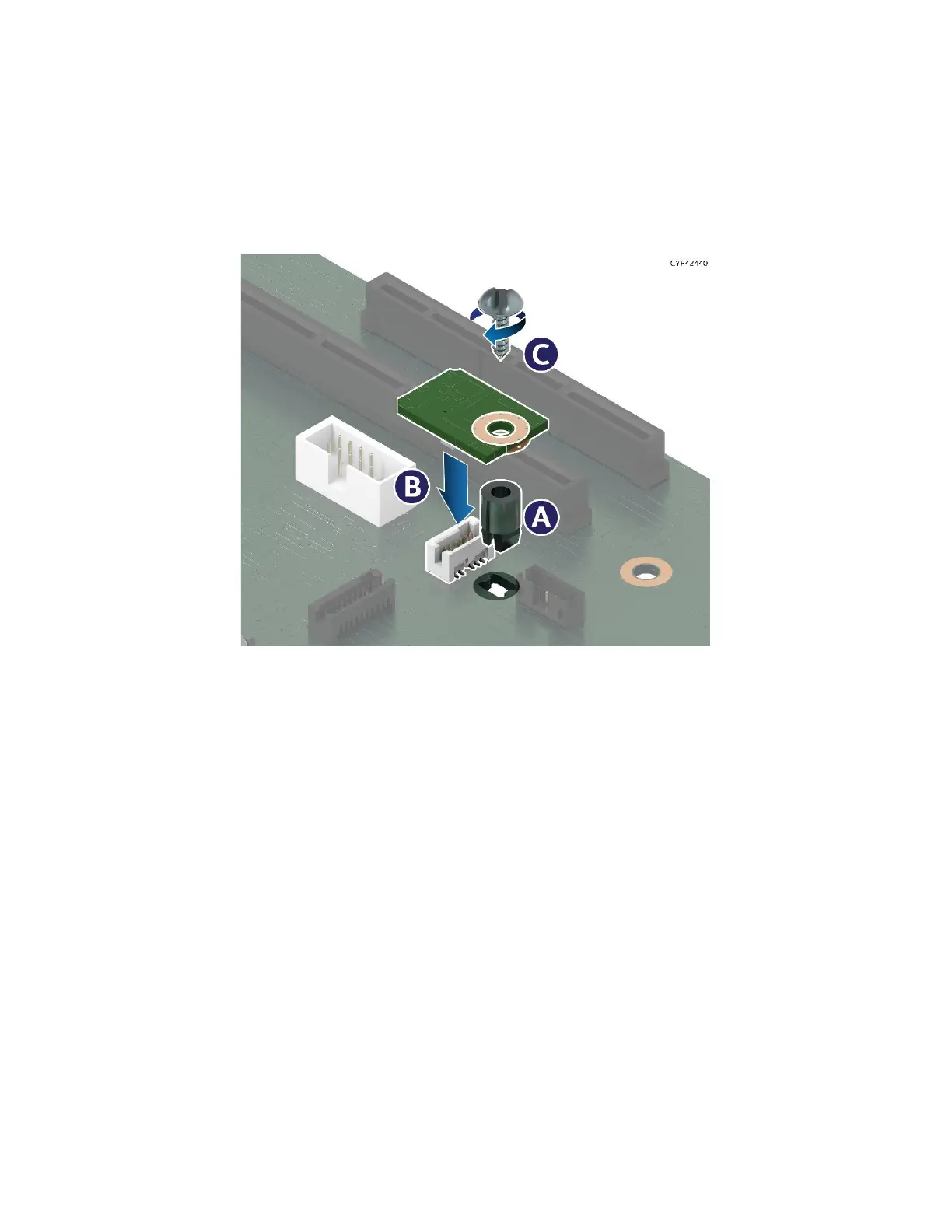

Figure 52. Trusted Platform Module (TPM) Installation
1. Power off the system and disconnect the power cable(s).
2. Remove the system top cover (see Section 3.1.1).
3. Locate the TPM module connector on the server board next to the PHM.
4. Insert the plastic stand-off into the server board mounting hole (see Letter A).
5. Place the TPM module over the connector and confirm the orientation of the module.
6. Press the module down onto the connector (see Better B).
7. Secure the TPM module to the stand-off with the fastener screw (see Letter C).
8. Reinstall the system top cover (see Section 3.1.2).
3.7 Intel® VROC 7.5 Key Installation / Removal
This section provides instructions to install an Intel® VROC Key in the system. Refer to the Intel® Server
M50CYP Family Configuration Guide for available options,
Required Tools and Supplies
• Anti-static wrist strap and conductive workbench pad (recommended)
For more information on the Intel® VROC features, capabilities, and NVMe* drive population rules, refer to
the Intel® Server System M50CYP1UR Family Technical Product Specification.
