Intel® Server System M50CYP1UR Family System Integration and Service Guide
95
Appendix B. Internal Cable Routing Channels
The system provides cable routing channels along each chassis sidewall. Cables should not be routed
directly in front of the system fans or through the center of the server board between the memory slots and
processor sockets.
Note: The system fan assembly must be removed before routing cables.

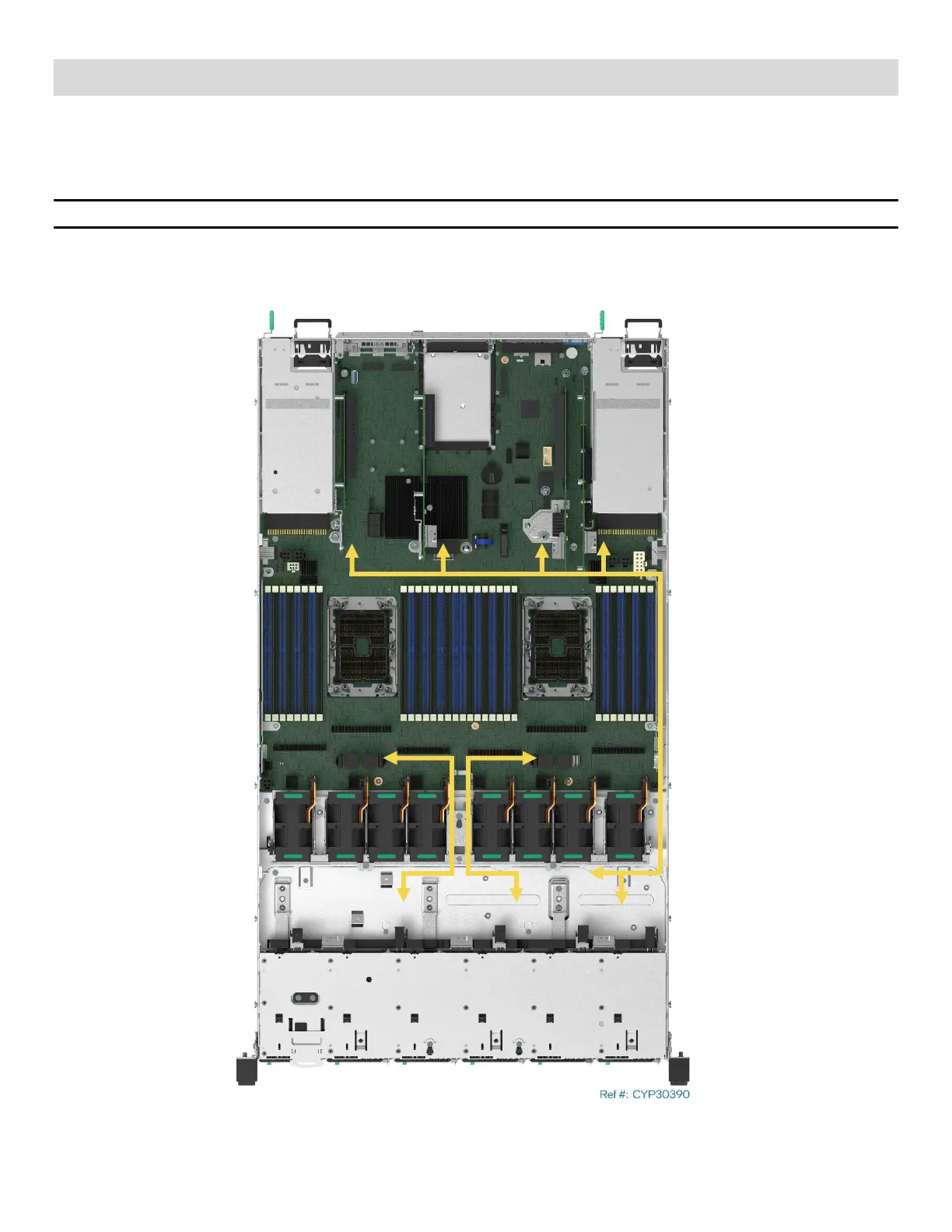

Figure 113. System Cable Routing Channels
