Intel® Server System M50CYP1UR Family System Integration and Service Guide
59
3.9.1 Intel® RMFBU Mounting Bracket Installation

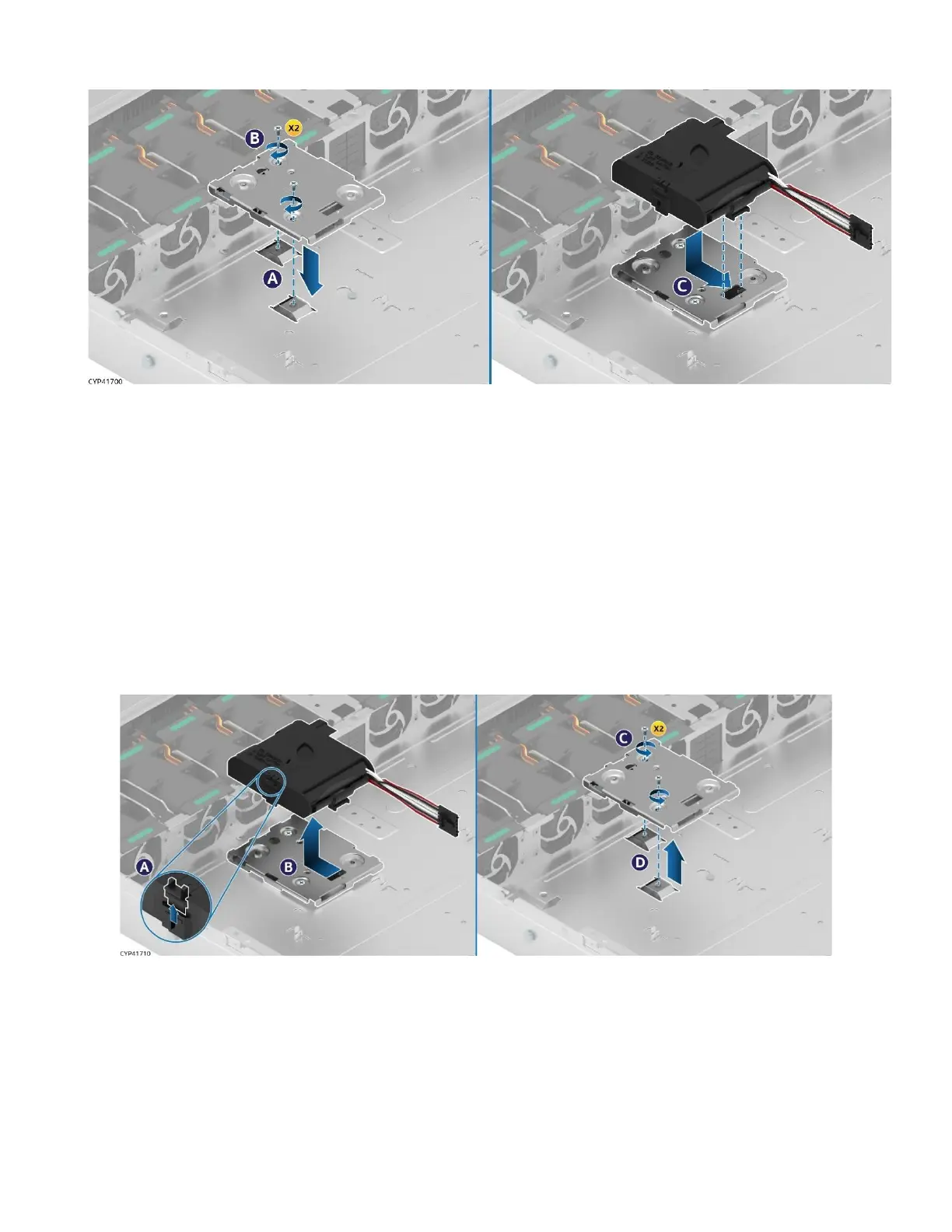

Figure 61. Intel® RMFBU Mounting Bracket Installation
1. Power off the system and disconnect the power cable(s).
2. Remove the system top cover (see Section 3.1.1).
3. Remove the cable clip, if installed, by unfastening the two screws holding the clip to the chassis.
4. Align the two screw holes of the RMFBU mounting bracket with the matching threaded holes on the base
of the chassis (see Letter A).
5. Secure the RMFBU mounting bracket to the chassis using two screws (see Letter B). Tighten to 5 in-lb.
6. Slide the RMFBU assembly in the direction as indicated on the mounting bracket (see Letter C) until the
latch locks in place.
7. Attach all the connectors as required.
8. Reinstall the system top cover (see Section 3.1.2).
3.9.2 Intel® RMFBU Mounting Bracket Removal
Figure 62. Intel® RMFBU Mounting Bracket Removal - Chassis
1. Remove the system top cover (see Section 3.1.1).
2. Disconnect all the connectors attached to the RMFBU.
3. Lift the latch up slightly to unlock the RMFBU assembly from the mounting bracket (see Letter A).
4. Slide the RMFBU assembly (see Letter B) in the direction as indicated on the top of the RMFBU mounting
bracket.
5. Unscrew the two screws on the RMFBU mounting bracket (see Letter C).
8. Pull the RMFBU mounting bracket from the chassis all the way out (see Letter D).
6. Reinstall the system top cover (see Section 3.1.2).
