Intel® Server System M50CYP1UR Family System Integration and Service Guide
24

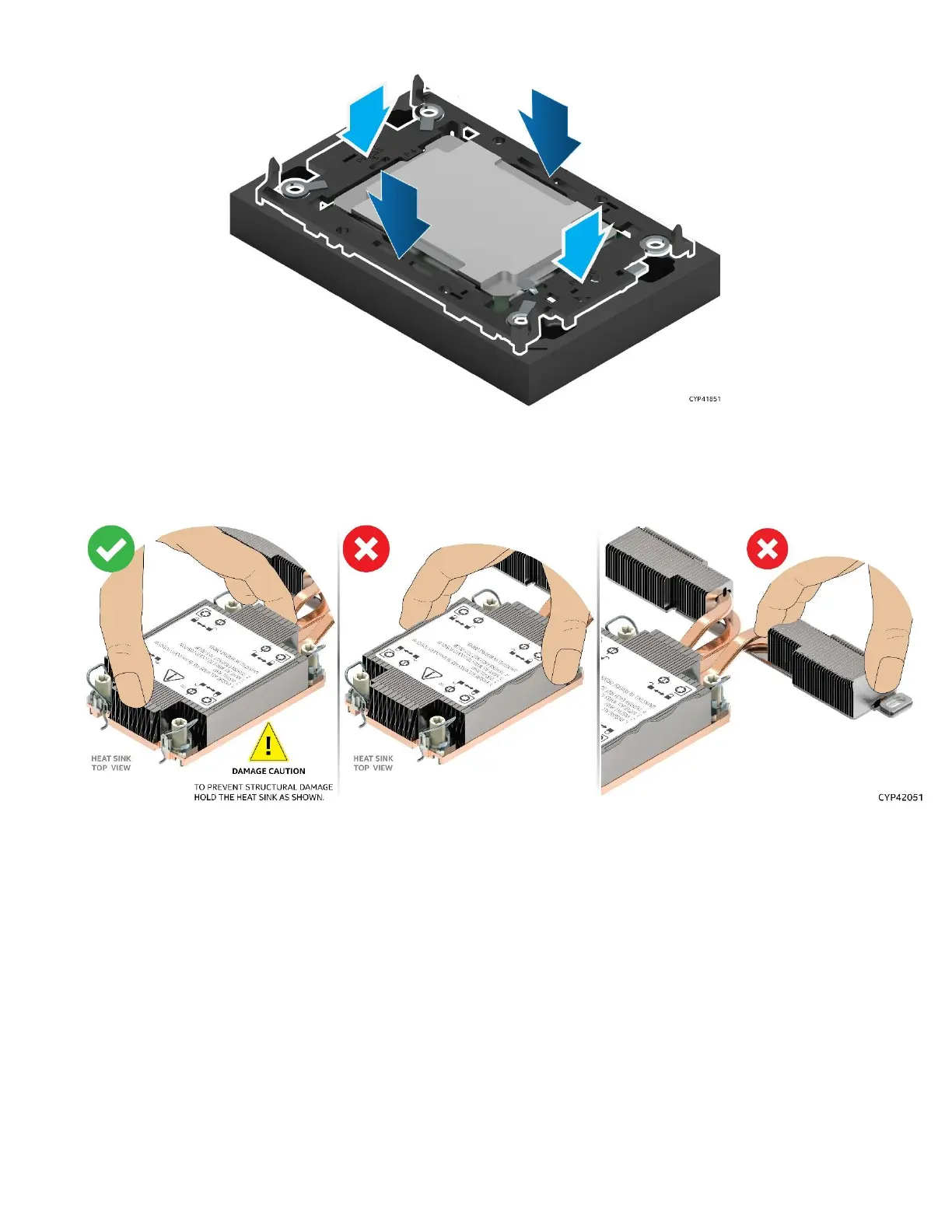

Figure 8. Installing Processor Carrier Clip onto Processor – Part 2
3. Gently press down on two opposite sides at a time of the processor carrier clip until it clicks.
•
Figure 9. Removing Heat Sink from its Packaging
4. Remove the heat sink from its packaging. To avoid damage to the heat sink, grasp it by its narrower top
and bottom edges.
