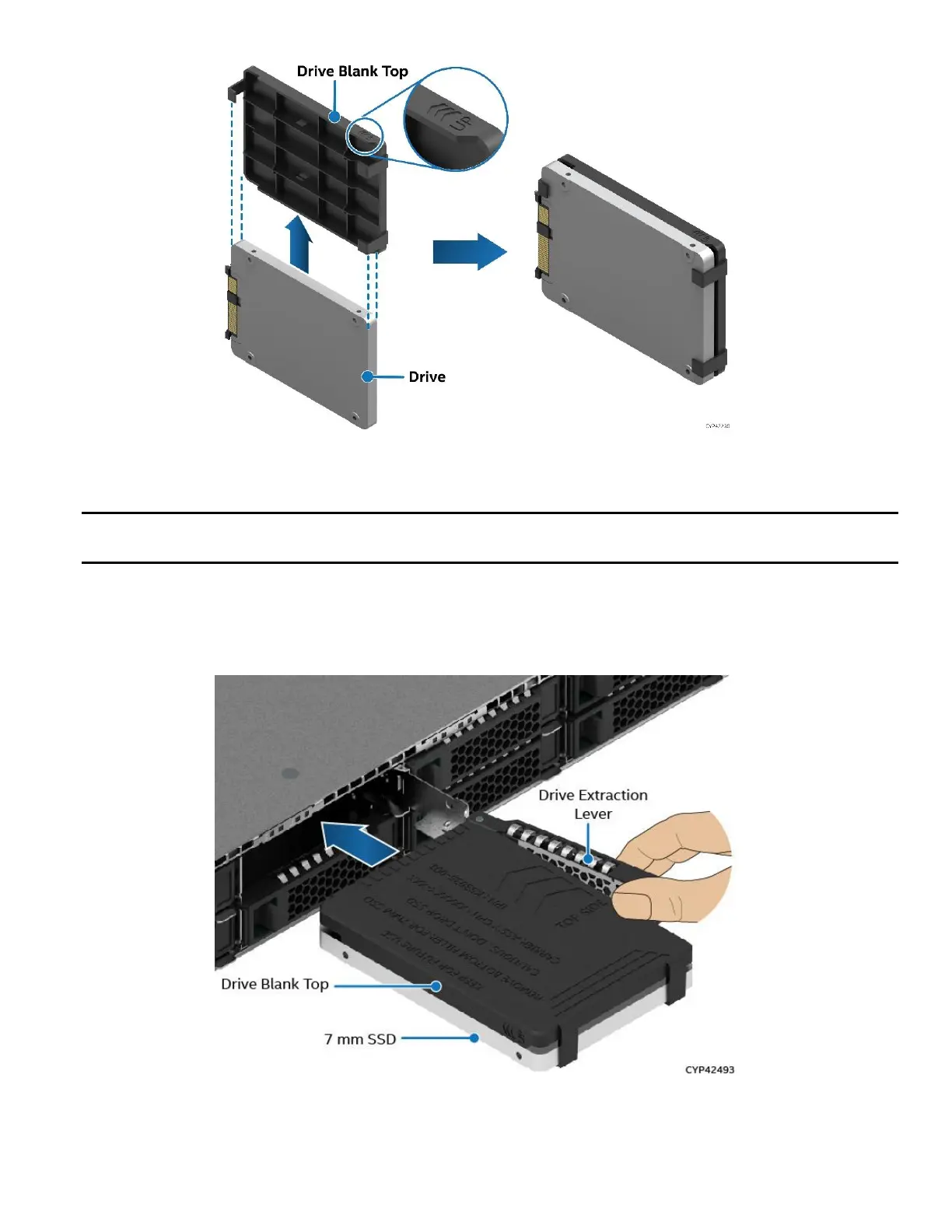

Figure 33. Attaching the Drive Blank to 7 mm SSD
4. Insert the 2.5-inch 7 mm SSD drive into the top part of the drive blank as shown in the above figure.
Important: To avoid damaging the SSD connector, insert the drive into the supplied blank in the direction
shown.
With the supplied blank attached to the drive, it can be installed as a regular 2.5” SSD drive.
3.3.2 2.5” SSD Drive Installation
Figure 34. 2.5” 7 mm Drive Outside Chassis, Ready for Installation
