Intel® Server System M50CYP1UR Family System Integration and Service Guide

5.4 Server Board Features

The following figure provides a general overview of the physical server board, identifying key feature and

component locations.

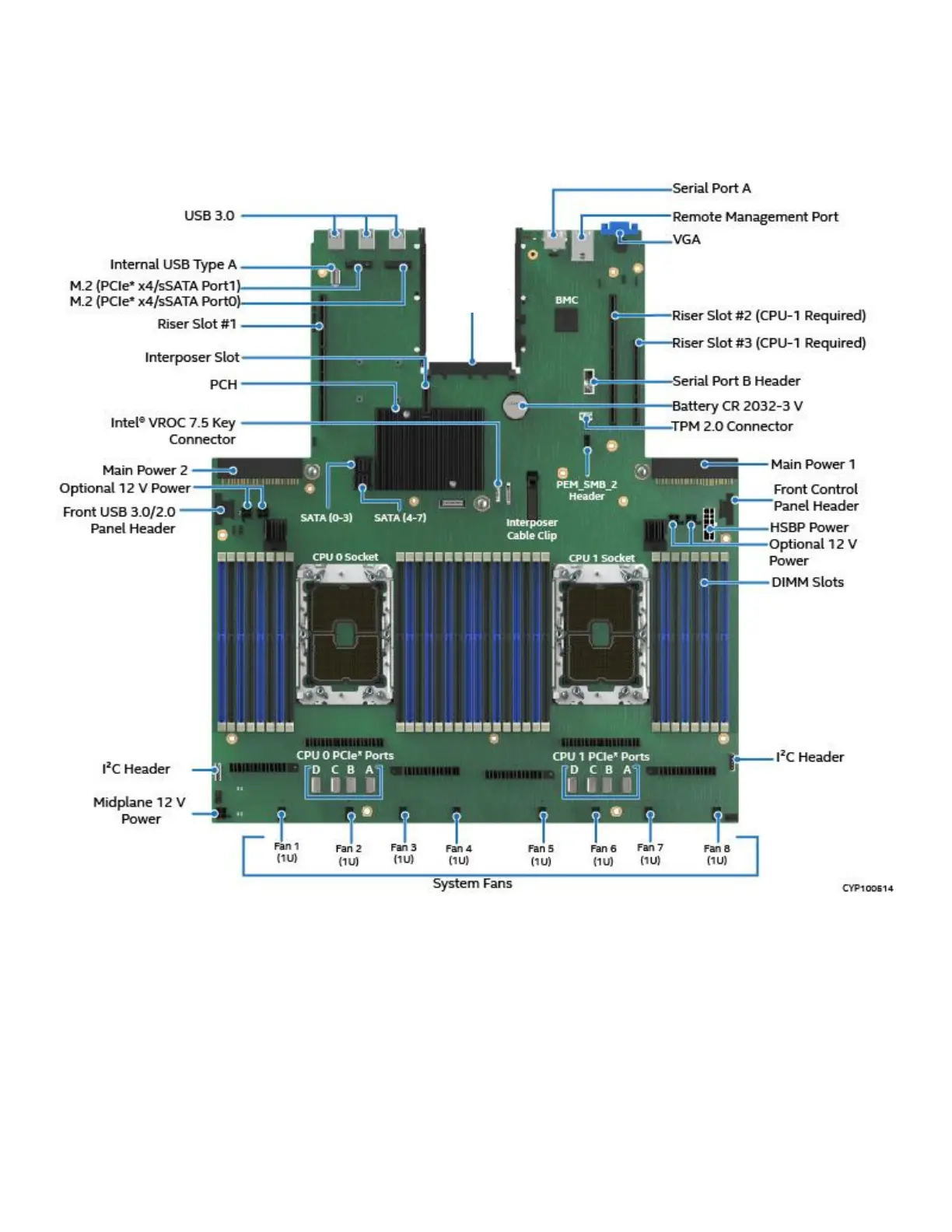

Figure 69. Intel® Server Board M50CYP2SB1U Component / Feature Identification
