Intel® Server System M50CYP1UR Family System Integration and Service Guide
65
The server board includes LEDs to identify system status and/or indicate a component fault. The following
figures identify the diagnostic LEDs and their location on the server board.

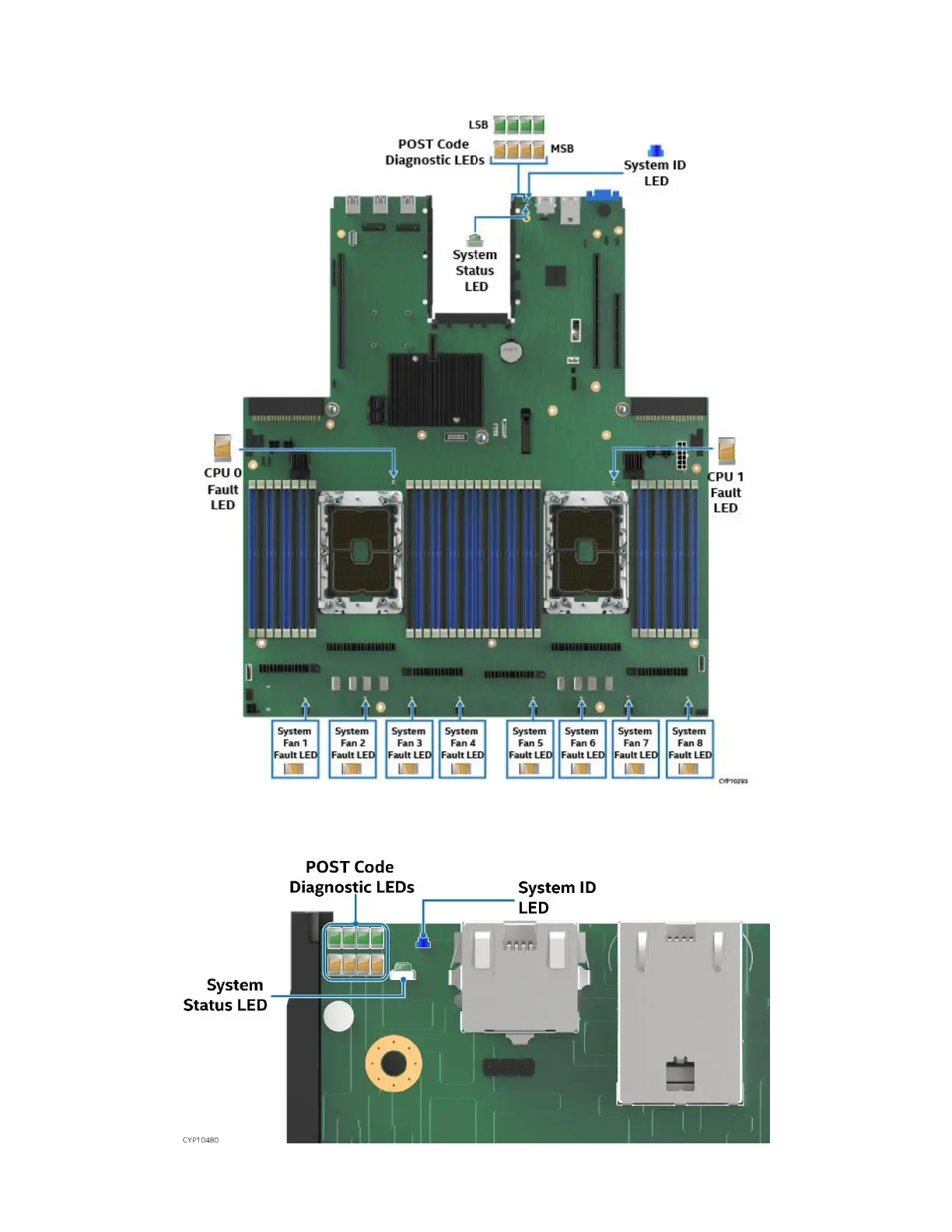

Figure 70. Intel® light-Guided Diagnostics – LED Identification
Figure 71. Exploded View of POST Code Diagnostic, System ID, and System Status LEDs Area
