Intel® Server System M50CYP1UR Family System Integration and Service Guide
44

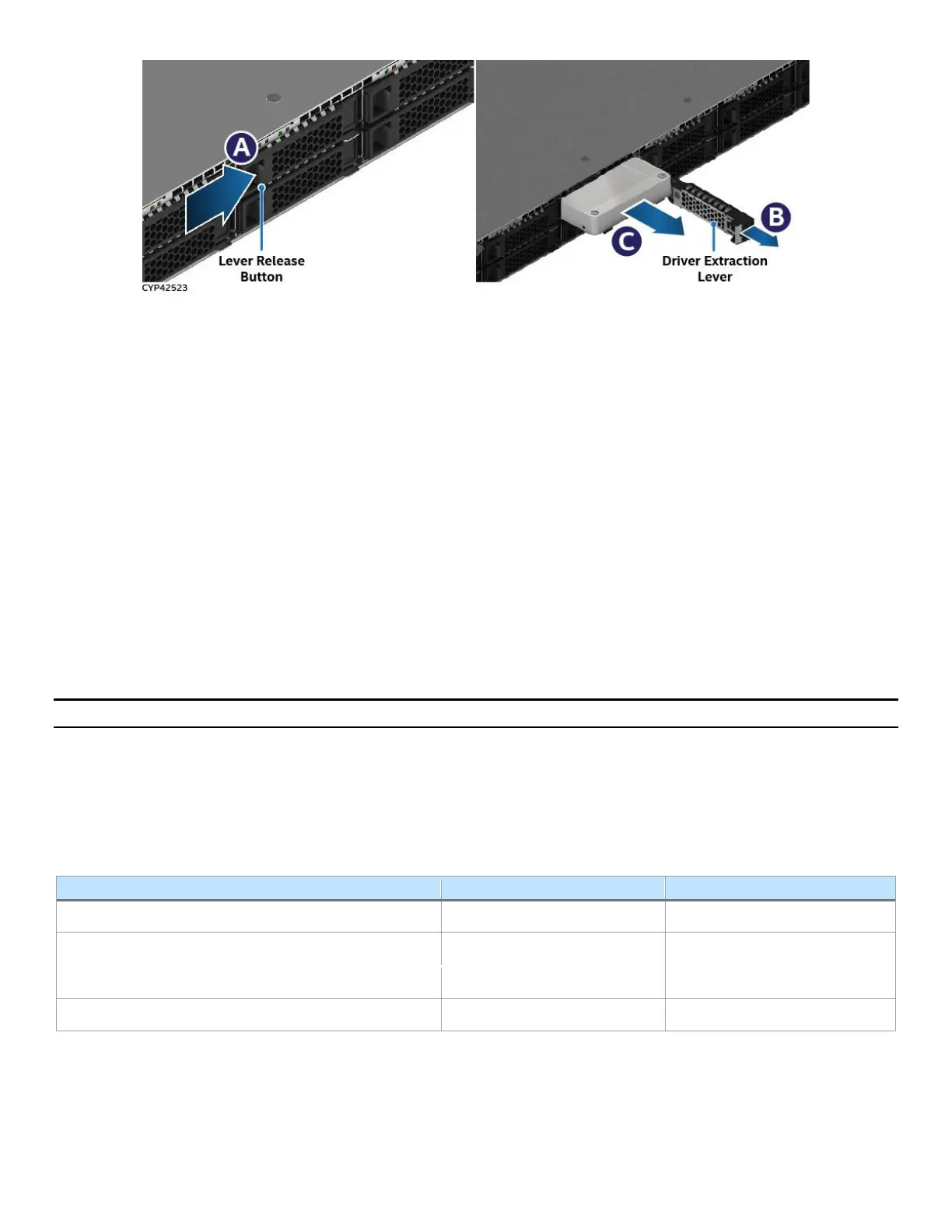

Figure 39. 2.5” 15 mm Drive Removal
1. Press the button on the drive extraction lever to release it (see Letter A).
2. Using the lever, pull the drive mounting rail part way out of the drive bay (see Letter B).
3. Remove the drive (or drive blank) from the drive mounting rail (see Letter C).
3.4 Ethernet Network Adapter for OCP* – Installation / Removal
This section provides instructions for OCP* adapter installation and removal from the chassis.
Required Tools and Supplies
• Anti-static wrist strap and conductive workbench pad (recommended)
• Phillips* head screwdriver #1
To broaden the standard onboard feature set, the server system supports the Intel® Ethernet Network
Adapters indicated in the following table. These adapters are compatible with the Open Compute Project*
(OCP*) 3.0 Specification.
Note: Only the Ethernet Network Adapters for OCP listed in the following table are supported.
All OCP* adapter types support one of three engagement mechanisms: pull tab, ejector latch, and internal
lock. The engagement mechanism refers to the mechanism required to install/remove the OCP* adapter.
Instructions for OCP* adapter installation and removal for all three configurations are provided in the
following subsections.
Table 2. Supported Intel® Ethernet Network Adapters for OCP*
