Intel® Server System M50CYP1UR Family System Integration and Service Guide
27
Caution: Processor socket pins are delicate and bend easily. Use extreme care when placing the PHM
onto the processor socket. Do not drop it.

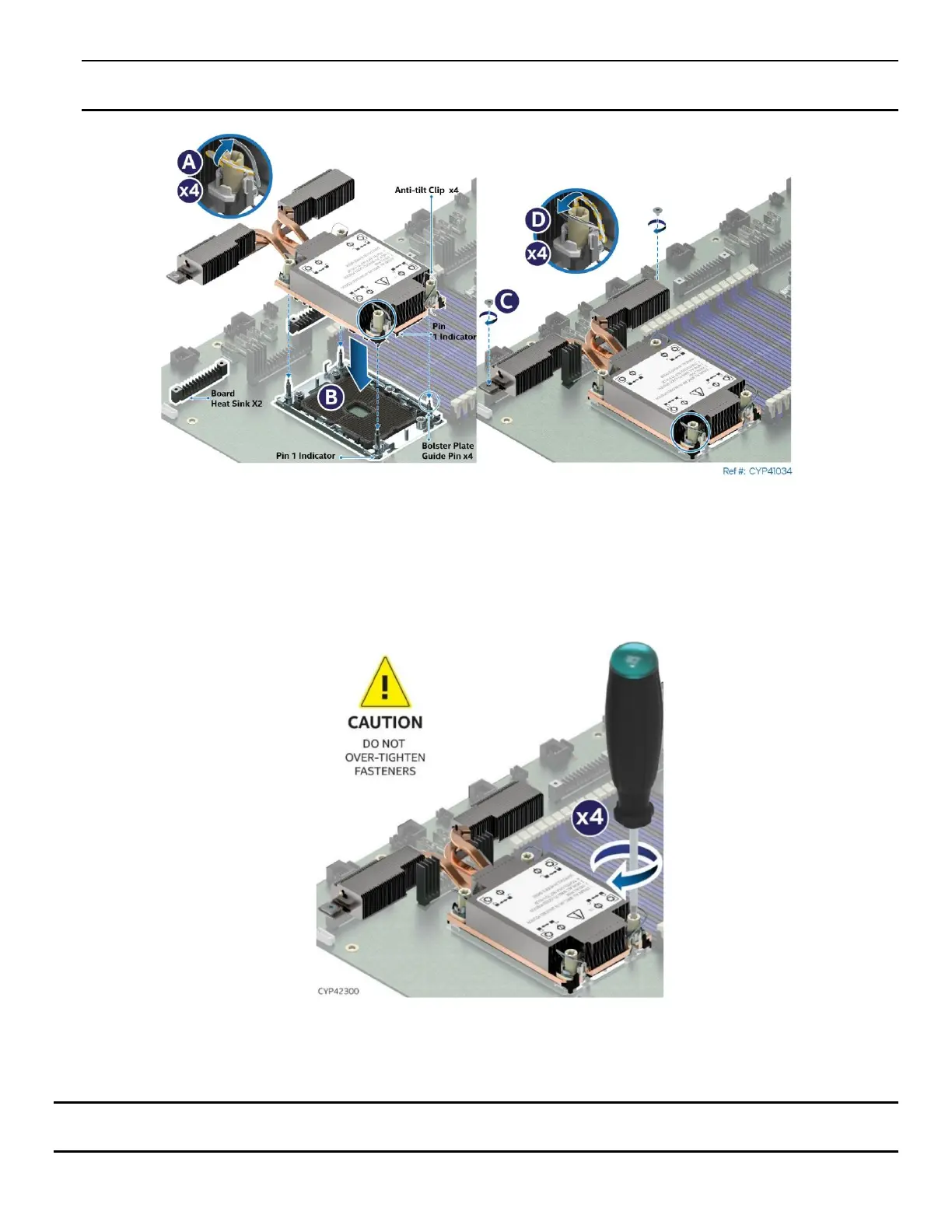

Figure 14. PHM Installation onto Server Board
4. Set all four anti-tilt wires on the heat sink to the inward position (see Letter A).
5. Holding the PHM horizontally, carefully lower it on to the bolster plate’s alignment pins (see Letter B).
6. Set all four anti-tilt wires on the heat sink to the outward position (see Letter D).
7. Using a Phillips #2 screwdriver, tighten the heat sink extension screws (see Letter C).
Figure 15. Tighten Heat Sink Extension Fasteners
8. Tighten the heat sink fasteners using a T30 Torx* screwdriver to 8 in-lb. No specific sequence is needed
for tightening.
Important: Do not install a processor heat sink on an empty socket. Also, only install a socket cover on an
empty socket.
