3.4.2 OCP* Adapter with Pull Tab Installation

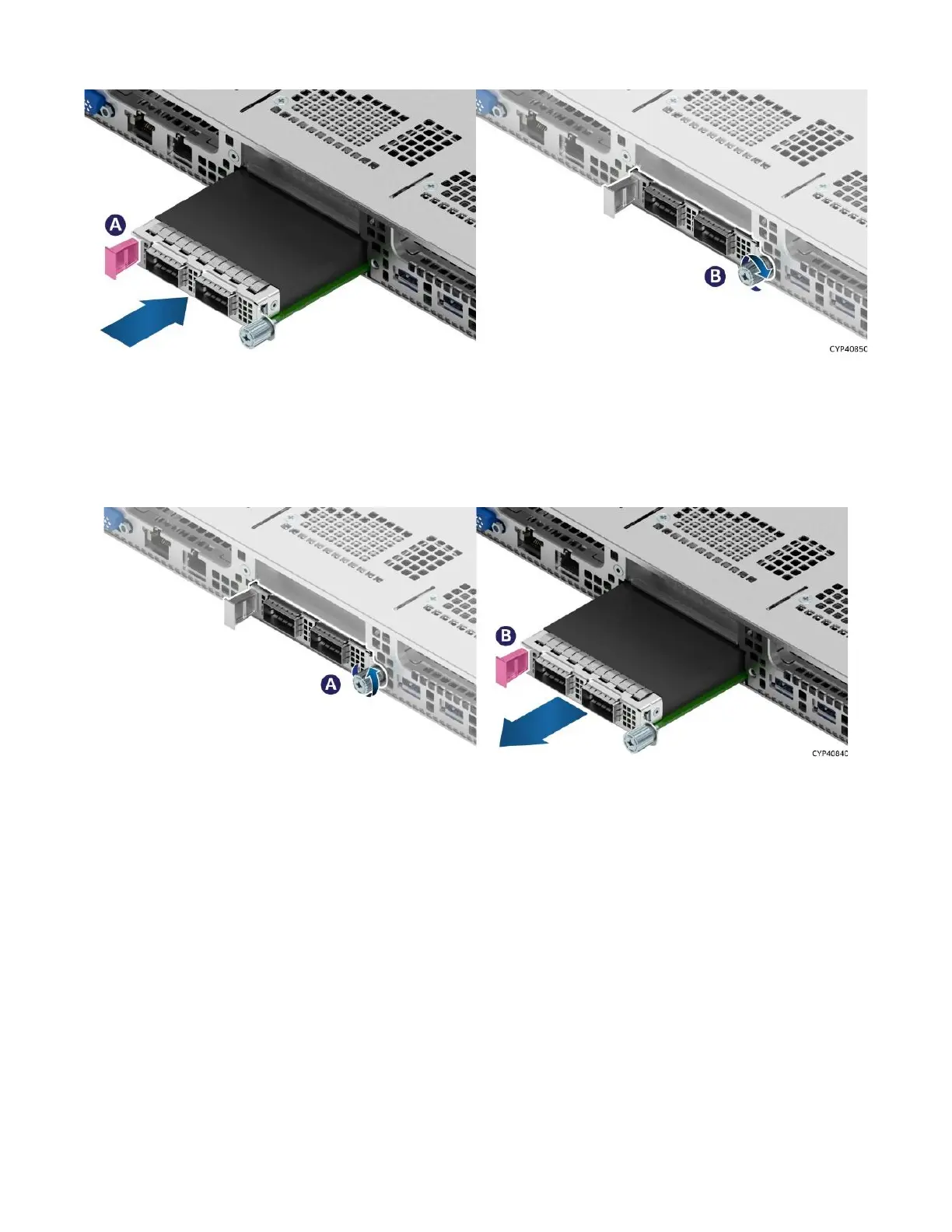

Figure 42. OCP* Adapter with Pull Tab Installation
1. Align the OCP* adapter with the open OCP* bay slot and slide forward until the connectors make secure
contact (see Letter A).
2. Tighten the thumb screw on the right side of the OCP* adapter (see Letter B).
3.4.3 OCP* Adapter with Pull Tab Removal
Figure 43. OCP* Adapter with Pull Tab Removal
1. Loosen the thumb screw on the right side of the OCP* adapter (see Letter A).
2. Pull the OCP* adapter out of the bay using the tab on the left side of the OCP* adapter (see Letter B).
