Intel® Server System M50CYP1UR Family System Integration and Service Guide
54
3.8.1 Intel® SAS Interposer Card Installation

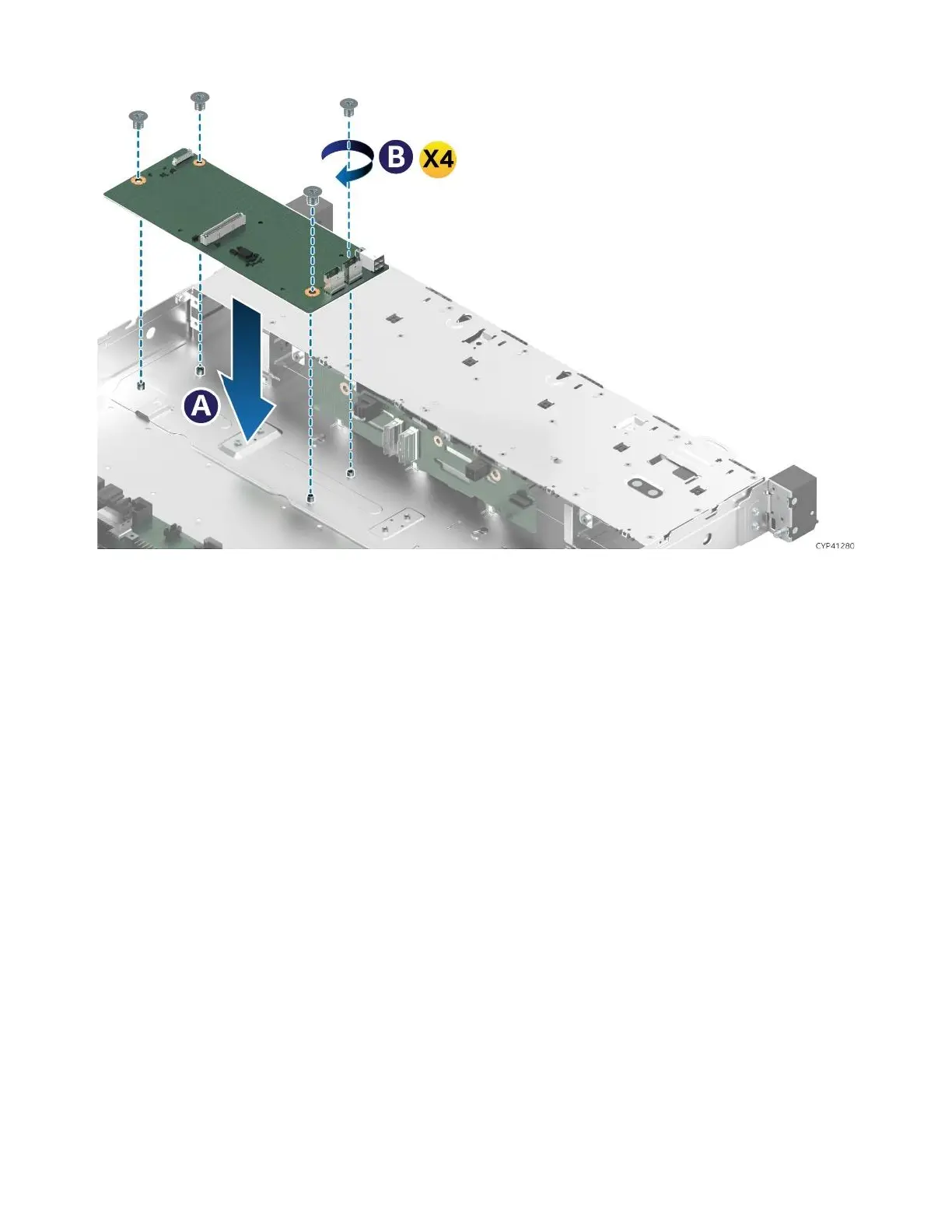

Figure 55. SAS Interposer Card Installation
1. Power off the system and disconnect the power cable(s).
2. Remove the system top cover (see Section 3.1.1).
3. Align the four screw holes of the SAS interposer card with the matching threaded holes on the base of
the chassis (see Letter A).
4. Secure the SAS interposer card to the chassis using four screws (see Letter B). Tighten to 5 in-lb.
5. Attach all the connectors as required.
6. If the RAID module needs to be installed, see Section 3.8.3.
7. Reinstall the system top cover (see Section 3.1.2).
