Intel® Server System M50CYP1UR Family System Integration and Service Guide
33

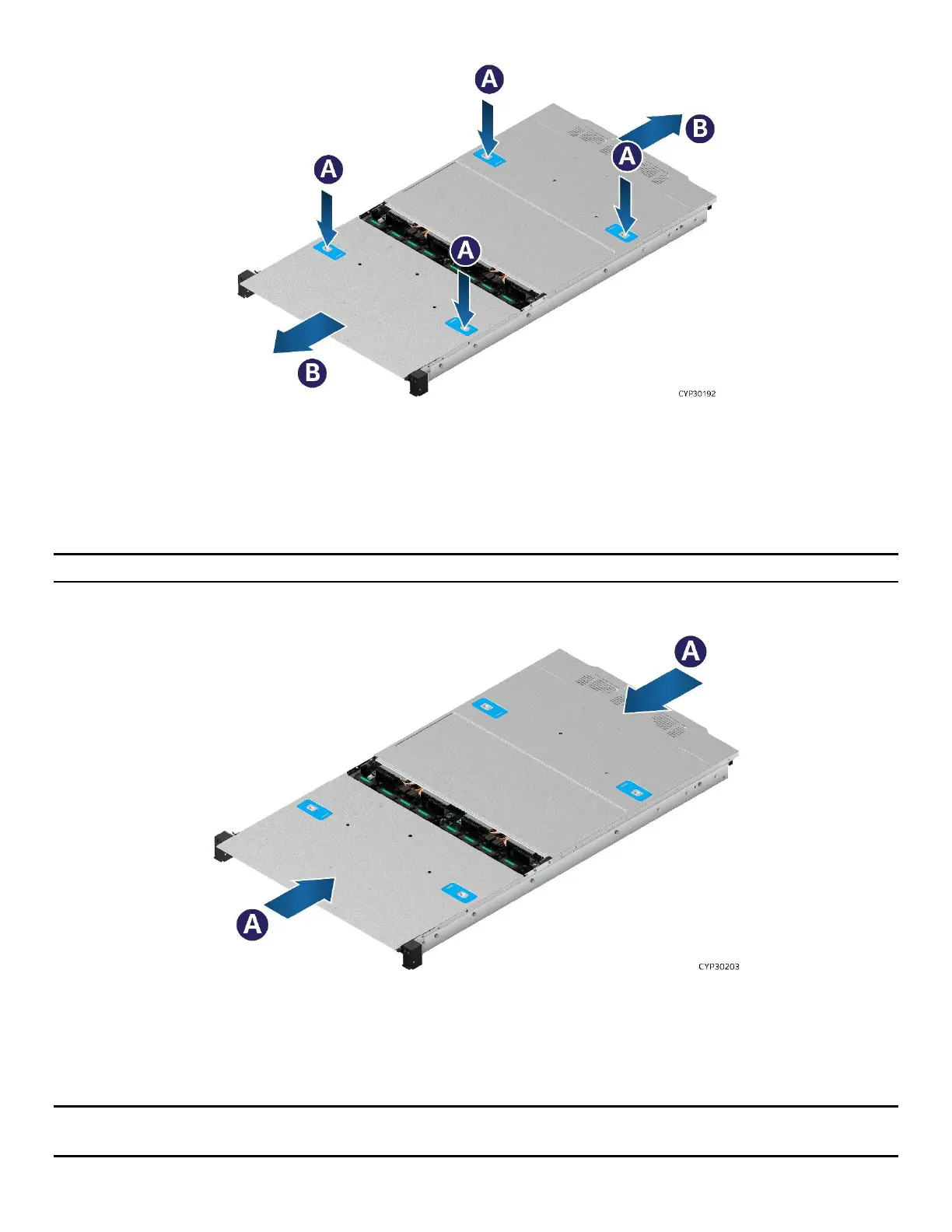

Figure 20. System Cover Removal
For each top cover panel:
1. While pushing down on both the left and right buttons of the given top panel (see Letter A), slide the top
cover panel towards the front (front panel) or back (back panel) of the chassis (see Letter B).
2. Carefully lift the top cover panel up and away from the chassis.
Note: Each top cover panel can slide along the chassis base for 10 mm and then needs to be lifted.
3.1.2 System Cover Installation
Figure 21. System Cover Installation
For each top cover panel:
1. Carefully align and set the top cover panel on top of the chassis. Then, slide it inwards until it locks into
place (see Letter A).
Shipping Note: When transporting the server system, Intel recommends installing the four top cover screws
before shipping.
