Intel® Server System M50CYP1UR Family System Integration and Service Guide
34
3.2 Riser Card Assembly / Add-in Card Assembly Installation / Removal
The Intel® Server System M50CYP1UR family supports various riser card options. Depending on the system
configuration, your system may or may not come pre-configured with riser card options installed. This
section provides assembly and installation instructions for systems that require riser card installation.
Available Riser Card options:
Riser Slot #1 supports the following Intel Riser Card option:
• One PCIe* slot Riser card supporting (one) – LP/HL, single-width slot (x16 electrical, x16 mechanical)
iPC – CYP1URISER1STD
Riser Slot #2 supports the following Intel Riser Card options:
• One PCIe* slot Riser card supporting (one) – LP/HL, single-width slot (x16 electrical, x16 mechanical)
iPC – CYP1URISER2STD
• NVMe* Riser card supporting (one) – LP/HL, single-width slot (x16 electrical, x16 mechanical) + (one) -
x8 PCIe* NVMe* SlimSAS* connector with re-timer. Included in iPC – CYP1URISER2KIT
PCIe* Interposer Riser Slot (requires PCIe* NVMe* riser card in Riser Slot #2):
• PCIe* Interposer Riser Slot supports the PCIe* interposer riser card as an accessory option. This card
supports one PCIe* add-in card (x8 electrical, x8 mechanical). The PCIe* interposer riser card can be
used only when it is connected to the PCIe* NVMe* riser card in Riser Slot #2. The interposer card
uses x8 PCIe* data lanes routed from the PCIe* SlimSAS* connector on the PCIe* NVMe* riser card.
The Intel accessory kit includes the PCIe* interposer riser card, PCIe* NVMe* riser card, and PCIe*
interposer cable. iPC – CYP1URISER2KIT
Riser Slot #3 supports the following Intel Riser Card option:
• NVMe* riser card supporting (two) – PCIe* NVMe* SlimSAS* connectors iPC – CYPRISER3RTM
All system configurations include the mounting brackets for each supported riser card option.

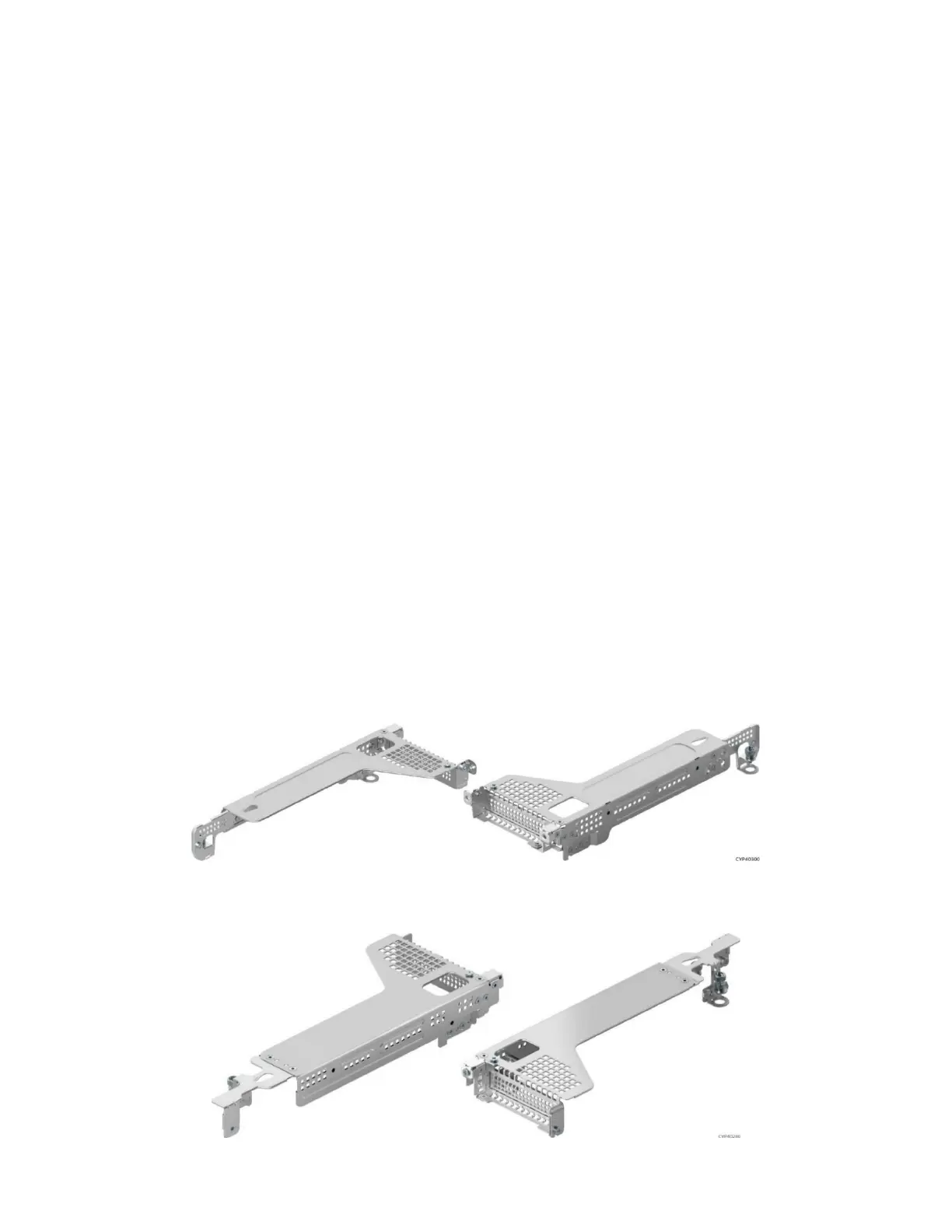

Figure 22. Bracket for Riser Card on Riser Slot #1– Two Views
Figure 23. Bracket for Riser Card on Riser Slot #2– Two Views
