2.5 Power Supply Module Installation
Required Tools and Supplies
• Anti-static wrist strap and conductive workbench pad (recommended)
2.5.1 Power Supply Module Installation

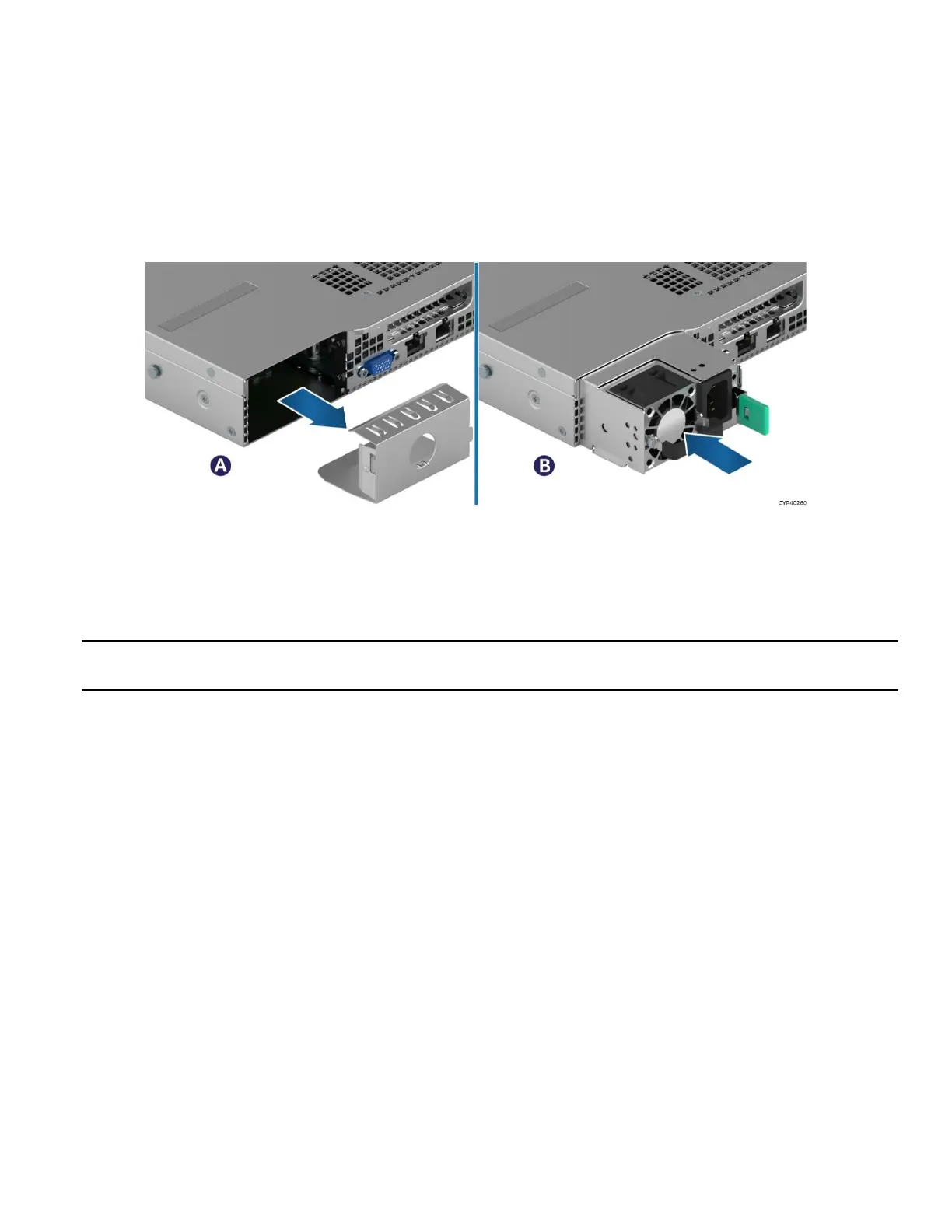

Figure 18. Power Supply Installation
1. If present, remove the insert from the power supply bay (see Letter A).
2. Slide the power supply into the power supply bay until it clicks and locks in place (see Letter B).
Note: A single power supply configuration requires that the power supply bay insert be installed on the
unused bay when the system is operational.
3. (If using the second power supply) Remove the insert from the second power supply bay.
4. (If using the second power supply) Slide the power supply into the second power supply bay until it clicks
and locks in place.
