Intel® Server System M50CYP1UR Family System Integration and Service Guide
29

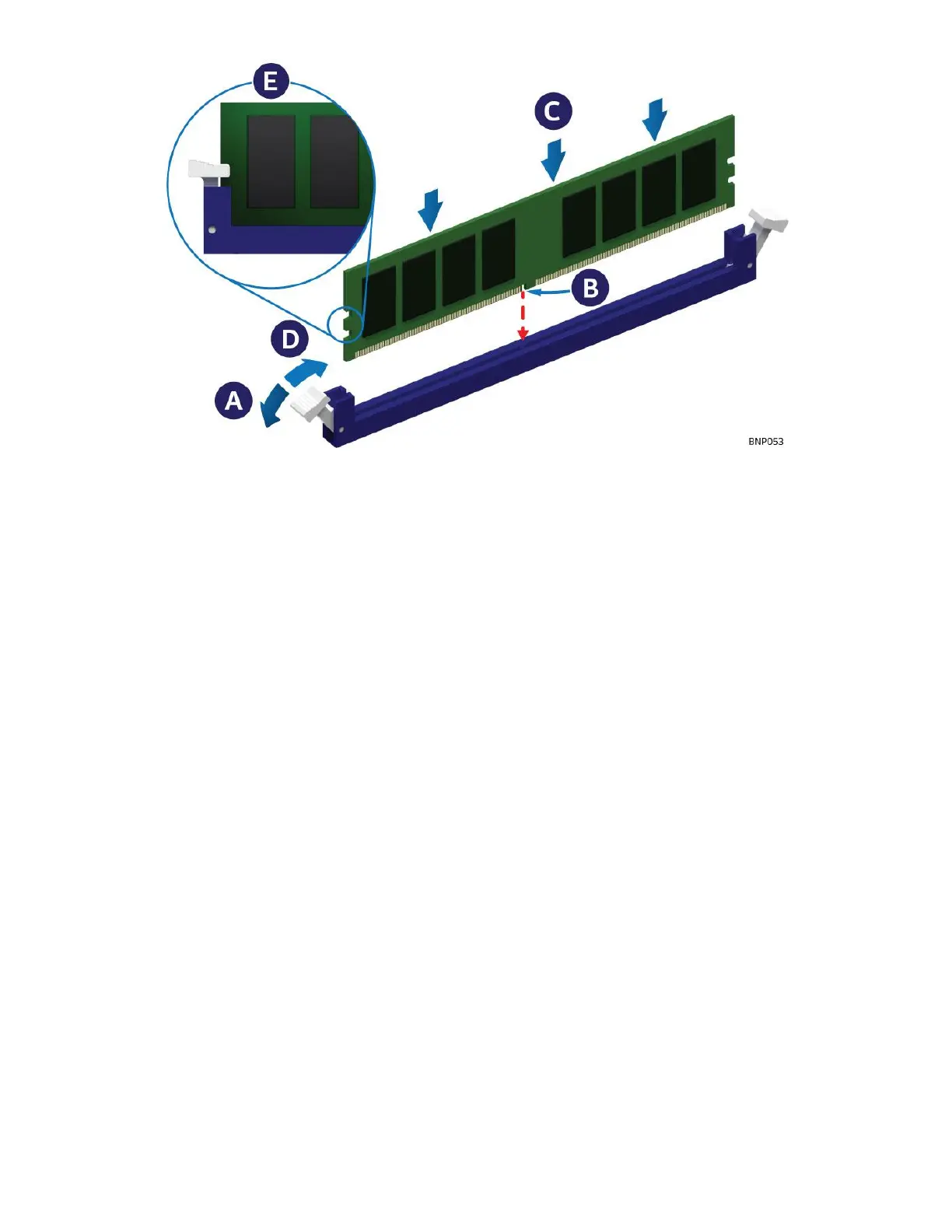

Figure 17. Memory Module Installation
2. Locate the DIMM slot for installation.
3. Ensure that the DIMM ejection tabs at both ends of the DIMM slot are pushed outward to the open
position (see Letter A).
4. Carefully unpack the replacement Memory module, taking care to only handle the device by its outer
edges.
5. Align the notch at the bottom edge of the Memory module with the key in the DIMM slot (see Letter B).
6. Insert the Memory module into the slot (see Letter C). Push down on the Memory module until the
ejection tabs snap into place (see Letter D).
7. Ensure that the ejection tabs are firmly in place (see Letter E).
