Intel® Server System M50CYP1UR Family System Integration and Service Guide
66

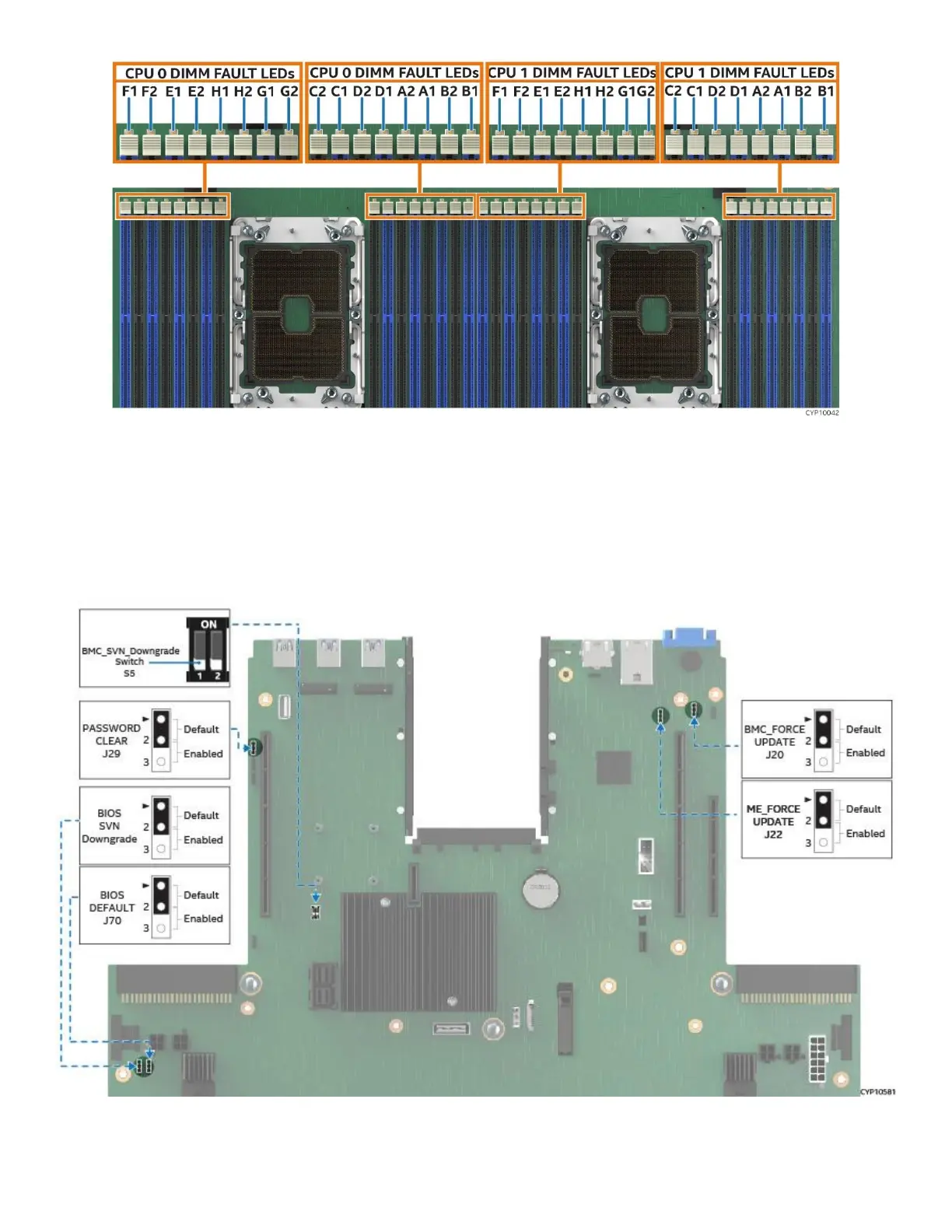

Figure 72. Intel® light-Guided Diagnostics - DIMM Fault LEDs
5.5 System Configuration and Recovery Jumpers
The server board includes several jumper blocks that can be used to configure, protect, or recover specific
features of the server board. The following figure identifies the location of each jumper block on the server
board. For more information on the jumpers, see the Intel® Server Board M50CYP2SB Family Technical
Product Specification (TPS).
Figure 73. Reset and Recovery Jumper Block Locations
